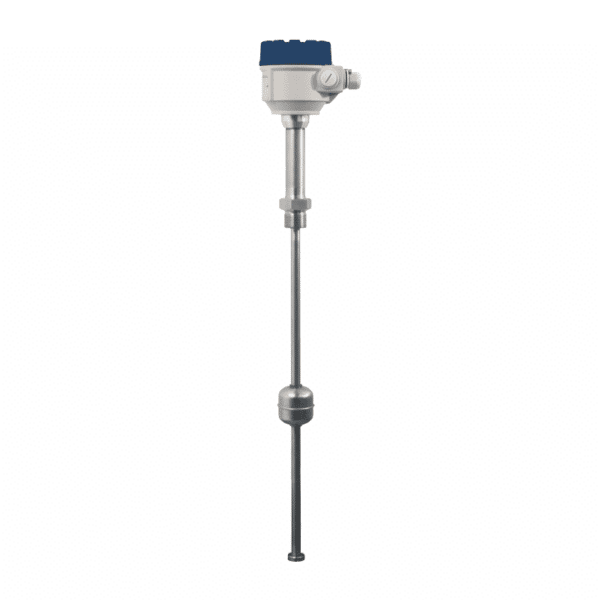

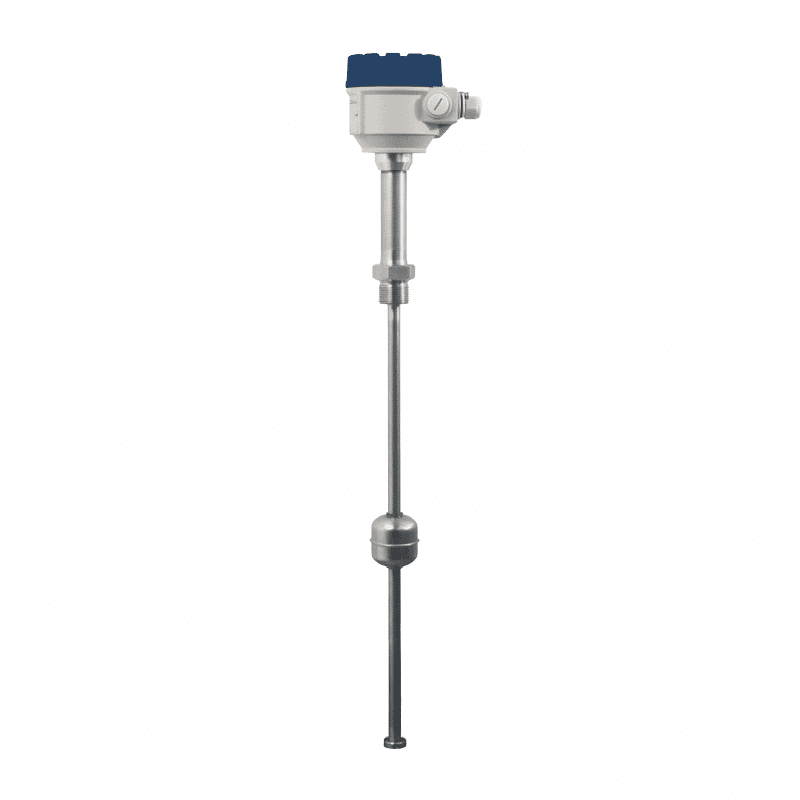

NIVOTRACK – Magnetostrictive Level Transmitter

2-wire compact magnetostrictive level transmitter for liquids with stainless steel rod probe with 0.1mm or 1mm resolution.

Main Features:

  • 0.1 mm or 1 mm resolution
  • Insertion length maximum 15 m
  • OIML R 85 international certification
  • Compact type
  • Rigid guide tube
  • Plastic coated version for chemicals
  • 4–20mA and HART® output (available on request)
  • Graphic display
  • 99 point linearization table
  • Measurement optimisation
  • Volume measurement
  • ATEX certified (available on request)
Brand: NIVELCO
Available on request
Request a quote
Scroll down for product range

NIVOTRACK magnetostrictive level transmitters are an ideal solution for high accuracy measurement of clean fluids. Its high precision renders the NIVOTRACK suitable for custody transfer measurement of liquids such as fuels, solvents, alcohol derivatives etc. Units with flexible tube do not only make this accurate measurement for higher tanks possible, but offer a more convenient way for shipment and installation.

Plastic coated versions of the NIVOTRACK substantially expand the field of application by a wide range of aggressive materials. Integrating the transmitter into a process control system is easy thanks to the intelligent signal processing and communication software as well as the wide of range of accessories offered.

TYPEMTA-500
Measured process valueLiquid level, distance, volume
Nominal length (L)0.5 m – 4.5 m
Material of the tube1.4571 (316Ti) stainless steel
Max process pressure2.5 MPa (25 bar)
Medium temperature-40 °C ... +90 °C, see: temperature diagram
Standard float diameter / materialØ53.5 x 60 mm cylindrical / 1.4404 (316L)
Medium densityDepends on the applied float
Material of wetted partsStainless steel: 1.4571, 1.4404 (316 Ti, 316 L)
Ambient temperature-40 ºC … +70 ºC, plastic housing: -25 ºC … +70 ºC,
with display: -25 ºC … +70 ºC, Ex type: see temperature diagram in the user's manual
Analogue Output4 – 20 mA (limit values: 3.9 – 20.5 mA)
Digital OutputDigital 4 – 20 mA + HART®
Display OutputDisplay SAP-300 graphic display
Damping timeAdjustable 0 s – 99 s
Error indication22 mA or 3.8 mA or holding
Output loadRt = (Ut-12.5V) / 0.02 A, Ut = power supply voltage
Power supply12.5 V – 36 V DC
Electrical protectionClass III
Ingress protectionIP67
Process connection As per order code
Electric connection2x M20 x1.5 plastic cable glands for 6 – 12 mm cable +
2x NPT ½" internal thread for cable protective pipe terminal block for 0.5 – 1.5mm2
wire cross section Ex type: see "Special data for Ex certified models” table
HousingPlastic (PBT) or paint coated aluminum or stainless steel
Mass1.7 kg + m. probe: 0.6 kg/m

Product Range

Product Range:
CodeSpecificationsPriceQuantity
MTA-505-1

1″ BSP, Aluminium (paint coated), 0.5m probe, 0.1mm Resolution

 $1,780.00
MTA-505-2

1″ BSP, Aluminium (paint coated), 0.5m probe, 1mm Resolution

 $1,460.00
MTA-605-1

1″ BSP, Plastic, PBT, 0.5m probe, 0.1mm Resolution

 $1,692.00
MTA-605-2

1″ BSP, Plastic, PBT, 0.5m probe, 1mm Resolution

 $1,422.00
SAP-300

Graphic Plug-in display module

 $174.00

Note: Other ranges and models are available on request. Please contact us.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Nivelco products. Please contact the Nivelco distributor in your country if you require sales or service support for Nivelco products.
