Home | Products | Signal Transmitters & Conditioners | 2 Wire Transmitters - Loop Powered | Universal Input | dTRANS T07

dTRANS T07 – Two-channel temperature transmitter with HART®/Ex/SIL

for installation into terminal head form B and for installation on DIN rail

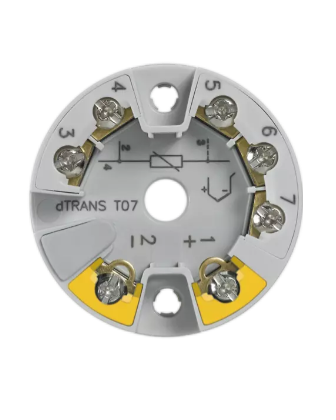

dTRANS T07 In Head Two-wire Temperature Transmitter with HART, EX

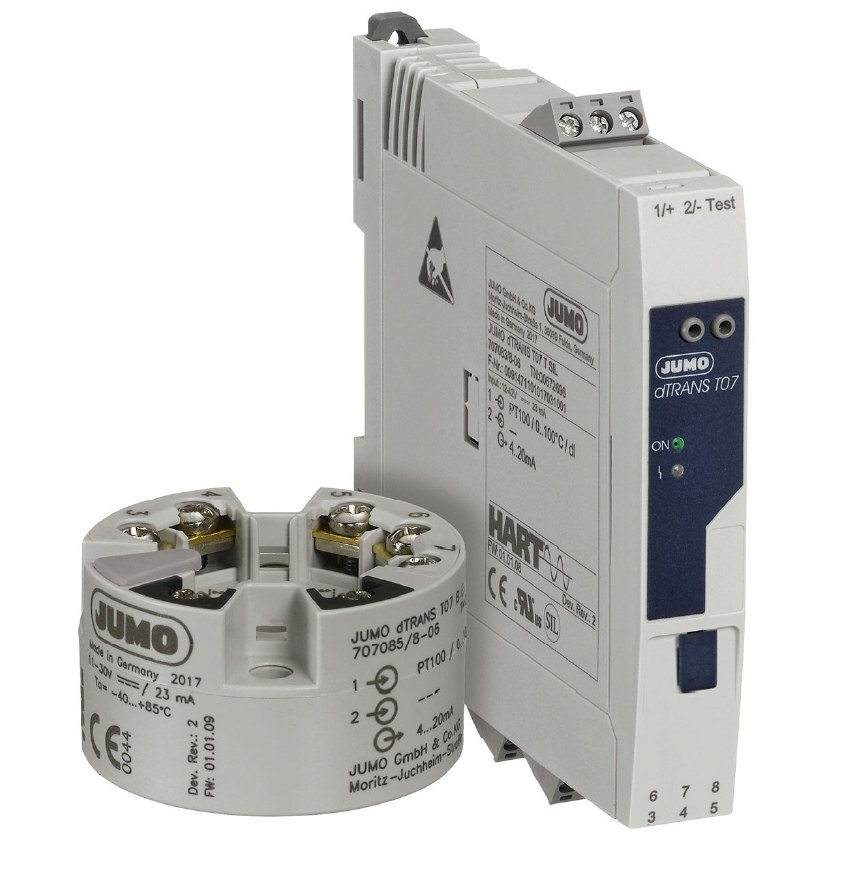

JUMO dTRANS T07 – Two-channel temperature transmitter with HART, Ex, SIL – 707080

dTRANS T07 Features:

  • Two universal measurement inputs (RTD, TC, Ω, mV)
  • High degree of accuracy (0.1 K with Pt100 sensor)
  • Output 4 to 20 mA (single channel, loop powered)
  • Two enclosure versions (B-head or DIN rail)
  • HART 7 protocol with extension for “secure HART”
  • SIL 2/3 hardware/software according to IEC 61508
  • Reliable measurement operation through sensor monitoring and device hardware error detection
  • Optional plug-on display BD7 for B-head device version
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

Brief description

The JUMO dTRANS T07 device series is a two-channel temperature transmitter with HART communication. The devices are available in 2 versions: for installation in a B-head or for DIN rail mounting. The variants with Ex and SIL approval (IEC 61508) for SIL 2/3 (hardware/software) enable secure use in demanding process applications.

The configurable transmitters transmit converted signals from RTD temperature probes and thermocouples (TC) as well as from resistor and voltage sensors to the galvanically isolated 4 to 20 mA current output. Internal sensor monitoring functions and device error detection enable a high degree of measuring point availability.

The optional plug-on display BD7 can be used to display the current measured value on the B head variant.

The JUMO dTRANS T07 device series is tailor-made for all industries like chemicals, oil, gas, and power plants & energy, as well all others in which safe and reliable temperature measurements are required.

dTRANS T07 Specifications
Galvanic isolation 2 kV
Installation In terminal head form B or on mounting rail/DIN rail 35 × 7.5 mm
RTD probe input Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Cu50, Cu100, two-wire/three-wire/four-wire circuit
Thermocouple input A,B,C,D,E,J,K,L,N,R,S,T,U
Ambient temperature -40 to +85 °C
Output 4 to 20 mA (invertible)
Voltage supply DC 11 to 42 V (without SIL and Ex approval)
Calibration accuracy ± 0.05 %
Configuration Via HART® modem with JUMO DTM or HART® communicator with JUMO DD
Approval ATEX/IECEx, SIL, cULus
NAMUR compliant NE 43 and NE 89

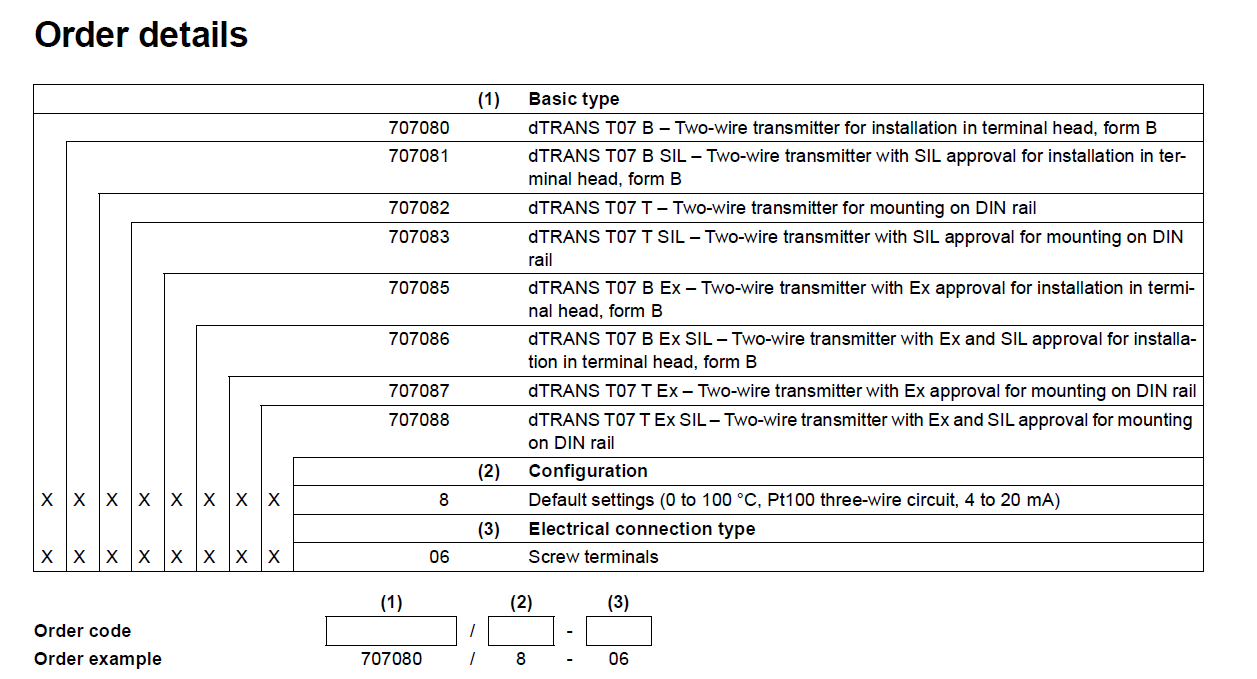

Ordering Information dTRANS T07

  • JUMO dTRANS T07 - Two channel Temperature Transmitter with HART / EX - Datasheet 690.95 KB
  • JUMO dTRANS T07 - Two channel Temperature Transmitter with HART / EX - Operating Manual 2.13 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
707085/8-06

dTRANS T07 B Ex – Two-wire transmitter with HART / Ex approval for installation in terminal head, form B

$915.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
