BTC-9300 – 48 x 48mm Digital Controller

High-end process and temperature controller

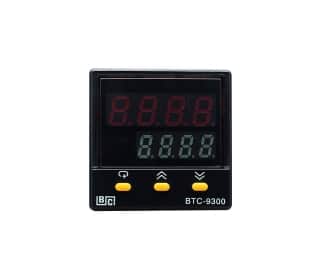

Brainchild BTC-9300 Digital Controller

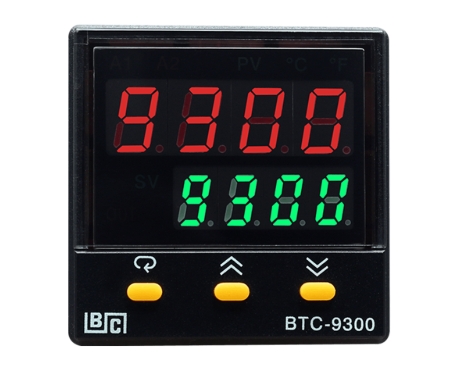

Brainchild BTC-9300 Digital Controller

BTC-9300 Features:

  • Fast input sample rate (5 times / second)
  • Basic & full function
  • User menu configurable
  • Pump control
  • Fuzzy+PID microprocessor-based control
  • Automatic programming
  • Differential control
  • Auto-tune function
  • Self-tune function
  • Sleep mode function
  • “Soft-start ” ramp and dwell timer
  • Programmable inputs (thermocouple, RTD, mA, VDC)
  • Analog input for remote set point and CT
  • Event input for changing function & set point
  • Programmable digital filter
  • Hardware lockout + remote lockout protection
  • Loop break alarm
  • Heater break alarm
  • Sensor break alarm+Bumpless transfer
  • RS-485,RS-232 communication
  • Analog retransmission
  • Signal conditioner DC power supply
  • A wide variety of output modules available
  • Safety UL / CSA / IEC1010-1
  • EMC / CE EN 61326
Brand: BRAINCHILD
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

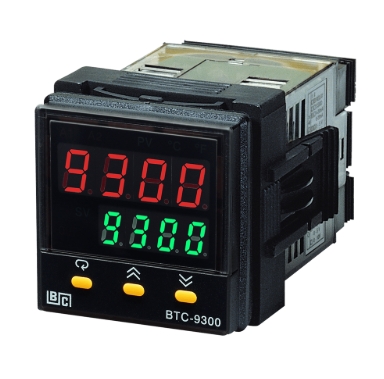

BTC-9300 is a 1/16 DIN size panel mount controller. The units are fully programmable for PT100 and thermocouple types J, K, T, E, B, R, S, N, L with no need to modify the unit. A programming port is available for loading the configuration data with no need to use the keypads on front panel.

The programming temperature controllers can be configured with multiple setpoints that are sequenced with pre-set timing criteria. The process and application needs will be your first concern when you want to choose a programmable temperature controller the number of segments and programs.

The Fuzzy Logic plus PID microprocessor-based thermo controller, incorporate two bright, easy to read 4-digit LED displays, indicating process value and set point value. The Fuzzy Logic technology enables a process to reach a predetermined set point in the shortest time, with the minimum of overshoot during power-up or external load disturbance.



Power
90 – 264 VAC, 47 – 63 Hz, 15VA, 7W maximum
11 – 26 VAC / VDC, SELV, Limited Energy, 15VA, 7W maximum



Input 1 Characteristics
Resolution 18 bits
Sampling Rate 5 times / second
Maximum Rating -2 VDC minimum, 12 VDC maximum ( 1 minute for mA input )
Temperature Effect ±1.5 uV/ °C for all inputs except mA

input ±3.0 uV/ °C for mA input

Sensor Lead Resistance Effect T/C: 0.2uV/ohm

3-wire RTD: 2.6 °C/ohm of resistance difference of two leads

2-wire RTD: 2.6 °C/ohm of resistance sum of two leads 200nA

Common Mode Rejection Ratio ( CMRR ) 120dB
Normal Mode Rejection Ratio ( NMRR ) 55dB
Sensor Break Detection Sensor open for TC, RTD and mV inputs, below 1 mA for 4-20 mA input, below 0.25V for 1 – 5 V input, unavailable for other inputs.
Sensor Break Responding Time Within 4 seconds for TC, RTD and mV inputs, 0.1 second for 4-20 mA and 1 – 5 V inputs.



TYPE Range Accuracy@25°C Input Impedance
J -120°C -1000°C (-184°F -1832°F) ±2°C 2.2MΩ
K -200°C -1370°C (-328°F -2498°F) ±2°C 2.2MΩ
T -250°C -400°C (-418°F -752°F) ±2°C 2.2MΩ
E -100°C -900°C (-148°F -1652°F) ±2°C 2.2MΩ
B 0°C -1820°C (32°F -3308°F) ±2°C (200°C – 1820°C) 2.2MΩ
R 0°C-1767.8°C (32°F -3214°F) ±2°C 2.2MΩ
S 0°C -1767.8°C (32°F -3214°F) ±2°C 2.2MΩ
N -250°C -1300°C (-418°F -2372°F) ±2°C 2.2MΩ
L -200°C -900°C (-328°F -1652°F) ±2°C 2.2MΩ
PT100 (DIN) -210°C -700°C (-346°F -1292°F) ±0.4°C 1.3KΩ
PT100 (JIS) -200°C -600°C (-328°F -1112°F) ±0.4°C 1.3KΩ
mV -8mV -70mV ±0.05% 2.2MΩ
mA -3mA -27mA ±0.05% 70.5Ω
V -1.3V-11.5V ±0.05% 302KΩ



Input 2
Resolution 18 bits
Sampling Rate 1.66 times / second
Maximum Rating -2 VDC minimum, 12 VDC maximum
Emperature Effect ±1.5uV/ °C for all inputs except mA input ±3.0uV/ °C for mA input
Common Mode Rejection Ratio ( CMRR ) 120dB
Normal Mode Rejection Ratio ( NMRR ) 55dB
Sensor Break Detection Below 1 mA for 4-20 mA input, below 0.25V for 1 – 5V input, unavailable for other inputs.
Sensor Break Responding Time 0.5 second



Input 2
Type Range Accuracy@ 25 °C Input Impedance
CT94-1 0-50.0 A ±2%
of Reading
±0.2A
302K
mA -3 ~ 27mA ±0.05% 70.5 +0.8V / input current
V -1.3 ~ 11.5V ±0.05% 302KΩ



Input 3 (Event Input)
Logic Low -10V minimum, 0.8V maximum.
Logic High 2V minimum, 10V maximum
External pull-down Resistance 400 K maximum
External pull-up Resistance 1.5 M minimum
Functions Select second set point and/or PID , reset alarm 1 and/or alarm 2 , disable output 1 and/or output 2 , remote lockout.



Output 1 / Output 2
Relay Rating 2A/240 VAC, life cycles 200,000 for resistive load
Pulsed Voltage Source Voltage 5V, current limiting resistance 66



Linear Output Characteristics
Type Zero Tolerance Span Tolerance Load Capacity
4-20 mA 3.6-4 mA 20-21 mA 500Ω max.
0-20 mA 0 mA 20-21 mA 500Ω max.
0-5 V 0 V 5-5.25 V 10KΩ min.
1-5 V 0.9-1 V 5-5.25 V 10KΩ min.
0-10 V 0 V 10-10.5 V 10KΩ min.



Linear Output
Resolution 15 bits
Output Regulation 0.01 % for full load change
Output Settling Time 0.1 sec. ( stable to 99.9 % )
Isolation Breakdown Voltage 1000VAC
Temperature Effect ±0.0025 % of SPAN / °C



Triac ( SSR ) Output
Rating 1A / 240 VAC
Inrush Current 20A for 1 cycle
Min. Load Current 50 mA rms
Max. Off-state Leakage 3 mA rms
Max. On-state Voltage 1.5V rms
Insulation Resistance 1000 Mohms min. at 500 VDC
Dielectric Strength 2500 VAC for 1 minute
DC Voltage Supply Characteristics (Installed at Output 2)



Type Tolerance Max. Output Current Ripple Voltage Isolation Barrier
20V ±1.0 V 25mA 0.2Vp-p 500VAC
12V ±0.6V 40mA 0.1Vp-p 500VAC
5V ±0.25V 80mA 0.05Vp-p 500VAC



Alarm 1/ Alarm 2 ( Output 2 )
Alarm 1 Relay Form A or Form B for BTC-9300, Form C for BTC4300,
BTC-8300, 5V Logic output for BTC-2500 Max. Rating
2A/240VAC, life cycles 200,000 for resistive load.
Alarm 2 Relay Form A,Max. rating 2A/240VAC, life cycles 200,000 for resistive load.
Alarm Functions Dwell timer, Deviation High / Low Alarm, Deviation Band High / Low Alarm, PV1 High / Low Alarm, PV2 High / Low Alarm, PV1 or PV2 High /Low Alarm, PV1-PV2 High /Low Alarm, Loop Break Alarm, Sensor Break Alarm.
Alarm Mode Normal, Latching, Hold, Latching / Hold.
Dwell Timer 0 – 6553.5 minutes



Data Communication
Interface RS-232 ( 1 unit ), RS-485 ( up to 247 units )
Protocol Modbus Protocol RTU mode
Address 1 – 247
Baud Rate 0.3 ~ 38.4 Kbits/sec
Data Bits 7 or 8 bits
Parity Bit None, Even or Odd
Stop Bit 1 or 2 bits
Communication Buffer 50 bytes



Analog Retransmission
Functions PV1, PV2, PV1-PV2, PV2-PV1, Set Point,
MV1, MV2, PV-SV deviation value
Output Signal 4-20 mA, 0-20 mA, 0-1V, 0-5V, 1-5V, 0-10V
Resolution 15 bits
Accuracy ±0.05 % of span ±0.0025 %/ °C
Load Resistance 0 – 500 ohms ( for current output ),10 K ohm minimum ( for voltage output )
Output Regulation 0.01 % for full load change
Output Settling Time 0.1 sec. (stable to 99.9 % )
Isolation Breakdown Voltage 1000 VAC min.
Integral Linearity Error ±0.005 % of span
Temperature Effect ±0.0025 % of span/ °C
Saturation Low 0 mA ( or 0V )
Saturation High 22.2 mA ( or 5.55V, 11.1V min. )
Linear Output Range 0 – 22.2mA(0-20mA or 4-20mA),
0 – 5.55V ( 0 – 5V, 1 – 5V ),
0 – 11.1 V ( 0 – 10V )



User Interface Dual 4-digit LED Displays
BTC-4300 Upper 0.55″ ( 14mm )
Lower 0.4″ ( 10 mm )
BTC-8300, BTC-9300 Upper 0.4″ ( 10 mm )
Lower 0.31″ ( 8 mm )
BTC-2500 0.4″(10mm)
Keypad 3 keys
Programming Port For automatic setup, calibration and testing
Communication Port Connection to PC for supervisory control



Control Mode
Output 1 Reverse ( heating ) or direct ( cooling )action
Output 2 PID cooling control, cooling P band 1 ~ 255% of PB
ON-OFF 0.1 – 55.6 ( °C ) hysteresis control ( P band = 0 )
P or PD 0 – 100.0 % offset adjustment
PID Fuzzy logic modified , Proportional band 0 ~ 500.0 °C ,
Integral time 0 – 1000 seconds , Derivative time 0 – 360.0 seconds
Cycle Time 0.1 – 100.0 seconds
Manual Control Heat (MV1) and Cool (MV2)
Auto-tuning Cold start and warm start
Failure Mode Auto-transfer to manual mode while sensor break or A-D converter damage
Ramping Control 0 ~ 500.0 °C/minute or 0 ~ 500.0 °C/hour ramp rate
Sleep Mode Enable or Disable
Ramping Control 0 ~ 500.0 °C/minute or 0 ~ 500.0 °C/hour ramp rate
Power Limit 0 – 100 % output 1 and output 2
Pump / Pressure Control Sophisticated functions provided
Remote Set Point Programmable range for voltage or current input
Differential Control Control PV1 – PV2 at set point
Digital Filter Function : First order
Time Constant : 0, 0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 seconds programmable



Environmental & Physical
Operating Temperature -10°C ~ 50°C
Storage Temperature -40°C ~ 60°C
Humidity 0 to 90 % RH ( non-condensing )
Insulation Resistance 20 Mohms min. ( at 500 VDC )
Dielectric Strength 2000 VAC, 50/60 Hz for 1 minute
Vibration Resistance 10 – 55 Hz, 10 m/s² for 2 hours
Shock Resistance 200 m/s2( 20 g )
Moldings Flame retardant polycarbonate
Dimensions BTC-4300 —96mm(W) X 96mm(H) X 66mm(D), 53 mm depth behind panel
BTC-8300 —48mm(W) X 96mm(H) X 80mm(D), 65 mm depth behind panel
BTC-9300 —50.7mm(W) X 50.7mm(H) X 88.5mm(D), 75mm depth behind panel
BTC-2500 —50mm(W) X 26.5mm(H) X 110.5 mm(D), 98.0 mm depth behind panel
Mounting BTC-4300 —panel mount, cutout 92 X 92 ( mm )
BTC-8300 —panel mount, cutout 45 X 92 ( mm )
BTC-9300 —panel mount, cutout 45 X 45 ( mm )
BTC-2500 —panel mount, cutout 45 X 22.2 ( mm )
Weight BTC-4300 — 255 grams
BTC-8300 — 220 grams
BTC-9300 — 150 gram
BTC-2500 — 120 grams



Approval Standards
Safety UL 61010C-1 , CSA C22.2 No. 24-93 , EN61010-1 (IEC1010-1)
Protective Class BTC-8300, BTC-4300:
IP 20 housing and terminals with protective covers.
BTC-2500, BTC-9300:
NEMA 4X(IP65) front panel , IP 20 housing and terminals
EMC EN61326
BTC-9300-(1)-(2)-(3)-(4)-(5)-(6)
Type Code Specification
(1) Power Input 4 90 – 264 VAC, 47-63 HZ
5 11 – 26 VAC or VDC, SELV, Limited Energy
(2) Signal Input 1 Standard Input *
9 Special Order
(3) Output 1 0 None
1 Relay rated 2A / 240VAC
2 Pulsed voltage to drive SSR, 5V / 30mA
3 Isolated 4 – 20mA / 0 – 20mA
4 Isolated 1 – 5V / 0 – 5V
5 Isolated 0 – 10V
6 Triac output 1A / 240VAC,SSR
C Pulsed Voltage to drive SSR, 14V/40mA
9 Special order
(4) Output 2/Alarm 2 0 None
1 Form A relay 2A / 240VAC
2 Pulsed voltage to drive SSR, 5V / 30mA
3 Isolated 4 – 20mA / 0 – 20mA
4 Isolated 1 – 5V / 0 – 5V
5 Isolated 0 – 10V
6 Triac output, 1A / 240VAC, SSR
7 Isolated 20V / 25 mA DC Output Power Supply
8 Isolated 12V / 40 mA DC Output Power Supply
9 Isolated 5V / 80 mA DC Output Power Supply
C Pulsed Voltage to drive SSR, 14V/40mA
A Special order
(5) Alarm 1 0 None
1 Form A relay 2A / 240VAC
2 Form B relay 2A / 240VAC
9 Special order
(6) Communications 0 None
1 RS-485 interface
2 RS-232 interface
3 Retransmit 4 – 20 mA / 0 – 20 mA
4 Retransmit 1 – 5V / 0 – 5V
5 Retransmit 0 – 10V
9 Special order
* Input 1-Universal Input Thermocouple: J,K,T,E,R,S,N,L. RTD: PT100 DIN, PT100 JIS
Current: 4~20mA, 0~20mA. Voltage: 0~1V, 0~5V, 0~10V
Input 2-CT 0~50Amp AC, Current Transformer, Analog Input: 4~20mA, 0~1V, 0~5V 1~5V, 0~10V
Input 3 Event Input (EI)
  • Brainchild High End Digital Controllers - Brochure 317.12 KB
  • Brainchild BTC-9300 Digital Controller - User Manual 2.00 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
BTC-9300-413110

BTC-9300 Digital Controller, Standard Input, mA Output, 90~264Vac

$510.00
BTC-9300-411110

BTC-9300 Digital Controller, Standard Input, Relay Output, 90~264Vac

$510.00
BTC-9300-412110

BTC-9300 Digital Controller, Standard Input, SSR Output, 90~264Vac

$510.00
BTC-9300-511110

BTC-9300 Digital Controller, Standard Input, Relay Output, 11~26Vac/dc

$570.00
BTC-9300-511113

BTC-9300 Digital Controller, Standard Input, Relay Output, 11~26Vac/dc + Retrans (mA)

$650.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Brainchild products. Please contact the Brainchild distributor in your country if you require sales or service support for Brainchild products.

Product Bottom

Not sure what you need? Ask us anything!

  • (03) 343-0646Christchurch
  • (09) 827-1930Auckland
  • [email protected]

Primary Sidebar

Footer

Who we are

  • Products
  • About
  • Contact us

Intech Christchurch

59 Mandeville Street
Riccarton, Christchurch 8011

Phone: (03) 343 0646

Email: sales@intech.co.nz

Intech Auckland

70 Central Park Drive
Henderson, Auckland 0610

Phone: (09) 827 1930

Email: aucksales@intech.co.nz

Newsletter

Subscribe to our newsletter and get new information every month.

Copyright © 2019–2025 Intech Instruments Ltd. All rights reserved.
