The 404304 transmitter acquires the negative pressure, overpressure, or differential pressure of non-aggressive gases. Upon request, the device can be equipped with an LCD display. This transmitter is used in particular in heating engineering, air-conditioning and ventilation technology.

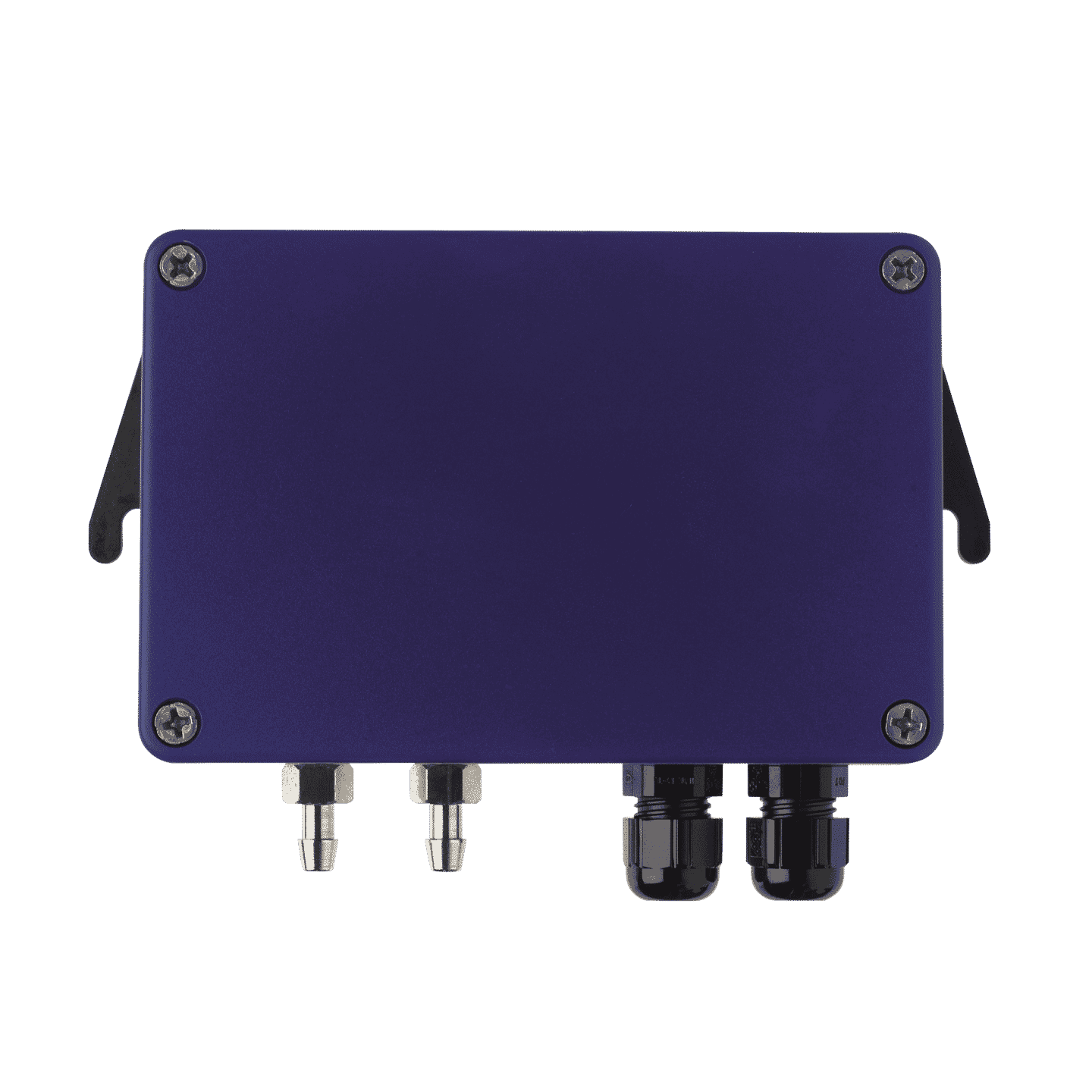

404304 – Pressure and Differential Pressure Transmitter
Pressure Transmitter with inductive measuring system for Dry non-aggressive gases.
Features:
- Pressure Transmitter with inductive measuring system
- Fine ranges between 0-1 bar relative
- Also ranges between 0 -1.2 bar absolute
- Maintenance-free measuring system: inductive
- Medium temperature: -10~50°C
- Characteristic line: linear or root extracted
- Adjustment of zero point and measuring range possible
Brand: JUMO
Usually in stock
Request a quoteScroll down for product range
| TYPE | 404304 |
|---|---|
| For Dry non-aggressive gases. |
|
| Protection | IP54. |
| Temperature | Medium, -10~50°C. Ambient, -10~50°C |
| Process connection | Tube connection ø 6.6 x 10mm (for flexible tubing ø 6mm). |
| Output | 4~20mA. |
| Supply voltage | 24Vdc, loop powered |
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 404304-402 | 0~1 mbar, 4~20mA 3-wire, 24Vdc, Hose connection 6.6Ø x 11mm | $928.00 | |||||||||
| 404304-404 | 0~2.5 mbar, 4~20mA 3-wire, 24Vdc, Hose connection 6.6Ø x 11mm | $828.00 | |||||||||
| 404304-406 | 0~5 mbar, 4~20mA 3-wire, 24Vdc, Hose connection 6.6Ø x 11mm | $828.00 | |||||||||
| 404304-453 | 0~600mbar, 4~20mA 3-wire, 24Vdc, Hose connection 6.6Ø x 11mm – INDENT ITEM | $609.00 | |||||||||
| 404304-454 | 0~1 bar, 4~20mA 3-wire, 24Vdc, Hose connection 6.6Ø x 11mm | $609.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
