2300-MULTI – Mixed Inputs and Outputs - I/O Remote Station

Compatible with MicroScan V5 -Seamless Integration

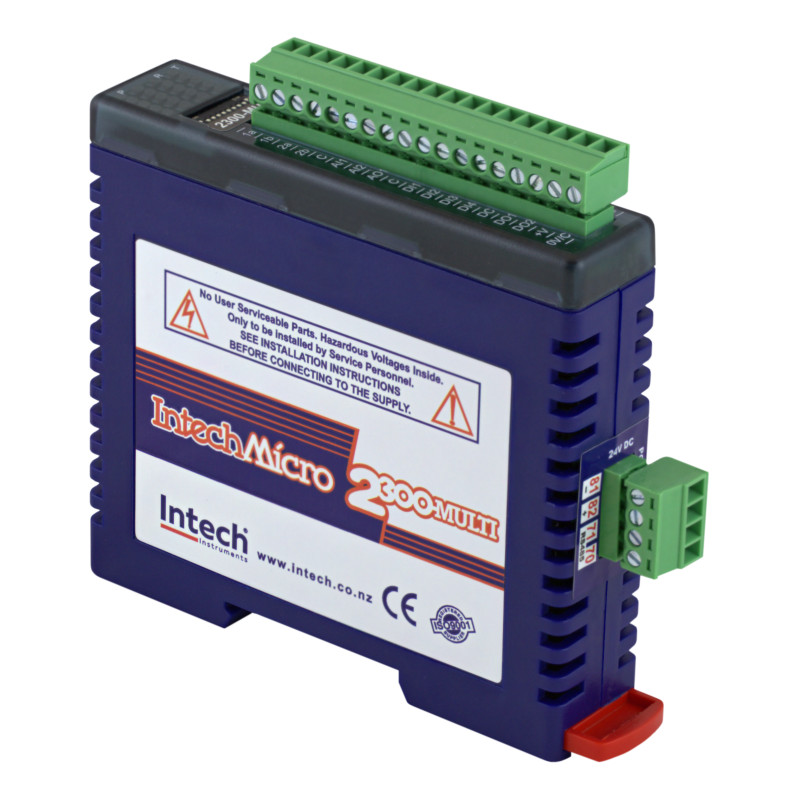

Intech 2300-MULIT Mixed I/O Station

2300-MULTI Features:

  • Mixture of input and output types.
  • 2 RTD, 2 AI, 1 AO, 4 DI, 2 DO.
  • Modbus RTU, RS485.
  • Easy Programming Via MicroScan Maps.
  • Plug-in Connectors Makes Replacement Easy.
  • Station ID Number set via Dip switches.
  • Programming Information Retained on Power Down.
  • 24Vdc Power Supply.
  • Easy to Install.
  • Compact DIN Rail Mount Enclosure.
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

The 2300-MULTI station has a multipurpose combination of inputs and outputs. The station can accommodate either 2 or 3 wire RTD sensors, current (4~20mA) inputs, current (4~20mA) output, and digital inputs and outputs. The station includes 2 RTD Inputs, 2 Analogue Inputs, 1 Analogue Output, 4 Digital Inputs and 2 Digital Outputs.

2300 Series

The Intech Micro 2300 Series is a system of modular I/O Remote Stations, that add an even lower cost option to Intech’s already extensive intelligent I/O Remote Station family, which connect automatically to the Intech MicroScan V5 logging plus SCADA software package.

The 2300 Series I/O stations are made up of stand-alone Digital and Analogue—Input/Output stations. Communications between the computer running MicroScan V5 and the 2300 Series stations is RS485 (1 pair cable) multi drop as standard with an option for Ethernet TCP/IP.

A 32bit ARM CPU is used in the 2300 Series stations to provide high speed data processing and fast communications turn around times.

All 2300 Series stations have been equipped with status led’s which are used to indicate the status of the Inputs or Outputs. This visual indication assists with fault finding and diagnostics.

All the I/O stations clip directly onto an industry standard DIN rail. All stations have a minimum isolation of 1000Vac rms between the field and logic.

Examples of connectivity – RS485 data Hi-Way:



RS485 Connection Examples for 2300 Series

Important: The 2300-XX stations cannot share a data hi-way with the 2400-XX / 2100-XX stations and/or Shimaden Controllers.

TYPE2300-MULTI
RTD Inputs:-Input Points2-RTD Configuration2 or 3 Wire
-Resolution0.1°C-Drift100ppm/°C Typ
-Line resistance effect< 0.1°C balanced-Max. line resistance100ohms
-Isolation1500Vrms between field and logic
RTD Type:-NumberTypeRangeAccuracy
-1PT100-200 to 850°C± 0.3°CIEC 751:1983
-2Ni120-80 to 320°C± 0.3°C
-3PT1000-200 to 850°C± 0.3°C
-4Ni1000-DIN-200 to 850°C± 0.3°C
-5Ni1000-Landys&Gyr-200 to 850°C± 0.3°C
-6Ohms10 - 400 ohms ± 0.05%
-7Ohms100-4000ohms± 0.05%
Current Inputs:-Input Points2-Input Current0(4)~20 mA
-Input Resistance250ohms-Drift100ppm/°C
-Input TypeRangeResolution
-1  0 – 409512 bits
-24~20.000mA1uA
-3+/-20.000mA1uA
-Accuracy0.2% of span-Isolation1000Vrms between field and logic
Factory Option : Voltage Inputs:
-Input Voltage0~1 Vdc or 0~10 Vdc-Input Resistance190kohms
-Input TypeRangeResolution
-40 – 409512 bits
-50 – 10.000 V1mV
-6+/- 10.000 V1mV
-70 – 1.0000 V0.1mV
-8+/- 1.0000 V0.1mV
-Drift100ppm/°C-Accuracy0.2% of span
-Isolation1000Vrms between field and logic
Current Output:-Output Points1-Output Current0(4)~20 mA
-Output TypeRangeResolution
-10 – 409512 bits
-Drift100ppm/°C-Accuracy0.05% of span
-Compliance1000 ohms max. @ 24Vdc500 ohms max. @ 12Vdc
Factory Option : Voltage Output:
-Output Voltage0(2)~10 V
-Output TypeRangeResolution
-20 – 409512 bits
-Drift100ppm/°C-Accuracy0.05% of span
-Compliance2000 ohms min. Load
Digital Inputs:-Input Points4-Input Voltage Range10~26 Vdc
-Input Current per input4mA@12Vdc / 8mA @24Vdc
Counters:-Inputs1 to 4-Resolution32 Bits
-Frequency50 Hz (max)-PulseWidth 20 ms (min)
Digital Outputs:-Output Points2-Maximum Voltage36 Vdc
-Maximum Current100 mA per output-Vceon1.1V Max.
Isolation:-Between field and logic1500Vrms between field and logic
Connectors: -Logic Power and Comms4 Pin plug-in connector on side of station
-Inputs18 Way screw plug-in connector on top of station
Comms:-ProtocolsRS485, Modbus RTU.
-Baud Rate9600.
-Format8 bit, No Parity, 1 Stop.
Power Supply:-Logic Supply Voltage12~24 Vdc
-Logic Supply Current87mA @ 12V / 45mA @ 24V
Safety and EMC Compliances:EMC Compliance89/336/EEC and Low Voltage Equipment Directive 73/23/EEC.
Safety ComplianceIEC 950.
General Specifications: (Unless otherwise stated in other input specifications.)
Operating Temperature-10~50°C.Storage Temperature-40~85°C.
Operating HumidityUp to 95% non condensing.
Housing-DimensionsL=97.5, W=22.6, H=109mm.-Mounting35mm Symmetrical Mounting Rail.

Download IOStudio Modbus Configuration Software

Please Note: The IOStudio Modbus Configuration Software is NOT required when using the 2300 Series I/O stations with MicroScan V5 software.

  • Intech 2300-MULTI Remote Station - Installation Guide 390.64 KB
  • Intech 2300-MULTI Remote Station - MODBUS supplementary manual 439.57 KB
  • Intech Micro 2300 Series I/O Remote Stations - Brochure 275.55 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
2300-MULTI

Remote Station – 2 RTD, 2 AI, 1 AO, 4 DI, 2 DO. RS485 COMMS, Modbus RTU. 24Vdc Power Supply.
Options Analogue input option: 0~10Vdc. Analogue output option: 0~10Vdc.

$679.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
