2100-M – Analogue Input Multiplexer

16 Channel Programmable Multiplexer. Milliamp and Pt100 RTD Input types available

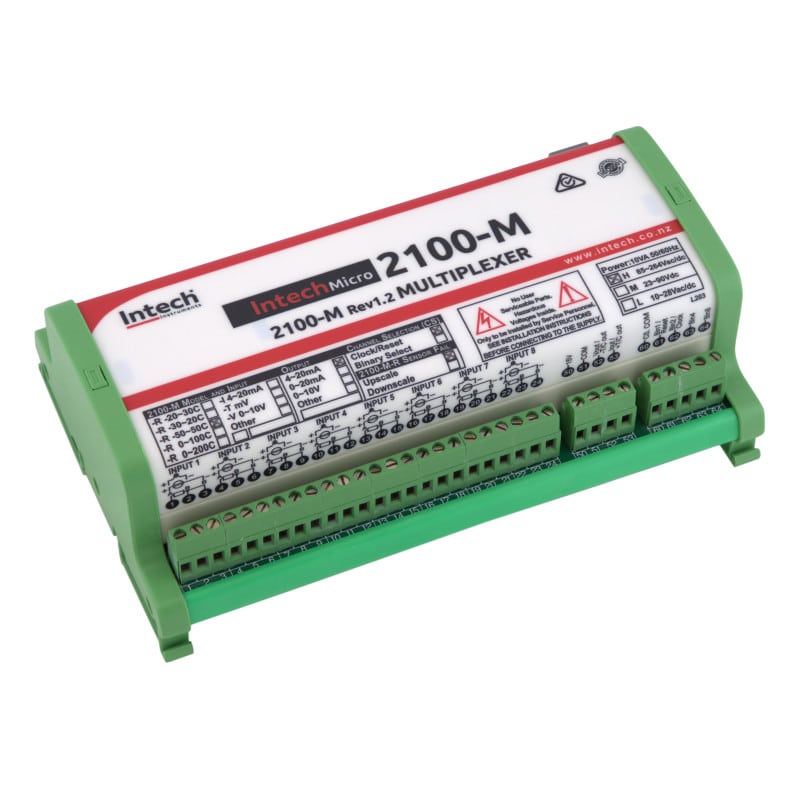

Intech 2100-M

2100-M- Features

  • 16 Channel Multiplexer
  • Field Programmable Inputs
  • Field Programmable Output
  • Input Types Available:
    • RTD Pt100 (-200~600°C) / (-330~1100°F)
    • MilliAmp (4~20 / 0~20mA)
  • Clock/Reset Channel Selection, or Binary Channel Selection
  • Universal power supply: 85~264Vac/dc (Standard) / 23~90Vdc Field selectable.
  • High Accuracy 0.1%
  • Compact DIN Rail Mount Enclosure
  • Easy to Install
  • Solid State Switches for Reliability
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The 2100-M is used extensively in industrial plants, with proven reliability and accuracy. It comes complete and ready to operate in a compact DIN rail mount enclosure.

The 2100-M (previously the EXPO-3) can multiplex up to 16 analogue inputs, into one input of a PLC or a Data Logging System. It uses solid state switches, making it extremely reliable and durable.

The 2100-M is widely used to expand up inputs on the 2400-A16 and 2100-A16, plus give economic easy accurate analogue input expansion on a PLC.

The PLC only requires two digital outputs and one analogue input to select and receive data from the 2100-M. For each additional 2100-M added to the system, only one more analogue input is required. (The typical fan-out for most PLC’s is up to eight 2100-M’s)

The 2100-M-I and the 2100-M-R are on board input span programmable. The output can be configured to a selection of industry standard output signals.

Please Note: Modbus Protocols are NOT available with the 2100-M. If you require a multiplexer with Modbus Protocols please view the 2400-A16.

Terminals and Layout:

TYPE 2100-M
General Specifications: (Unless otherwise stated in other input specifications.)
Accurate to<±0.1% FSO Typical
Linearity & Repeatability<±0.1% FSO Typical
Channel Separation<±0.1% FSO Typical
Ambient Drift<±0.01%/C FSO Typical
RF Immunity<±1% Effect FSO Typical
Operating Temperature0~60°C
Storage Temperature-20~80°C
Operating Humidity5~85%RH Max, Non-Condensing
Housing-MaterialABS Inflammability V0 (UL94)
-DimensionsL=195 W=120 H=70mm
-Mounting35mm Symmetrical Mounting Rail
-Weight700g. Includes Packaging
2100-M-R, 3-wire RTD Inputs
Inputs16 Single Ended RTD Inputs. All 2nd ‘B’ Terminals Connected
RTD Type3 Wire Pt100 RTD DIN 43760:1980 Standard Input
Other RTD input types available on request (eg Ni100, Cu10, etc.)
RangingField Programmable Within -200°C to 600°C Minimum Range = 20°C
Sensor current1mA Multiplexed
Lead resistance5Ω/Lead Maximum Recommended
All temperature probes must be isolated from each other and earth
Sensor Fail-Upscale:>110%FSO (Load Dependant)
-Downscale:≤1%FSO Typical
2100-M-I, mA Inputs
Inputs16 Single Ended Inputs All -Ve Terminals Connected
RangingField Programmable Within 0 to 20mAdc Minimum Range = 2mA
Input Resistance100Ω
Maximum Over-range35mAdc Continuous
  • Intech 2100-M Analogue Input Multiplexer - Installation Guide 517.76 KB
  • Intech 2100-M Analogue Input Multiplexer - Brochure 654.50 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
2100-M-R-0~100°C-4~20mA-CR-US-H

RTD Multiplexer, 0~100°C Input Range, 4~20mA Output, Clock/Reset, Upscale, 85~264Vac/dc Power Supply

$1,065.00
2100-M-R--50~50°C-4~20mA-CR-US-H

RTD Multiplexer, -50~50°C Input Range, 4~20mA Output, Clock/Reset, Upscale, 85~264Vac/dc Power Supply

$1,065.00
2100-M-I-4~20mA-4~20mA-CR-H

mA Multiplexer, 4~20mA Input Range, 4~20mA Output, Clock/Reset, 85~264Vac/dc Power Supply

$986.00
2100-M-Special Range

Please specify ranging options when confirming order

$986.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.
