Home | Products | Signal Transmitters & Conditioners | 2 Wire Transmitters - Loop Powered | Universal Input | XJ2/XJ22-

XJ2/XJ22- – Universal Input Transmitter (Analogue)

Programmable Isolating Multi-Input to 4~20mA Output Loop Powered Transmitter

XJ2/XJ22-6

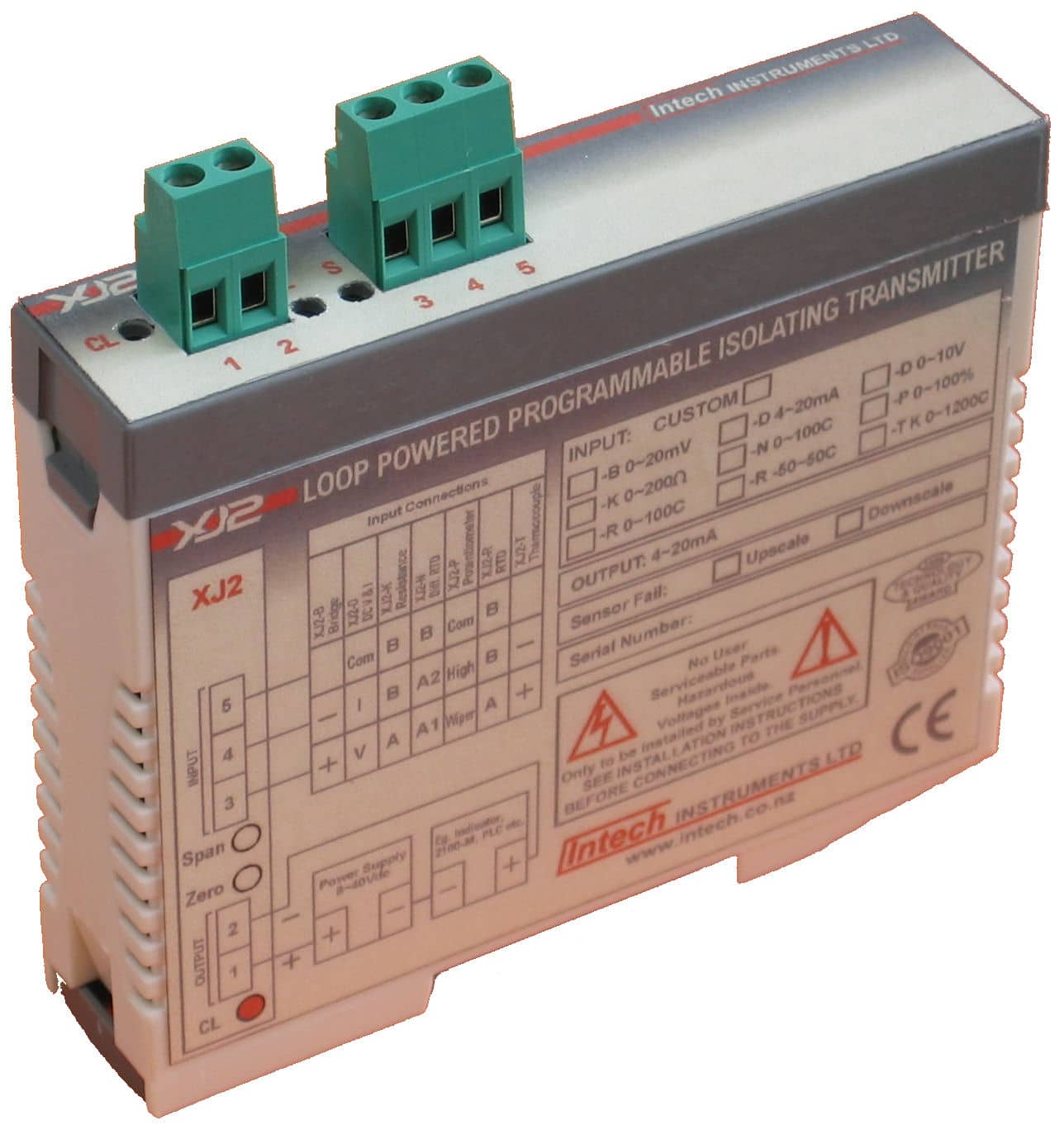

Intech XJ2 Universal Input Single Transmitter

XJ2/XJ22 Features

  • Field programmable Bi-Polar input ranges
  • Multiple input types
  • Input to output isolation 2.0kV
  • High accuracy 0.1%
  • Reverse polarity protected
  • LED indication of current loop (CL)
  • Compact DIN rail mount enclosure
  • Available with one or two transmitters per enclosure
  • Available standard or special calibration
  • Easy install
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

Input Types:

  • Potentiometer
  • DC: mV, V & mA
  • RTD Pt100
  • Differential RTD
  • Bridge Strain Gauge
  • Resistance
TYPEXJ2/XJ22
Output2 wire 4~20mA (Loop Powered)
Power Supply8~40Vdc
Supply Voltage Sensitivity<±0.005%/V FSO
Output Load Resistance800Ω @ 24Vdc (50Ω/V Above 8Vdc)
Maximum Output CurrentLimited to <28mA
EMC Emissions ComplianceEN 55022-A
EMC Immunity ComplianceEN 50082-1
Safety ComplianceEN 60950
Accurate to<±0.1% FSO Typical
Linearity & Repeatability<±0.1% FSO Typical (Unless Individual Specifications State Otherwise)
Ambient Drift<±0.02%/C FSO Typical
Noise Immunity125dB CMRR Average (2.0kVdc Limit)
R.F. Immunity<1% Effect FSO Typical
Signal Isolation Test VoltagesBetween Input and Output: 2000Vdc for 1min
XJ22 Isolation Test VoltagesBetween the two XJ2 transmitters: 2000Vdc for 1min
Response Time200msec Typical (From 10 to 90% 50msec Typical)
Operating Temperature 0°C~70°C
Storage Temperature-20°C~80°C
Operating Humidity 5~85%RH Max, Non-Condensing
Mounting35mm Symetrical Mounting Rail
DimensionsL=100, W=22.5, H=100mm

XJ2-XJ22 Ordering Information

  • Intech XJ Series Universal Input Transmitters - Brochure 1.41 MB
  • Intech XJ2 & XJ22 Universal Input Transmitters - Data Sheet 175.89 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
XJ2-X

One XJ2 Transmitter per enclosure; Standard Calibration units: Inputs 4~20mA

$290.00

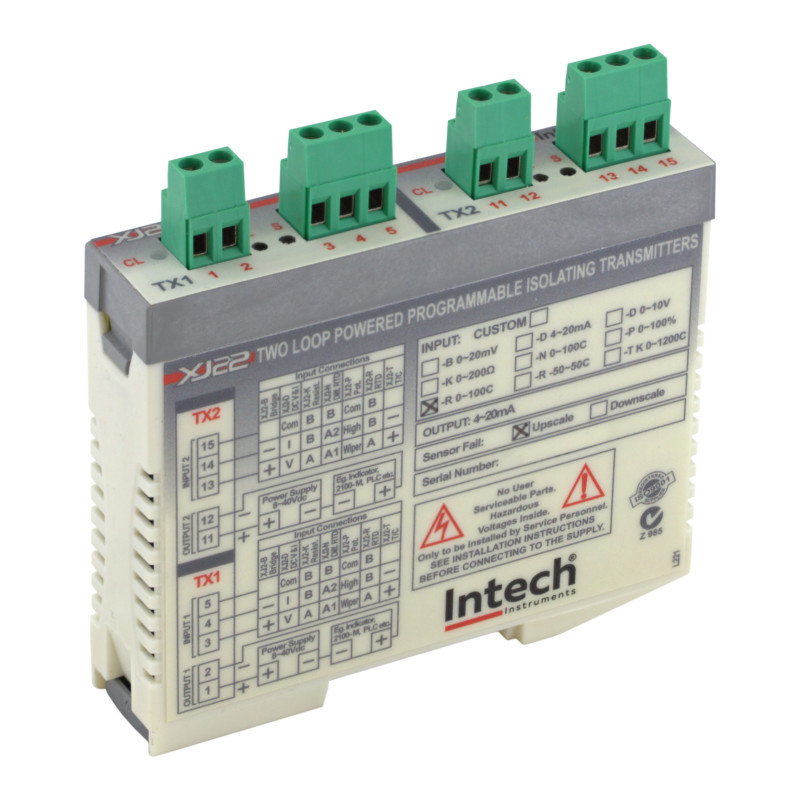

XJ22-X

Two XJ2 Transmitters per enclosure; Standard Calibration units: Inputs 4~20mA

$486.00

Other ranges available on request.

Please note the XJ2 / XJ22 Thermocouple (T/C) output(s) is NOT linear with temperature, we strongly recommend using the XU2 for Thermocouple (T/C) applications.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
