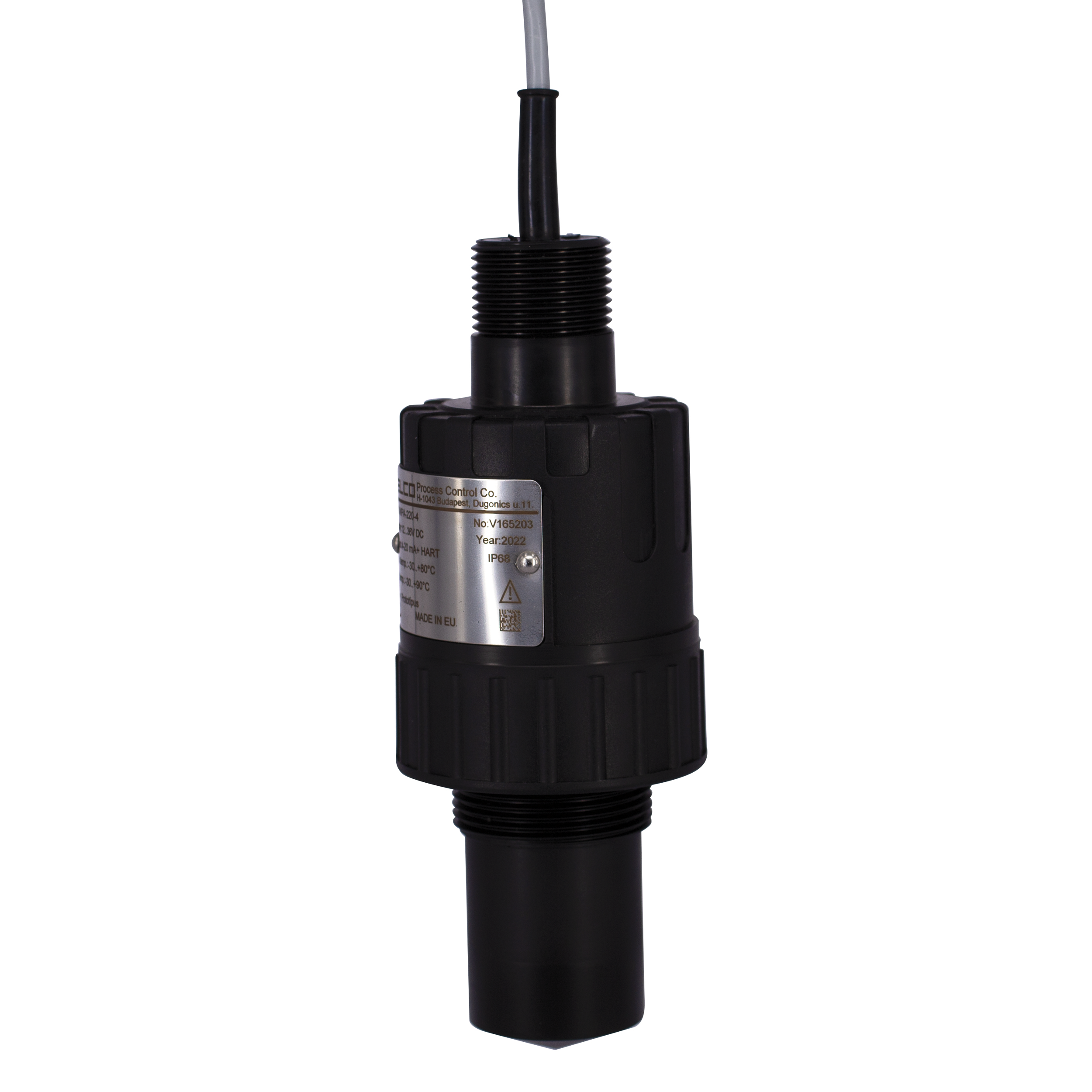

PiloTREK WPA-200 – 80 GHz Radar Level Transmitters

Integrated 80GHz (W-Band) Radar for Liquids & Solids

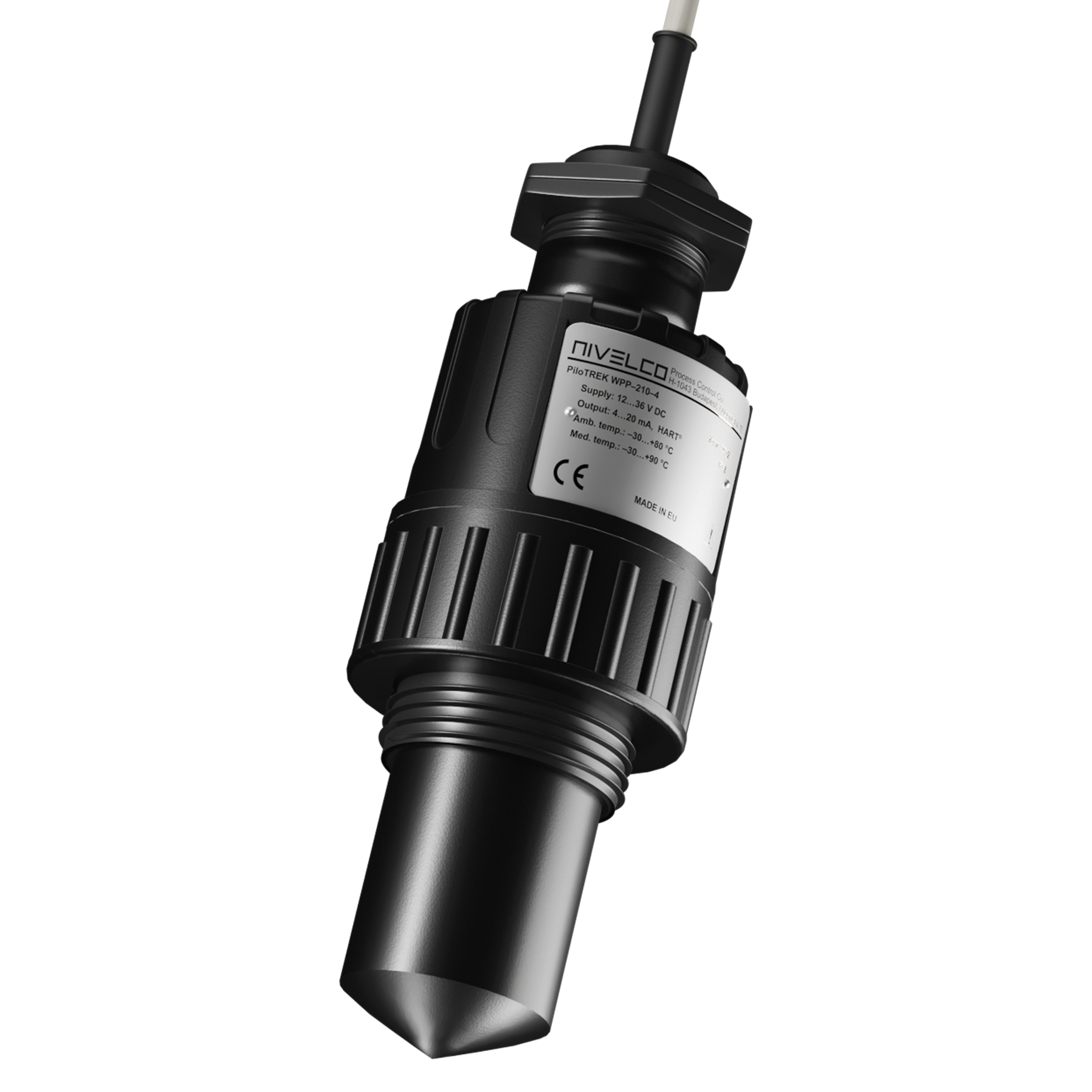

PiloTREK 80GHz Radar Level Transmitter
PiloTREK – 80 GHz Radar Level Transmitter

PiloTREK WPA-200 Features

  • 2-wire, 80 GHz (W-band) radar
  • Measuring range up to 30 m for liquids
  • Accuracy of ±2 mm
  • Easy to install due to small antenna diameter
  • 1″, 1½” encapsulated horn antenna
  • Integrated design with IP68 protection
  • User-friendly threshold management
Brand: NIVELCO
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

The new PiloTREK WPA–200 non-contact radar level transmitters use the most advanced industrial measurement technology, the 80 GHz FMCW radar. The most fundamental advantage of 80 GHz radars compared to lower frequencies (5…12 GHz and 25 GHz) is the smaller antenna size, better focusability, and narrow beam angle.

It uses the latest technology for measuring liquids, masses, emulsions, and other chemicals widely used in, for example, the water industry, food industry, energy industry, pharmaceutical industry, and chemical industry, which provides measurement results with millimeter accuracy.

It is also excellent for measuring substances prone to vapor formation and liquids with gas blanket or large-particle bulk solids. In addition to the level, volume, and weight measurement functions, this product family also inherits the open channel flow measurement functions and the threshold functions to eliminate false and interfering echoes introduced in connection with ultrasonic devices. Since no medium is required for millimeter waves to propagate, it can also be used in a vacuum.

The device can also be operated with HART® compliant NIVELCO EView2, MultiCONT universal process controller, and PACTware software, or programmed via Bluetooth® communication with the new MobileEView* app.

OPERATING PRINCIPLE
The reflection of the millimeter-waves is highly dependent on the dielectric constant of the medium. Therefore, the measured medium’s dielectric constant (εr) must be over 1.9 for millimeter-wave level measurement. The measurement principle of a level transmitter with a millimeter-waves signal is based on measuring the reflection’s time of flight.

The speed of propagation of millimeter-waves signals in the air, gases, and vacuum is almost constant regardless of temperature and medium pressure, so the measured distance does not depend on the physical parameters of the intermediate medium.

*Under development



https://www.intech.co.nz/wp-content/uploads/PiloTREK-WP-200.mp4

APPLICATIONS

  • For measuring the level of liquids, emulsions, and other media
  • For large-particle bulk solids
  • Storage tanks, chemical tanks, sumps, wells
  • Capable of level measurement through a plastic wall or lining
  • For material prone to vapor formation
  • For measuring liquids with a gas cushion
  • It can also be used in a vacuum
  • Open-channel flow measurement
  • Water and Wastewater Industry
  • Energy Industry / Plant utilities
  • Food & Beverage
  • Pharmaceutical Industry
  • Chemical Industry
  • Marine applications
  • Agriculture
  • Construction materials
  • Heavy Industry
  • Packaging Industry

Note: New Zealand regulations require the antenna to be installed in a shielded environment, as is required for any TLPR device.

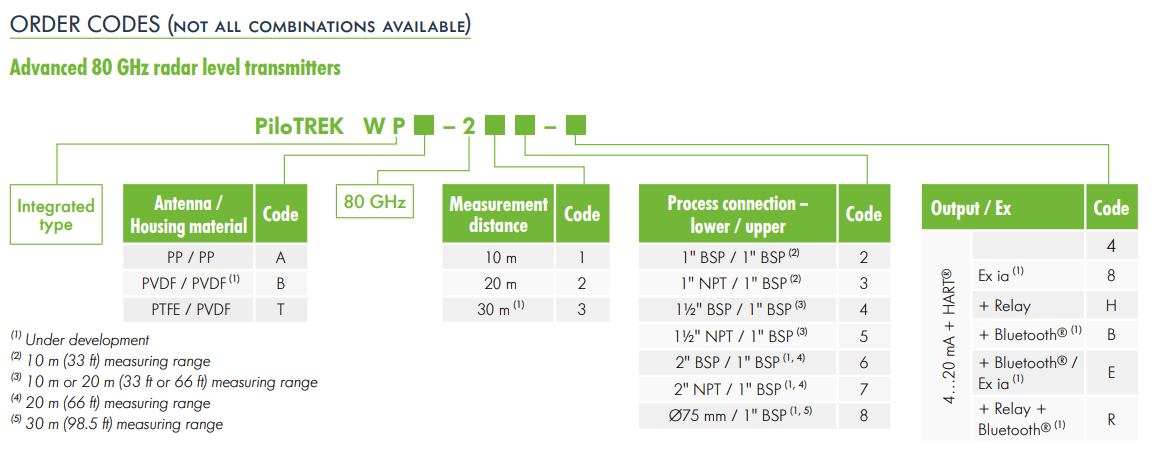

PiloTREK WP-200
Measured valuesDistance; calculated values: level, volume, mass, flow
Signal frequency77…81 GHz (W-band)
Measuring range*0…30 m (0…98.5 ft)
Minimum beam angle*7°
Lowest er of medium*1.9
Resolution1mm (0.39")
Supply voltage12…36 V DC
Analog Output4…20 mA (3.9…20.5 mA); Rtmax = (Us – 12 V) / 0.02 A
Digital OutputBluetooth® (under development), HART® interface, loop resistance ≥250 Ω
Relay Output (optional)SPDT 30 V / 1 A DC; 48 V / 0.5 A AC
Service interface outputSAT−504−3 compatible; galvanically isolated; 3.3 V LVDS; max. 100 mA
Measuring frequency~1 s
Antenna diameter*1" (25.4 mm), 1½" (38.1 mm)
Process temperatureEncapsulated horn antenna (PP / PVDF / PTFE)
Ambient temperature–40…+80 °C (–40…+176 °F)
Process pressure–1…3 bar (–14.5…43.5 psi)
Process connection1", 1½" BSP / NPT
Ingress protectionIP68
Electrical connection4 x 0.5 mm² shielded Ø6 mm cable x 5 m (up to 30 m); For relay option: 7 x 0.5 mm² shielded cable
[4× AWG22 shielded Ø0.24" cable x 16.4 ft (up to 98.5 ft); For relay option: 7× AWG22 shielded cable]
Electrical protectionOvervoltage Class 1; (Class III [SELV])
Housing material*Plastic (PP / PVDF)
ConformanceCE, R-NZ

*depending on order code

  • Nivelco PiloTREK WP-200 Brochure 600.51 KB
  • Nivelco PiloTREK WP-200 Programming Guide 2.41 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
WPA-214-4

PiloTREK 2-wire integrated pulse burst radar level transmitter with PP sensor, 10m range, 1.5″BSP, 4~20mA + HART®

$1,398.00
WPA-214-R

PiloTREK 2-wire integrated pulse burst radar level transmitter with PP sensor, 10m range, 1.5″BSP, 4~20mA + HART®+ relay + Bluetooth®

$1,582.00
SAT-304__

HART Modem USB

$528.00
SAT-504-2__

HART Modem USB + power supply for transmitter + Bluetooth

$754.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Nivelco products. Please contact the Nivelco distributor in your country if you require sales or service support for Nivelco products.
