Home | Products | Controllers & Displays | Displays & Indicators | Loop Powered Displays / Indicators | UNICONT PDF

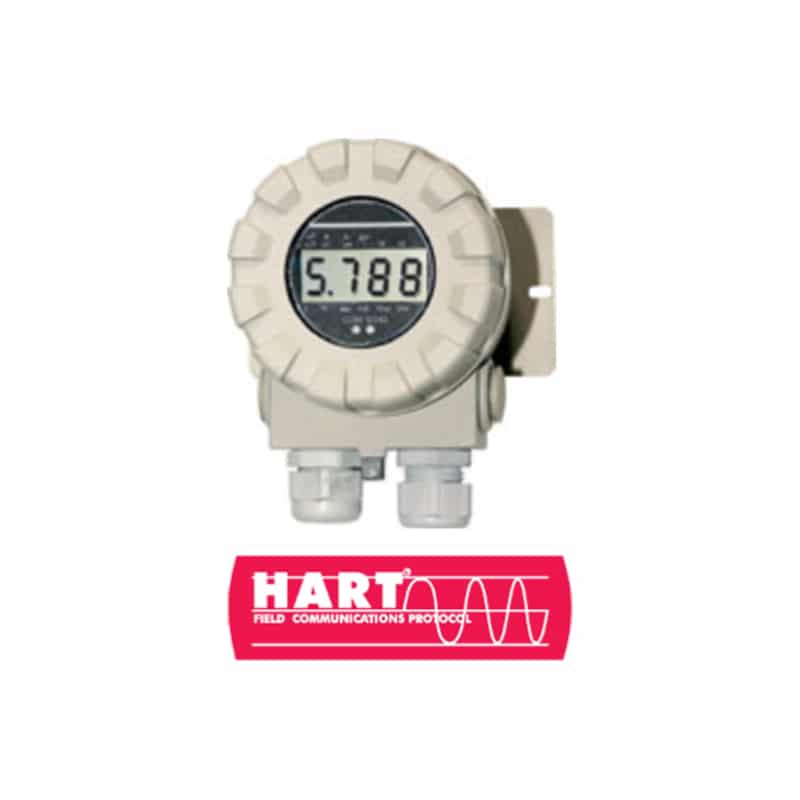

UNICONT PDF – Field Mounting Indicator. Loop Powered.

The UNICONT PDF- units are digital, field process indicators with 6 digit LCD display as well as transmitters, converting analogue current to HART signal.

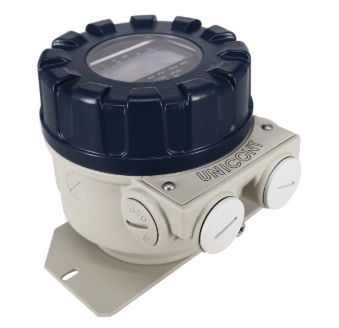

PDF-501 Field Mounting Indicator

UNICONT PDF Features

  • Mount: Wall mount.
  • Temperature: -25~60°C.
  • Housing: Paint coated aluminium.
  • Display: 6 digit LCD, engineering units and bar graph.
  • Power: 2 wire, 4~20mA. Option, 4 wire, 4~20mA/HART.
  • Protection: IP67.
Brand: NIVELCO
not stocked
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The UNICONT series 2-wire passive loop-indicators are universally scalable process value indicators of NIVELCO, operating without the need for power supply. The process indicators find their use where the process value has no control function (such as switching ON/OFF, pressure control, etc.). The 3-wire HART® converter type UNICONT devices offer the optimal solution where local displaying is needed besides the remote data processing and the field transmitters having 4–20mA output are needed to be integrated into HART® multidrop system. The devices are applicable not only for NIVELCO transmitters, but for all transmitters which use standard 4–20mA output.

The UNICONT PDF devices are digital, 2-wire passive / 3-wire active, field process indicators suitable for indication of temperature, pressure, level, etc. values with 6 digit SAP-202 LCD display. Explosion proof versions are available for hazardous environments.

The HART® capable UNICONT PDF 3-wire process indicators require additional power supply. Besides displaying the loop current or the process values, these units convert input current to HART® signals and so enable devices that have analogue outputs only to be integrated into HART® multidrop systems. Robust enclosure makes applications under harsh conditions also possible.

TYPEPDF-401 / PDF-501
Input4~20mA
Voltage dropMin 5,2 V max 6,5 V
Display6-digit LCD, engineering units and bargraph
Ambient Temperature-25~60°C
Intrinsical safety dataUmax = 30 V Imax = 140 mA
Pmax = 1,0 W Ci < 20 nF Li < 200 PH
Electric protectionClass III
Ingress protectionIP67
Electric ConnectionOuter diameter of the cable: ‡ 6 … ‡ 12 mm
for M 20 x 1,5 conduit wire cross section maximum 1,5 mm2
HousingPaint coated aluminium (öAlSi12) or plastic (VALOX 412)
MassUnit with aluminium housing: appr. 0,9 kg
Unit with plastic housing: appr. 0,55 kg
  • Nivelco UNICONT Loop Indicators - Data Sheet 944.05 KB
  • Nivelco UNICONT Loop Indicators - Installation Manual 1,019.93 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
PDF-401-2

Field mount Indicator, Aluminium housing.

$810.00
PDF-501-2

Field mount Indicator, Reinforced plastic housing.

$770.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Nivelco products. Please contact the Nivelco distributor in your country if you require sales or service support for Nivelco products.
