Home | Products | Controllers & Displays | Chart Recorders | TT Series

TT Series – Circular Chart Temperature Recorder

Chart recorder for measuring of ambient temperatures

TT260 Chart Recorder

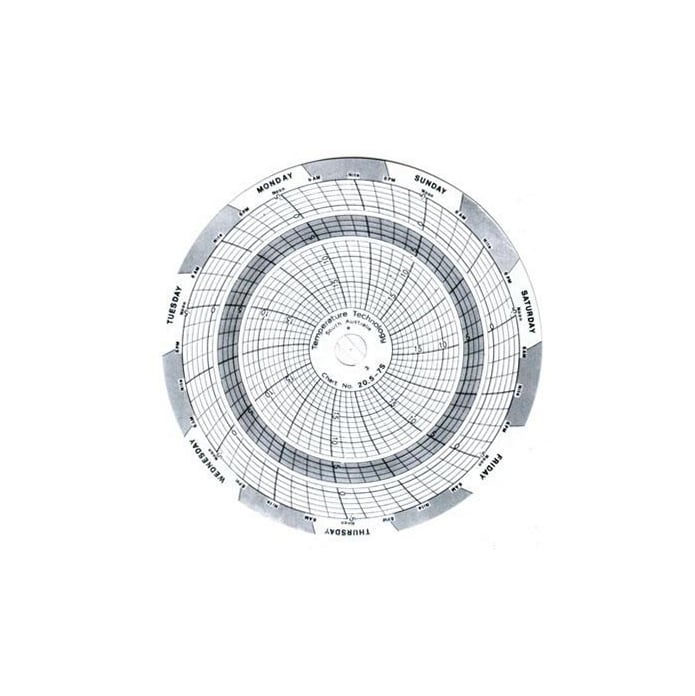

Circular Chart Paper
TT202

TT Series Features

  • High Accuracy
  • Fast Response
  • Compact 100 mm circular chart
  • Lockable
  • Many options
  • Many specialised ranges
  • Disposable pen
Brand: TEMPERATURE TECH
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

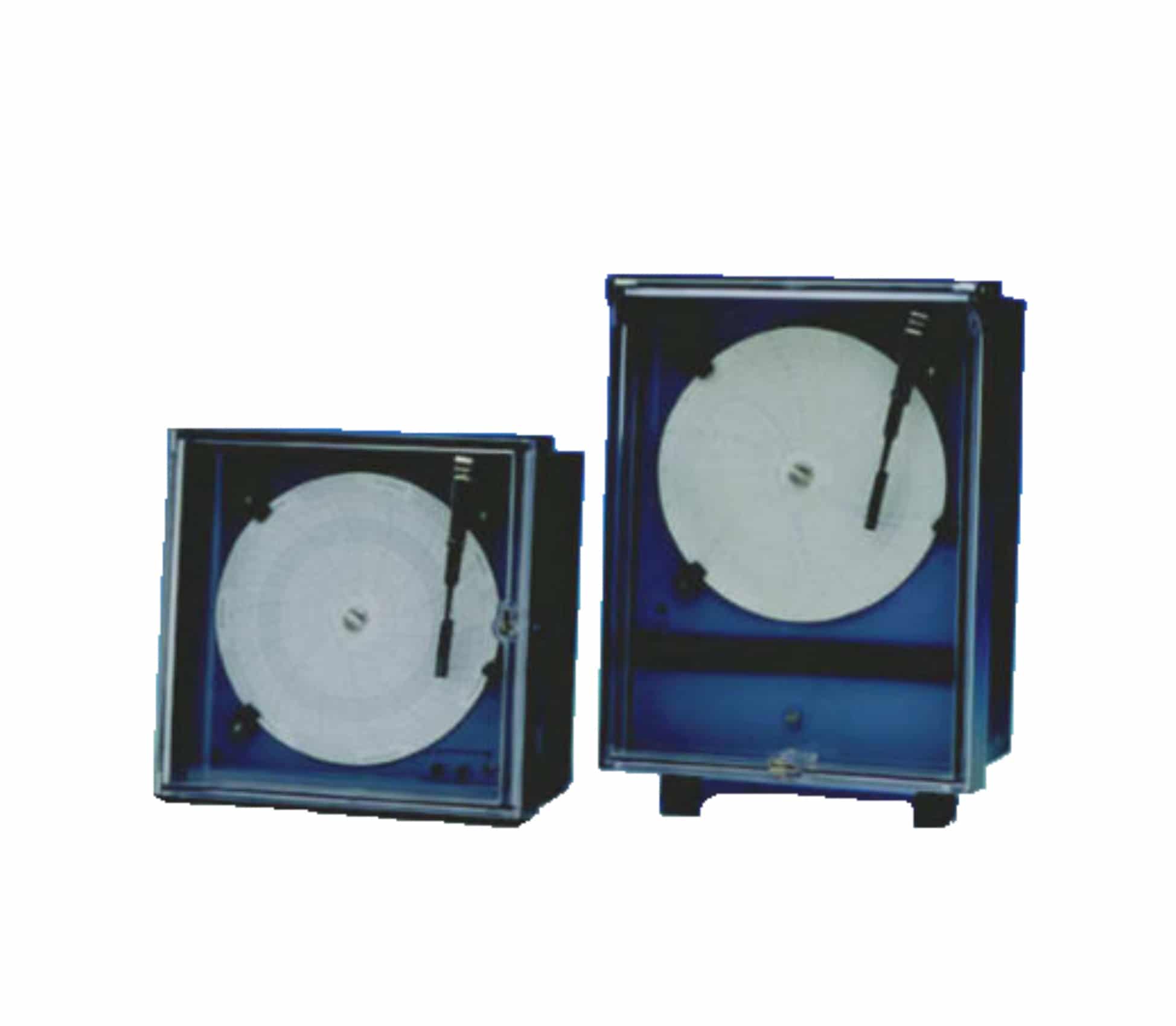

TT260 is a circular chart recorder for fixed mounting and mains power supply. A simple way to provide written proof of compliance with regulations. Easy to operate.

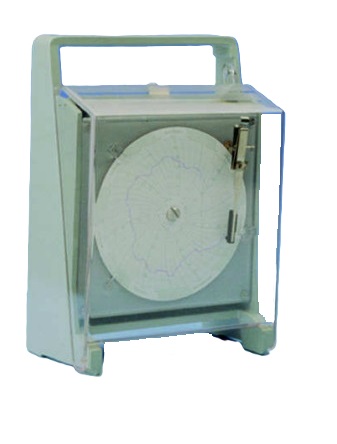

TT202 is a versatile chart recorder for measuring of ambient temperatures. The small size and the unique casing allows it to be used anywhere standing or hanging on a wall.  It is truly portable (battery powered) and does not need any external connections. The TT202 is a mechanical recorder that has a fixed internal sensor, and will record the temperature of where it stands.



Typical Applications:

  • freezers
  • refrigerators
  • cool rooms
  • ovens
  • food processing equipment
  • PH & water quality monitors
TYPETT260
InputsPt100 for temperature, 4-20mA, 0-1V
others on request
Ambient-30 +60C
Operating principlePotentiometric with full
servo system
Power supply12V or 24V AC or DC
Chart size100mm
CasingShock resistant plastic with seal around door
Panel mounting(standard) Front 144 x 144mm
Cut-out in panel138 x 138mm
Wall mounting (optional)Front: 184 x 143 x 90mm
Incl. Brackets: 200 x 143mm
Chart rotation24 hours or 7 days
  • TT260 Chart Recorder 77.12 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
TT-202 Charts

TT-202 Charts. Specify requirement in the order notes.

$88.00
TTP-90 Pen

TTP-90 Pen for TT-260 Chart Recorder

$34.00
TT260

TT260 Chart Recorder. Futher options available on request.

$1,490.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Temperature Technology. Please contact the Temperature Technology distributor in your country if you require sales or service support for Temperature Technology Products.
