Home | Products | Automation | Temperature Limiter / Monitor | TB/TW

TB/TW – Temperature Limiter / Temperature Monitor (701160)

With LCD for mounting on 35mm DIN rails

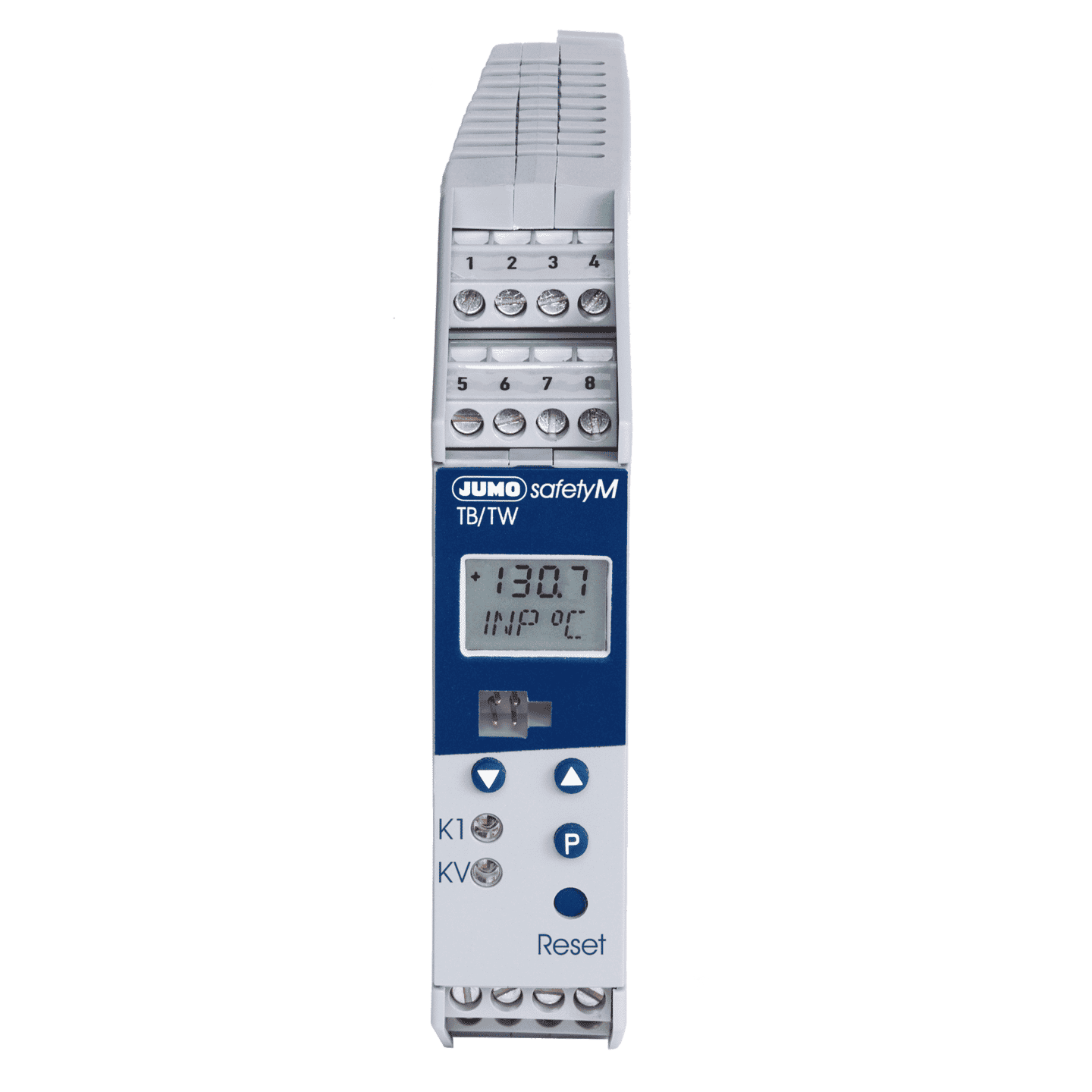

Jumo Temperature Limiter / Monitor TB/TW

TB/TW features

  • Design width 22.5 mm
  • Installation on a top hat rail 35mm
  • Approval as per DIN EN 14 597, cULus
  • Universal measuring input (also standard signal)
  • 2x RTD Pt100 for differential value measurement (also available for Thermocouple)
  • Alphanumerical LCD display
  • Limiter or monitor configurable
  • Temperature monitoring up to max. 2,495°C
  • Pre-alarm absolute or as the offset to the limit value
  • Internal and external reset possible
  • Configuration with setup program
  • JUMO Datasheet; 70.1160
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The JUMO safetyM TB/TW is a freely programmable limiter / monitor. The universal measuring input is freely programmable for RTD temperature probes, thermocouples as well as current and voltage signals. TB/TWs are used to monitor thermal processes in the system for a set limit value.

If this value is exceeded, the installed relay switches the system to an operational safe status and the LED “K1” changes from green to red.
If the system reaches the “Good” range again, the “Reset” key must be unlocked manually with a respective tool for the TB. However, the TW automatically resets without external influence.

For an adjustable temperature, the DC 24V/20mA binary output can put out a pre-alarm prior to reaching the limit value additionally displayed by the LED “KV”.
TB/TW are installed on a top hat rail and wired via screw terminals with a cable cross section of 2.5mm max.

A setup program (and interface cable) is also available for advanced configuration.

Analog inputs
RTD temperature probe

Designation  Measuring range  Accuracy1
Pt 100 EN 60751 -200 … +850°C 0.1%
KTY11-6 PTC -50 … 150°C 1%
Pt 1000 DIN -200 … +850°C 0.1%
Connection types 2-wire, 3-wire circuits
Sampling 210ms
Input filter 2nd order digital filter; filter constant adjustable from 0 to 100secs
Special features 2x Pt100 for differential measurement, display can also be programmed in °F



Thermocouples

Designation  Measuring range  Accuracy1
Fe-CuNi “L” DIN 43710 -200 to +900°C 0.4%
Fe-CuNi “J” EN 60584 -200 to +1200°C 0.4%
Cu-CuNi “U” DIN 43710 -200 to +600°C 0.4%
Cu-CuNi “T” EN 60584 -200 to +400°C 0.4%
NiCr-Ni “K” EN 60584 -200 to +1372°C 0.4%
NiCrSi-NiSi “N” EN 60584 -100 to +1300°C 0.4%
Pt10Rh-Pt “S” EN 60584 0 to +1768°C 0.4%
Pt13Rh-Pt “R” EN 60584 0 to +1768°C 0.4%
Pt30Rh-Pt6Rh “B” EN 60584 300 to 1820°C 0.4%
W3Re-W25Re “D” 0 … 2495°C 0.4%
Cold junction Pt 100, internal
Cold junction accuracy ± 1K
Sampling rate 210 ms
Input filter 2nd order digital filter; filter constant adjustable from 0 to 100secs
Special features also programmable in °F

1. Accuracy refers to the maximum extent of the measuring range.
If the measuring range is smaller, the linearisation accuracy is reduced .

DC voltage, DC current

Measuring range  Accuracy
0 to 20mA, voltage drop < 2 V
4 to 20mA, voltage drop < 2 V
0.2%
0 to 10V, input resistance > 100 kΩ
2 to 10V, input resistance > 100 kW
0.1%
Scaling freely programmable within the limits
Sampling rate 210 ms
Input filter 2nd order digital filter; filter constant adjustable from 0 to 100secs



Measuring circuit monitoring

  RTD temperature probe
and KTY11-6
Twin thermocouples  Thermocouples  Current 0 to 20 mA, 4 to 20mA
Voltage 0 to 10 V, 2 to 10 V
Overrange and underrange is detectedLEDs K1 and KV light up; “1999” flashes in the display
Probe and lead break is detectedLEDs K1 and KV light up; “1999” flashes in the display; relay K1 is active. is detected at 4 to 20mA
and 2 to 10V
Probe short circuit is detected
LEDs K1 and KV light up;”1999″ flashes in the display
Relay K1 is inactive
is not detected LEDs K1 and KV light up;
“1999” flashes in the display
Relay K1 is inactive



Binary input

connection  Function
1 floating contact Configurable unlocking, keyboard inhibit, level inhibit



Relay- and Binary output

1 relay 100000 operations at a contact rating of:
AC 230/24V; 3(0,5)A; cosφ=1 (≥ 0,6); 50Hz
DC 24V; 3(0,5; τ=7ms)AUL60730
AC230V; 3A
D300; 30k
AC/DC 24V; 3A, minimum current: DC 24V, 100mAContact protection circuit:
safety fuse 3.15AT, installed in the pole contact arm within the instrument
1 Binary output 24 V DC / 20mA logic signal, short-circuit proof



Voltage supply

voltage supply 20 – 30V AC/DC, 48 …63 Hz
110V/240V AC, +10% /-15%
Power consumption 5 VA



Approval/Marks

approval
marks
Inspection authority  Certificate/Inspection
numbers
inspection basics  valid for
DIN DIN CERTCO TW/TB 1206 08 DIN EN 14597 all instrument versions
c UL us Underwriters Laboratories 20091123-E325456 UL 60730-2-9 all instrument versions



Test voltages to EN 60730, Part 1

Between input or output and supply
– at 110 – 240 V AC supply +10% /-15% 3.7kV/50Hz
– at 20 – 30V AC/DC supply, 48 – 63 Hz 3.7kV/50Hz



Electrical safety

Clearances / creep paths
Mains to electronic components and probe ≥ 6 mm / ≥ 8 mm
Mains to the relay ≥ 6 mm / ≥ 8 mm
Relay to electronic components and probe ≥ 6 mm / ≥ 8 mm
Electrical safety according to DIN EN 14597 (DIN EN 60730-2-9)
Overvoltage category III, pollution degree 2
Protection type I with internal separation to SELV current circuits



Environmental influences

Ambient temperature range 0 … +55°C
Storage temperature range -30 … +70°C
Temperature error ≤ ± 0.005% / K dev. from 23°C1 for resistance thermometers
≤ ± 0.01% / K dev. from 23°C1 for thermocouple, current, voltage
Climatic conditions 85% rel. humidity, no condensation
(3K3 with extended temperature range to EN 60721)
EMC to EN 14597 and standards from the EN 61326 series of standards
Interference emission Class B
Interference immunity Test level for safety, control and regulating instruments (RS) to EN 14597

1. All details refer to the full scale value

Housing

Material polyamide (PA 6.6)
Screw terminal 0.2 – 2.5mm2 screw terminal
Mounting on 35mm x 7.5mm DIN rail to EN 60715
Mounting position vertical
Weight approx. 160g
Protection type IP 20 to EN 60529
  • Jumo Temperature Limiter-Monitor TB-TW - Operating Instructions 1.11 MB
  • Jumo Temperature Limiter-Monitor TB-TW - Data Sheet 562.67 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
701160-23

Temperature Limiter/ Monitor; Limiter (inverse), Pt100 (3-wire), 110~240V.
701160/8-0153-001-23

$1,008.00
701160-25

Temperature Limiter/ Monitor; Limiter (inverse), Pt100 (3-wire), 20~30Vac/dc
701160/8-0153-001-25

$1,008.00
00456352.

PC Interface with converter USB/TTL

$507.00
-00514193

Setup Software and Interface cable for advanced configuration

$260.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.

Product Bottom

Not sure what you need? Ask us anything!

  • (03) 343-0646Christchurch
  • (09) 827-1930Auckland
  • [email protected]

Primary Sidebar

Footer

Who we are

  • Products
  • About
  • Contact us

Intech Christchurch

59 Mandeville Street
Riccarton, Christchurch 8011

Phone: (03) 343 0646

Email: sales@intech.co.nz

Intech Auckland

70 Central Park Drive
Henderson, Auckland 0610

Phone: (09) 827 1930

Email: aucksales@intech.co.nz

Newsletter

Subscribe to our newsletter and get new information every month.

Copyright © 2019–2025 Intech Instruments Ltd. All rights reserved.
