SR Series – Sanitary RTD Assembly

Sanitary Pt100 Probes

SR Series Features:

RTD Pt100 DIN Standard element
3-Wire RTD configuration
Temperature range from -70~260ºC
All sheath material 316S
Environmental Rating IP67
Assembly:

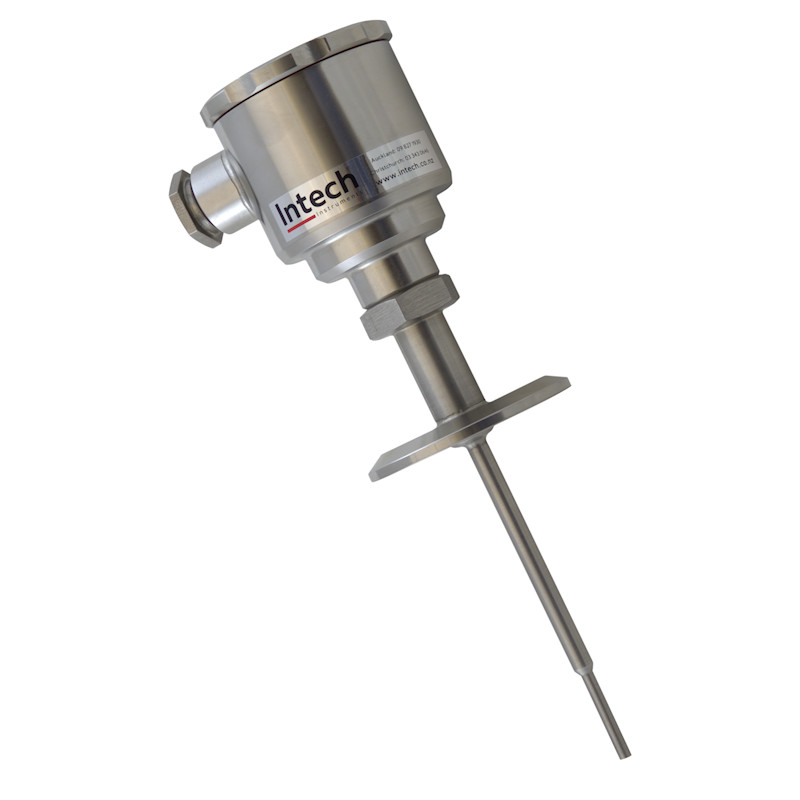

– Triclover 1.5”, 2”, 2.5”, 3”

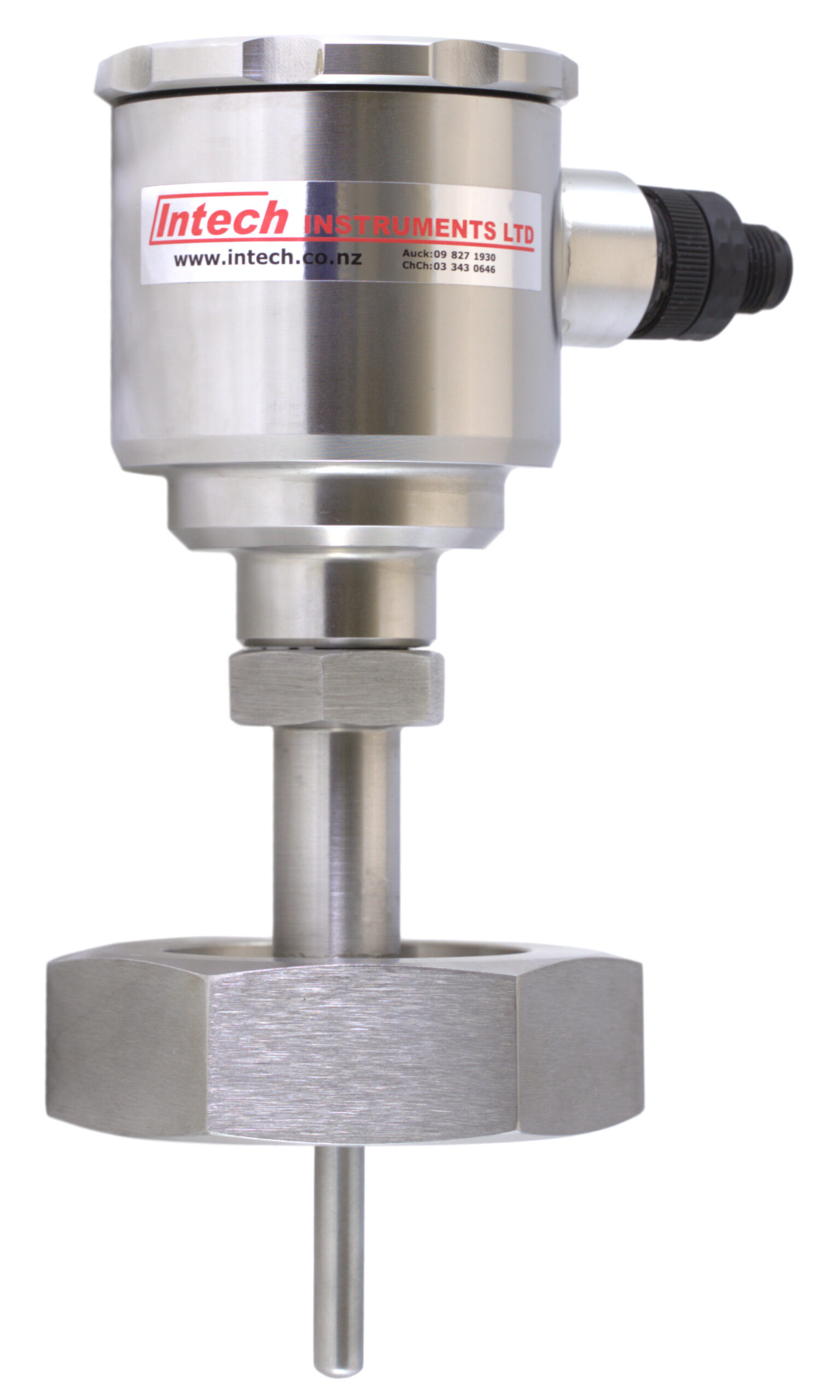

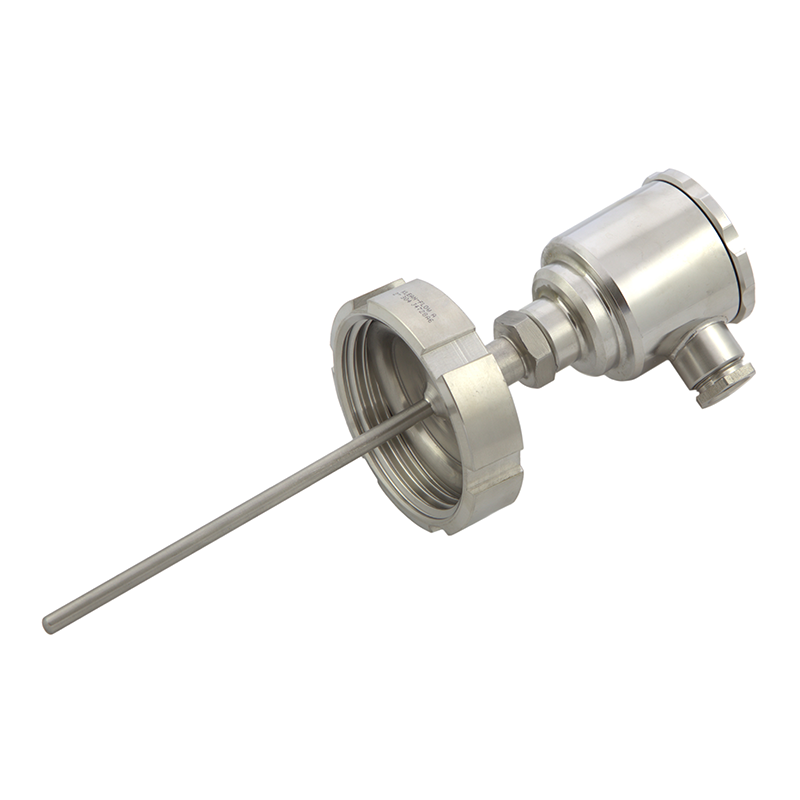

– RJT 1.5”, 2”, 2.5”, 3”

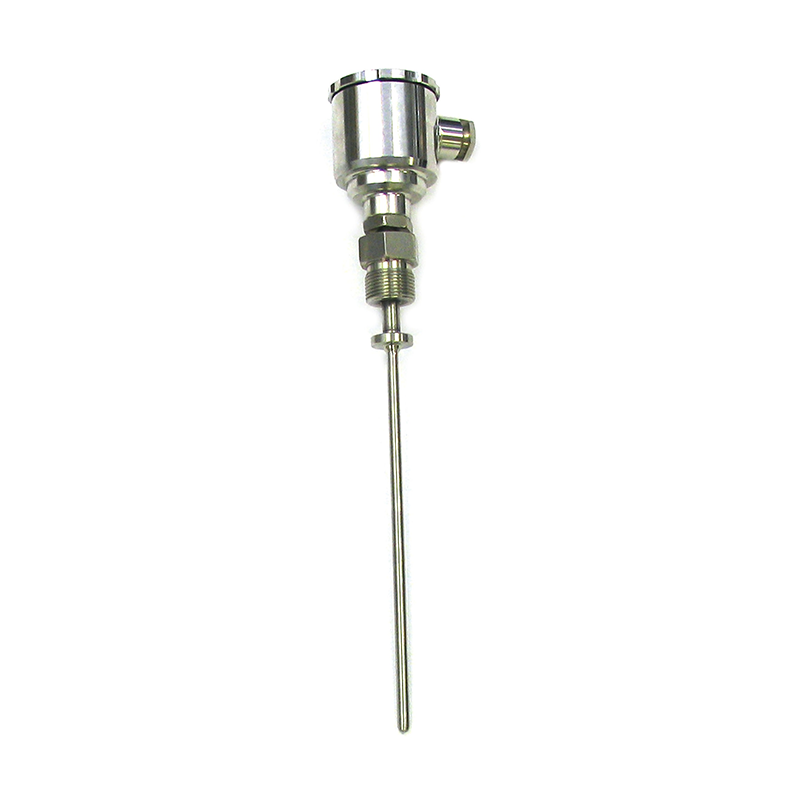

– Running nut 1/2” (Code 0.5) , 3/4” BSPP (Code 0.75)
Probe diameters from 3mm
Mineral insulated optional

Options:

Optional fast response tip (Add $60.00)
Duplex sensor (Add $75.00)
Standard large machined SS head, other terminal heads available:
– Large Polypropylene – White (Less $144.00)
– Large Aluminium (Optional) (Less $150.00)
Optional head-mount transmitters:
– XU2HN, Non Isolated (Add $120.00)
– XU2HI, Isolated (Add $230.00)
– LPN-R-H, Non Isolated (Add $139.00)
– dTRANS T07 HART®/ Ex Rated (Add $915.00)

Brand: INTECH
Available on request

Request a quote
Scroll down for product range

Ordering Information
Documents

SR SERIES
Technical Specifications and Ordering Information
Item	Code										Specification
Model	SR										Sanitary Probe with Standard Tip
	SRF										Sanitary Probe with Fast Response Tip
Element		S									Single (Pt100)
		D									Duplex (2 x Pt100)
		X									Others
Outer Diameter			6.4-								Millimetres (Standard)
			X-								Other (Specify)
Sheath Length				75-							Millimetres (Standard)
				xxx-							Millimetres (Specify)
Sanitary Fitting					TC						Triclover® (Triclamp)
					RJT						Ring Joint Type (Slotted Nut)^
					RN						Running Nut
Sanitary Fitting Size (See table below for sizes in mm)						1-					Inch
						1.5-					Inches
						2-					Inches
						2.5-					Inches
						0.75-					Inches BSPP (For Running Nut option only) 0.5″BSPP also available (Code 0.5)
Protection Head							SS-				Large Machined Stainless Steel
							LP-				Large Polypropylene (White)
							LA-				Large Aluminium (Option)
Transmitter								N-			None
								H-			XU2HN Non Isolated Head Transmitter
								I-			XU2HI Isolated Head Transmitter
								L-			LPN-R-H Non Isolated Head Transmitter
								E-			dTRANS T07-B-Ex In-Head Transmitter with HART and Ex Rating
Transmitter Range									N-		None
									55-		-50~50°C
									05-		0~50°C
									10-		0~100°C
									15-		0~150°C
									20-		0~200°C
									25-		0~250°C
									xx-		Special range (please specify)
Accessories/Options (add as many as required)										N	None
										M	M12 Plug fitted, IP67*
										MC	M12 Plug fitted, IP67 with Angled PVC Cable*
										S	Short Socket for RN Running Nut option**
										L	Long Socket for RN Running Nut option**
										T	Teflon Crush Washer**
										CT	Temperature Report ***
^ Hex Nut also available on request.
* Available with SS head only.
** For RN Running Nut fitting only.
*** Only available for SRF Fast Response Tip Probes.
Model No. Example: SR-S6.4-75-TC1.5-SS-H-10-N (Sanitary RTD probe with Single element, 6.4mm diameter, 75mm sheath length, Triclamp 1.5″ fitting, Stainless steel head and XU2HN Transmitter set to 0~100°C).

Pipe Size	RJT dia	TriClamp dia
1/2″ DN15	—	25.2mm
3/4″ DN20	—	25.2mm
1″ DN25	41.2mm DN25	50.5mm
1 1/2″ DN40	53.9mm DN38	50.5mm
2″ DN50	66.7mm DN51	64.0mm
2 1/2″ DN63	79.4mm DN63	77.5mm
3″ DN75	92.0mm DN76	91.0mm

Temperature Conversion Table - RTD 60.39 KB

Product Range

Product Range:
Code	Specifications	Price
SR-S6.4-75-TC2-SS-N-N-N	6.4mm x 75mm, 2″ Triclover fitting, Large Stainless Steel head, Sanitary Probe	$396.00
SR-S6.4-75-TC2-LP-N-N-N	6.4mm x 75mm, 2″ Triclover fitting, Large Polypropylene head, Sanitary Probe	$290.00
SR-S6.4-75-RJT2-SS-N-N-N	6.4mm x 75mm, 2″ RJT fitting, Large Stainless Steel head, Sanitary Probe	$452.00
SR-S6.4-75-RJT2-LP-N-N-N	6.4mm x 75mm, 2″ RJT fitting, Large Polypropylene head, Sanitary Probe	$337.00
SR-S6.4-75-RN0.75-SS-N-N-N	6.4mm x 75mm, 3/4″ BSPP Running Nut fitting, Large Stainless Steel head, Sanitary Probe	$452.00
SR-S6.4-75-RN0.75-LP-N-N-N	6.4mm x 75mm, 3/4″ BSPP Running Nut fitting, Large Polypropylene head, Sanitary Probe	$382.00
SRF- Option	Fast Response Tip to any of the Sanitary Probes above. (Add price)	$60.00
Duplex	Duplex Sensor to any of the Sanitary Probes above. (Add price)	$75.00
M12 Connection	M12x1 IP67 Male plug fitted	$35.00
00409334.	M12x1 Plug 2m PVC Angled Cable – Unvented	$48.00
SRNSS	Short socket for Running Nut Sanitary Probe	$85.00
SRNLS	Long socket for Running Nut Sanitary Probe	$125.00
Certificate	Fast Response Certificate (Fast response tip probes only) – Please note Labour is extra.	$65.00
SR-MISC	SR Custom Made Probe – If you need something that is not here. Please confirm your Ordering code when ‘Confirming Order’ under ‘Your Notes’ area.	$0.00

Note: The above covers the more common RTD probes. We can supply probes to your particular specification. Please see Ordering information and contact us.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
