Home | Products | Data Acquisition | Data Loggers | Software and Accessories | Seahorse Logger Enclosure

Seahorse Logger Enclosure

IP66 weatherproof enclosure.

Seahorse Enclosure
Seahorse Logger Enclosure Intech 2

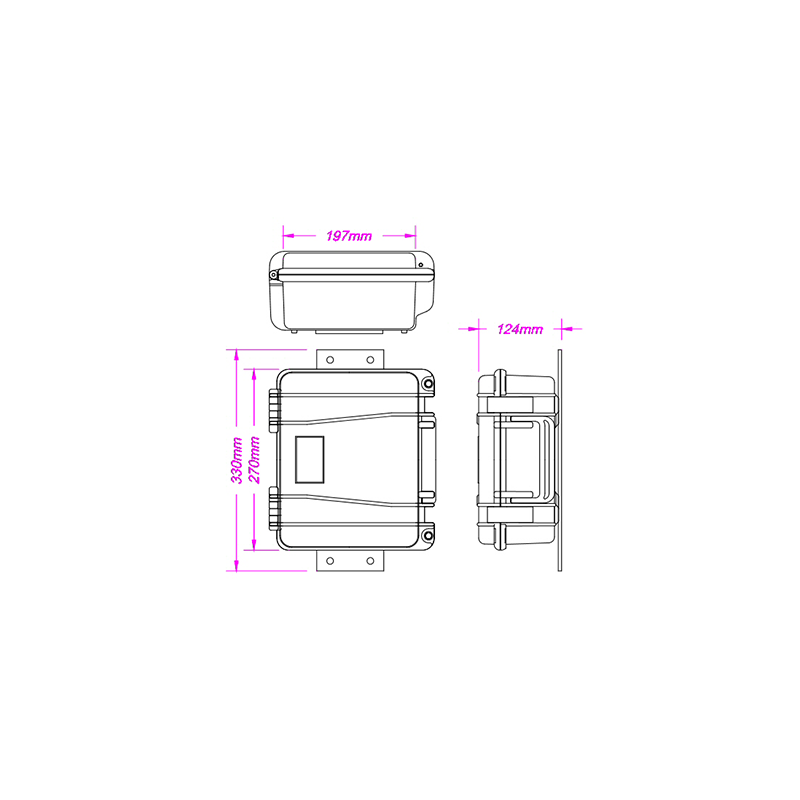

seahorse logger enclosure dimensions

Seahorse Logger Enclosure

  • watertight
  • airtight
  • dustproof
  • crush resistant

Designed to keep your logging equipment safe from the elements

Brand: INTECH
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs

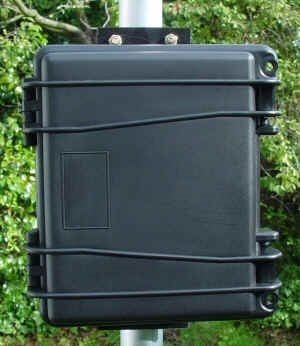

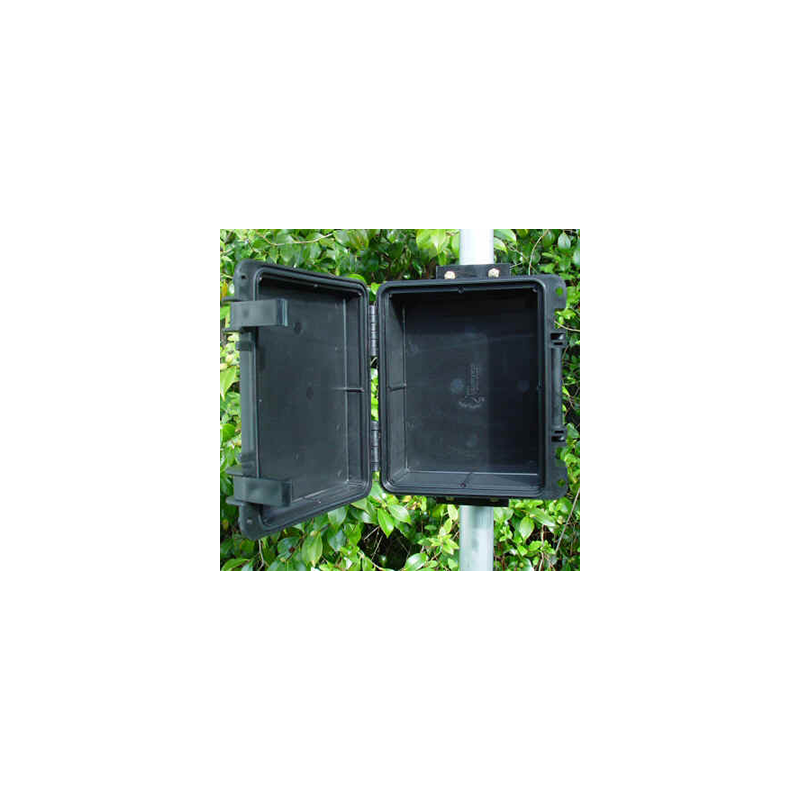

The Seahorse Logger Enclosure is a weatherproof lockable equipment housing designed to be mounted on posts or 50mm poles. The enclosure is a Seahorse SE300 Equipment Case that has had a plastic mounting plate welded to it. It is used to house loggers, power supplies, modems, alarm systems and sensor electronics.
Seahorse equipment cases are watertight, airtight, dustproof, crush resistant and designed to keep your logging equipment safe from the elements

The Seahorse Logger Enclosure is supplied with 2 U bolt clamps for attaching the enclosure to a 50mm outside diameter pipe.

The case can be bolted or padlocked closed. The bolts and padlocks are no supplied with the enclosure.

Weatherproof communication and power supply sockets are fitted to the underside of the enclosure.

Sockets for probes and sensors can be fitted to the case as required.

Seahorse

Colour Black
Outside Height including mounting plate 330mm
Outside Height excluding mounting plate270mm
Outside Width 197mm
Outside Depth124mm
Inside Height243mm
Inside Width188mm
Inside Depth 100mm
Weight 1.3Kg

Product Range

Product Range:
CodeSpecificationsPriceQuantity
Seahorse

IP66 Weatherproof Enclosure

$340.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
