Home | Products | Temperature | RTD Probes | RTD Probes with Leads | RL Series

RL Series – RTD Temperature Probes with Leads (Tip rated to 260°C)

Pt100 Temperature Probes with integral cable

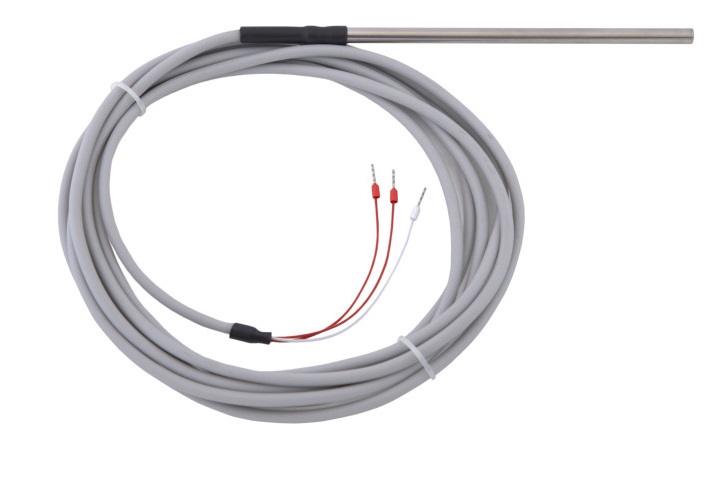

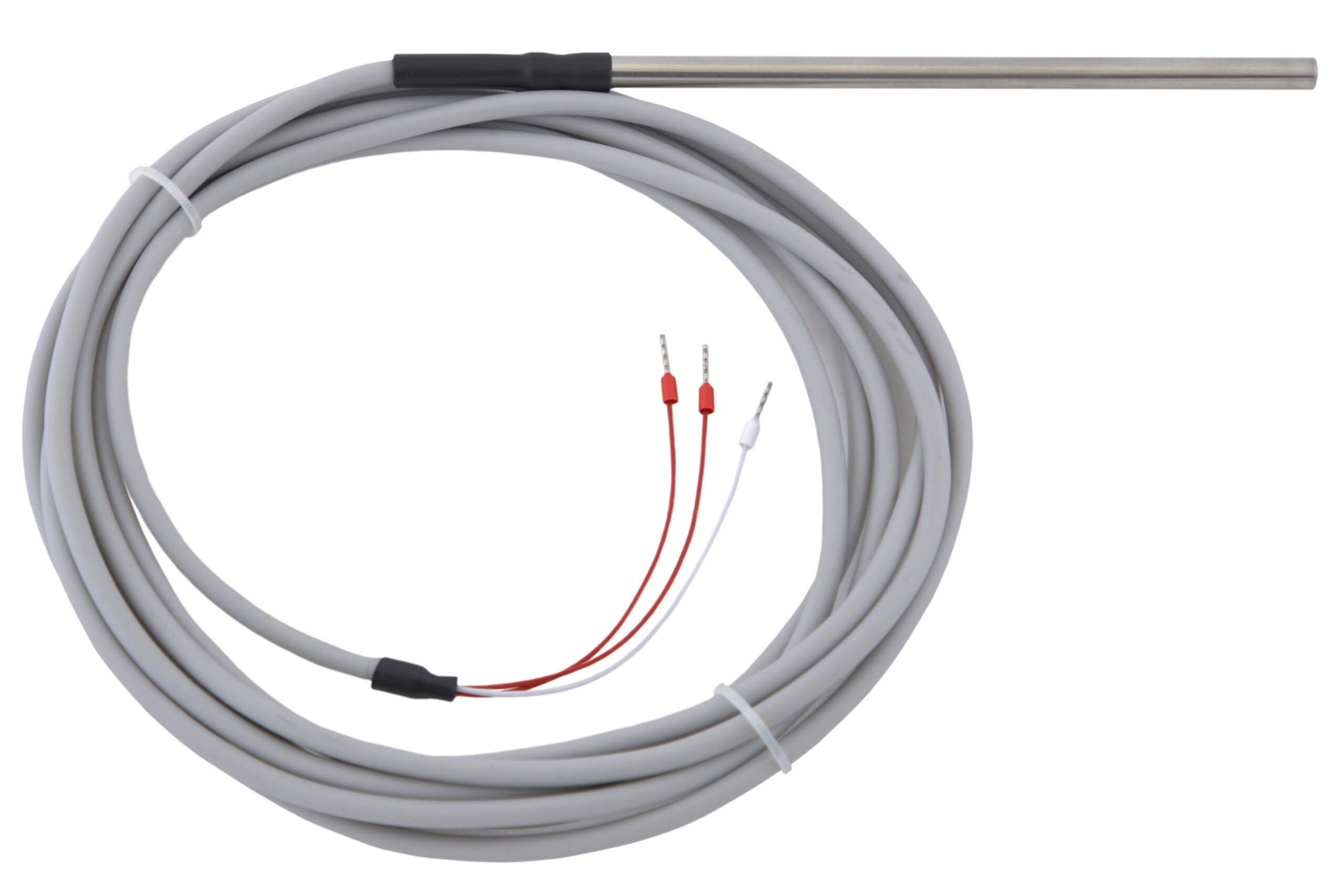

RL-S-6.4-150-C-3000 Temperature Probe

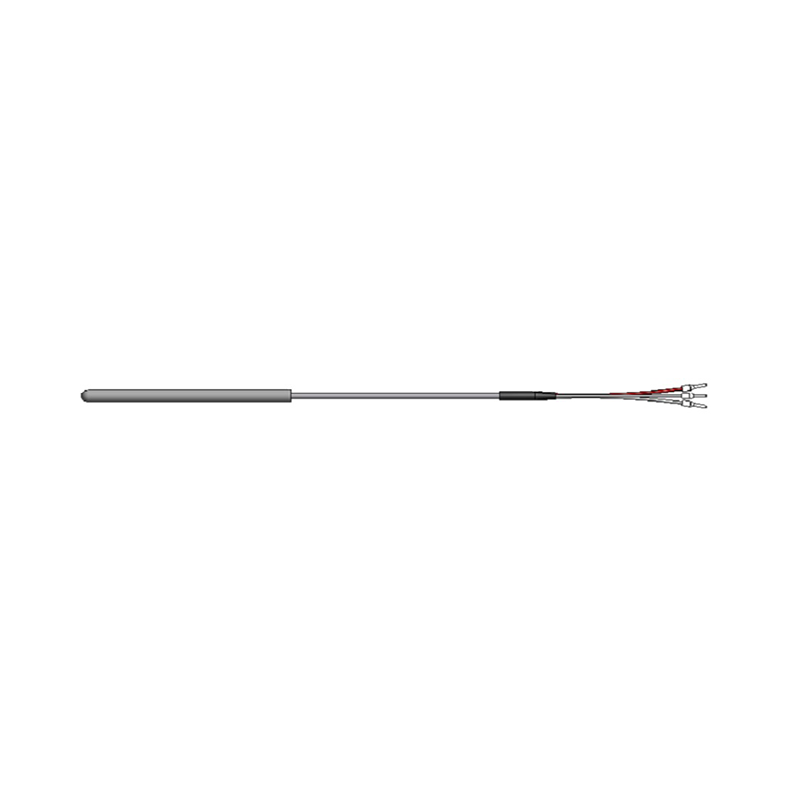

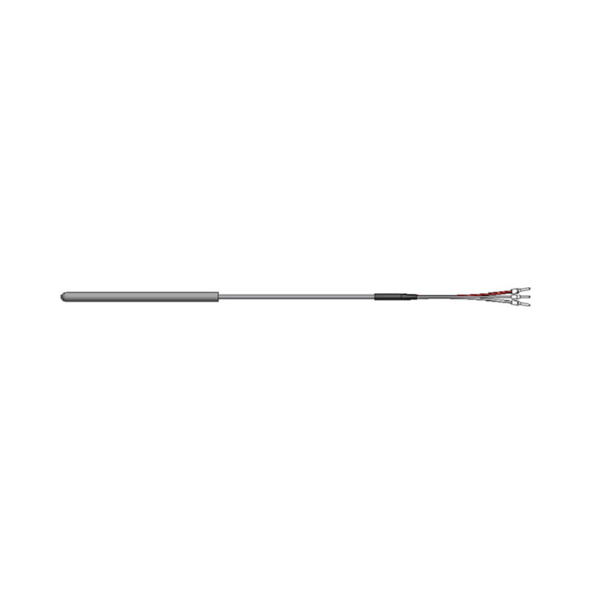

Pt100 Temperature Probe with Lead - Intech - RL Series

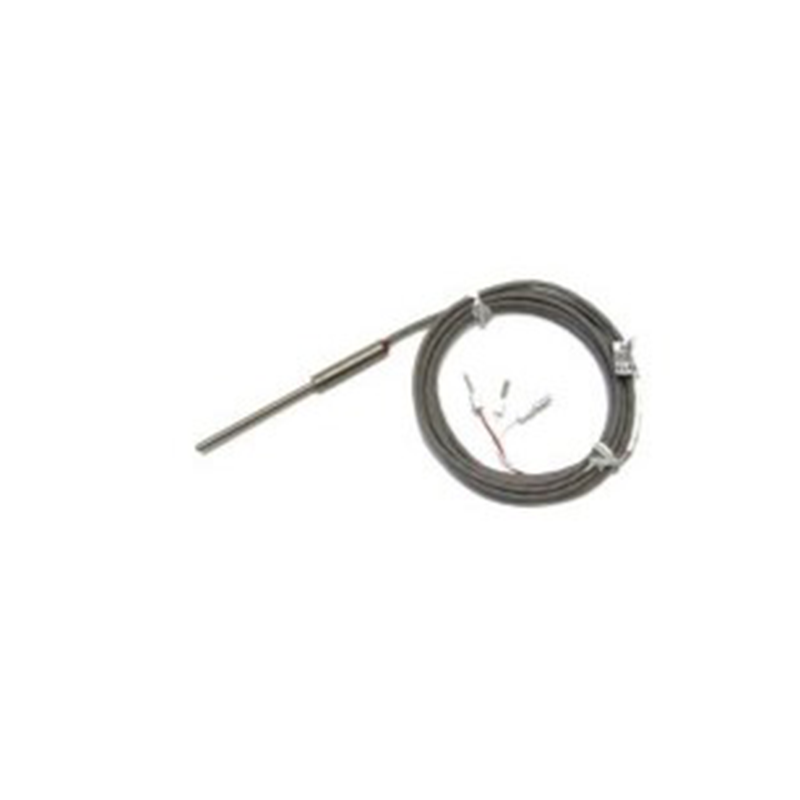

Small Diameter Probe With Collar Intech RL-Series

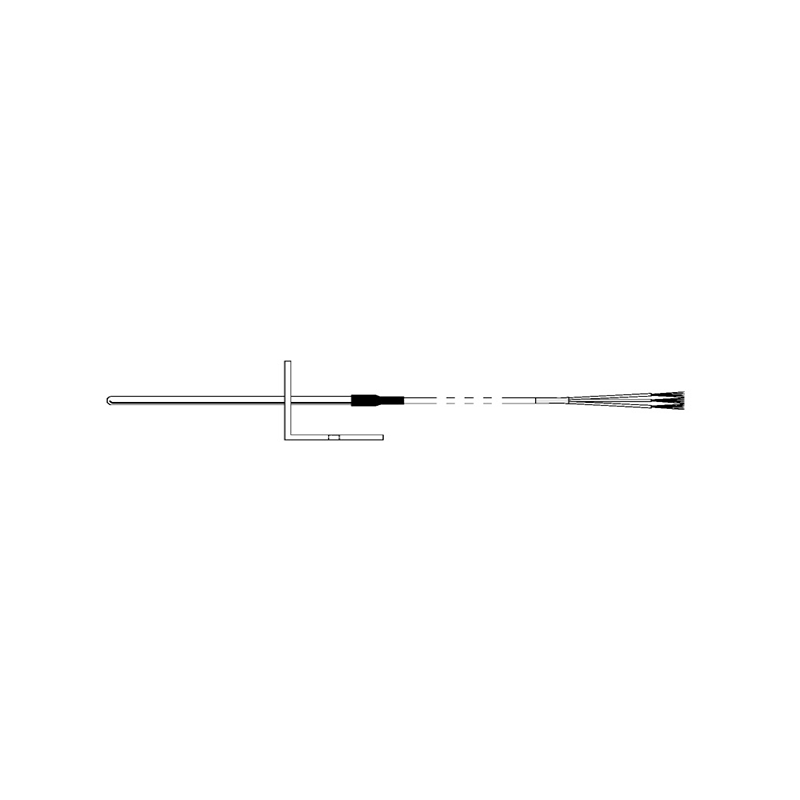

Probe With Wall Mount Bracket Intech RL Series

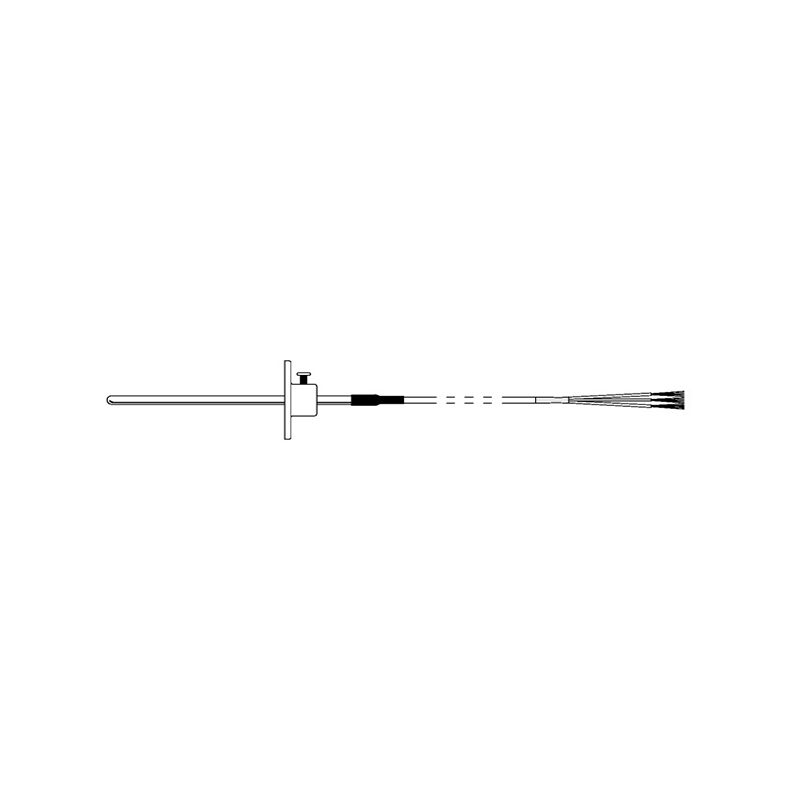

Probe With Optional Sliding Flange Intech RL Series

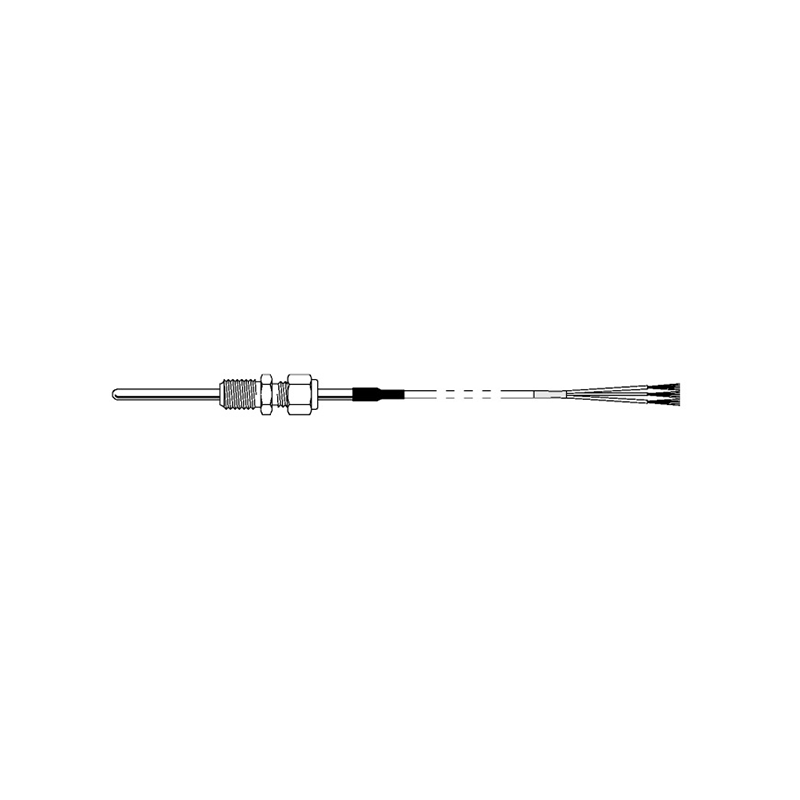

Probe With Optional Compression Fitting Intech RL Series

RL Series Features

  • Pt100, Class A Temperature Sensor (Others available)
  • Temperature ranges from -30~+180°C
  • Probe Material 316SS
  • Probe diameters from 3.3mm to 7.9mm
  • Various Lead Insulation Materials (PVC, PTFE, Silicone Rubber)
  • Various RTD transmitters are also available to suit your particular application
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Ordering Information
  • Documents
RL Series
Item Code Specification
Model RL- RTD Temperature Probe with Lead
Element S Single (PT100)
D Duplex (2 x PT100)
X Other (eg: PT1000)
Outer Diameter 3- Millimetres (316SS)
4.5- Millimetres (316SS)
6- Millimetres (316SS)
6.4- Millimetres (316SS) 1/4″
7.9- Millimetres (316SS) 5/16″
X- Other (4mm, 5mm, 3/16″, 3/8″, 1/2″ 20G)
Sheath Length XXX- Millimetres (Specify)
Lead A- 3 Core PVC 16/0.2 (-10~80°C)
B- 4 Core PVC Screened 7/0.2 (-10~80°C)
C- 3 Core Silicone Rubber 14/0.15 (-30~180°C)
D- 3 Core PTFE 7/0.2 (-190~260°C)
E- 3 Core PTFE SSOB (-190~260°C)
F- 4 Core FG/FG SSOB (0~400°C)
Lead Length XXX- Millimetres (Specify)
Options N None
FR Fast Response Tip
W Wall Mount Bracket
Plug Options also available: M12, RTD plug 3 pine and Switchcraft IP rated plug
Model No. Example: RL-S6.4-100-C-3000-N
(RTD probe with lead, single element, 6.4mm diameter, 100mm sheath length and 3m of 3 Core Silicone rubber cable)
  • Temperature Conversion Table - RTD 60.39 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
RL-S6.4-50-C-3000-N

RL Temperature Probe 6.4mm x 50mm, 3m Silicone cable (-30~180°C)

$74.00
RL-S6.4-100-C-3000-N

RL Temperature Probe 6.4mm x 100mm, 3m Silicone cable (-30~180°C)

$74.00
RL-S6.4-150-C-3000-N

RL Temperature Probe 6.4mm x 150mm, 3m Silicone cable (-30~180°C)

$74.00
RL-S6.4-150-C-5000-N

RL Temperature Probe 6.4mm x 150mm, 5m Silicone cable (-30~180°C)

$78.00
RL-S6.4-150-C-10000-N

RL Temperature Probe 6.4mm x 150mm, 10m Silicone cable (-30~180°C)

$92.00
RL-S6.4-150-C-20000-N

RL Temperature Probe 6.4mm x 150mm, 20m Silicone cable (-30~180°C)

$125.00
RL-S6.4-100-D-5000-N

RL Temperature Probe 6.4mm x 100mm, 5m PTFE cable (-100~260°C)

$196.00
RL-S6.4-150-D-10000-N

RL Temperature Probe 6.4mm x 150mm, 10m PTFE cable (-100~260°C)

$280.00
RL-X6.4-100-C-5000-N

RL Temperature Probe with Pt1000 Sensor, 6.4mm x 100mm, 5m Silicone cable (-30~180°C)

$160.00
RL-S3-50-D-2000-N

Powder Packed RL Temperature Probe 3mm x 50mm, 2m PTFE cable (-70~260°C)

$143.00
RL-S3-100-D-2000-N

Powder Packed RL Temperature Probe 3mm x 100mm, 2m PTFE cable (-70~260°C)

$158.00
RL-S4.7-100-D-2000-N

Powder Packed RL Temperature Probe 4.7mm x 100mm, 2m PTFE cable (-70~260°C)

$146.00
RL-S6.4-70-A-2000-W

RL Probe Temperature with 30x30mm Wall Mount Bracket, 6.4mm x 700mm, 2m 3Core PVC Cable (-10~80°C)

$110.00
RL-MISC

RL Custom Made Temperature Probe – If you need something that is not here.
Please confirm your Ordering code when ‘Confirming Order’ under ‘Your Notes’ area.

$0.00

Note: The above covers the more common RTD Temperature probes with leads. We can supply probes to your particular specification. Please see Ordering Information and contact us.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
