Home | Products | Signal Transmitters & Conditioners | 3 & 4 Wire Transmitters | Potentiometer | PI-P

PI-P – Potentiometer to DC Isolating Transmitter

Programmable Isolating 3 Wire Potentiometer Input to DC Current or DC Voltage Output Transmitter

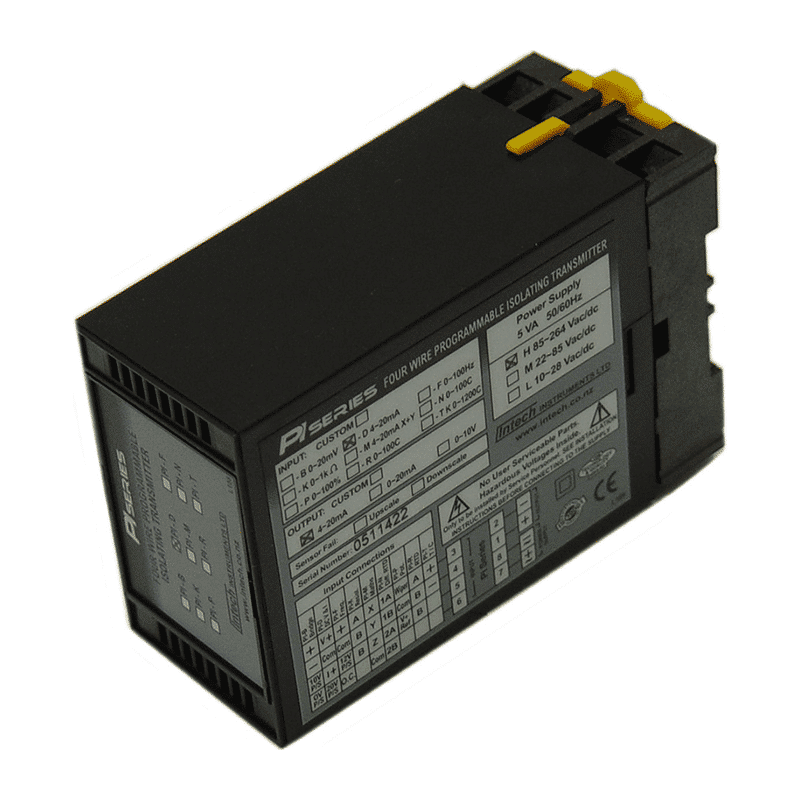

Intech PI-P Potentiometer to DC Transmitter

PI-P Features

  • Field programmable input and output ranges
  • Bi-Polar output ranges
  • Isolated input to output 1.6kV
  • High accuracy 0.1%
  • Universal AC/DC power supply
  • Selectable 3 second input damping
  • Compact DIN rail mount enclosure
  • Available standard or special calibration
  • Resistance range from 0~200 ohms to 0~1M ohms
  • Programmable input span from 0~10% to 0~100%
  • Elevated zero or suppressed span available
  • Programmable output ranges from 0~500mV to ±12V, 0~1mA to ±20mA
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Technical Specs
  • Documents
TYPEPI-P
PotentiometerInput3 Wire Potentiometer
Excitation Voltage = 2.5Vdc
Min Potentiometer Resistance = 200Ω
Max Potentiometer Resistance = 1MΩ
Field Programmable Zero From 0 to 100%
Field Programmable Span From 10 to 100%
OutputVoltageField Programmable From 500mV to ±12Vdc
Max Output Drive = 10mA
CurrentField Programmable From 1 mAdc to ±20mAdc
Maximum Output Drive = 10Vdc (500Ω @ 20mA)
PowerH85~264Vac/dc; 50/60Hz; 5VA
M22~85Vac/dc; 50/60Hz; 5VA
L10~28Vac/dc; 50/60Hz; 5VA
Circuit Sensitivity<±0.001%/V FSO Typical
Accurate to<±0.1% FSO Typical
Linearity & Repeatability<±0.1% FSO Typical
Ambient Drift<±0.01%/C FSO Typical
Noise Immunity125dB CMRR Average (1600Vdc Limit)
EMC CompliancesEmissions EN 55022-A, Immunity EN 50082-1, <1% Effect FSO Typical
Safety ComplianceEN 60950
Mains Isolation250Vac
Isolation Test VoltagesMains to Input/Output 3kVac 50Hz for 1min; Input to Output 1.6kVdc for 1min
Response Time200msec Typical (10 to 90% 50msec Typical)
Operating Temperature & Humidity0°C~60°C (Storage Temp. -20°C~80°C) 5~85% RH Max, Non-Condensing
Dimensions and MountingL=80, W=50, H=120mm Mounts on 35mm Symmetrical Mounting Rail
  • Intech PI-P Potentiometer to DC Transmitter - Installation Guide 79.90 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
PI-P-X

Potentiometer Transmitter Standard Calibration: Input 0~100%; Output 4~20mA; High Voltage Power Supply

$572.00

Other ranges available on request.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
