Home | Products | Temperature | Thermocouple Probes | Thermocouples with Connectors | MTC Series

MTC Series – Thermocouples with Connectors

Mineral Insulated Thermocouples with connectors

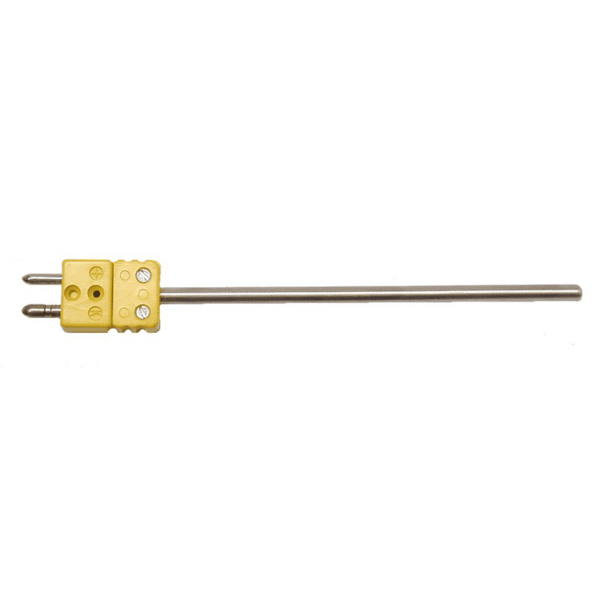

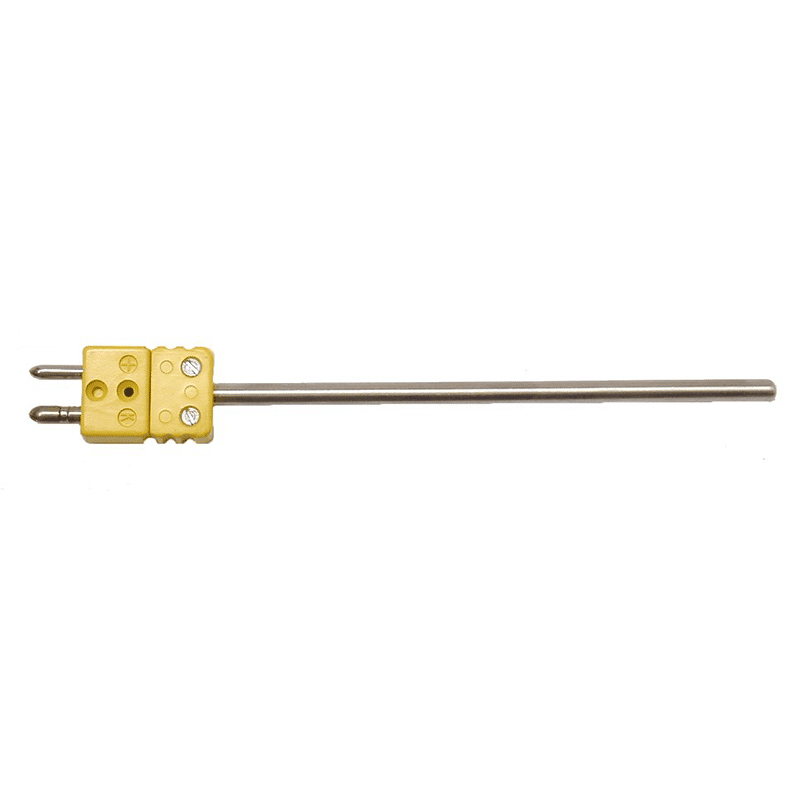

MTC Thermocouple Probe with Standard Plug

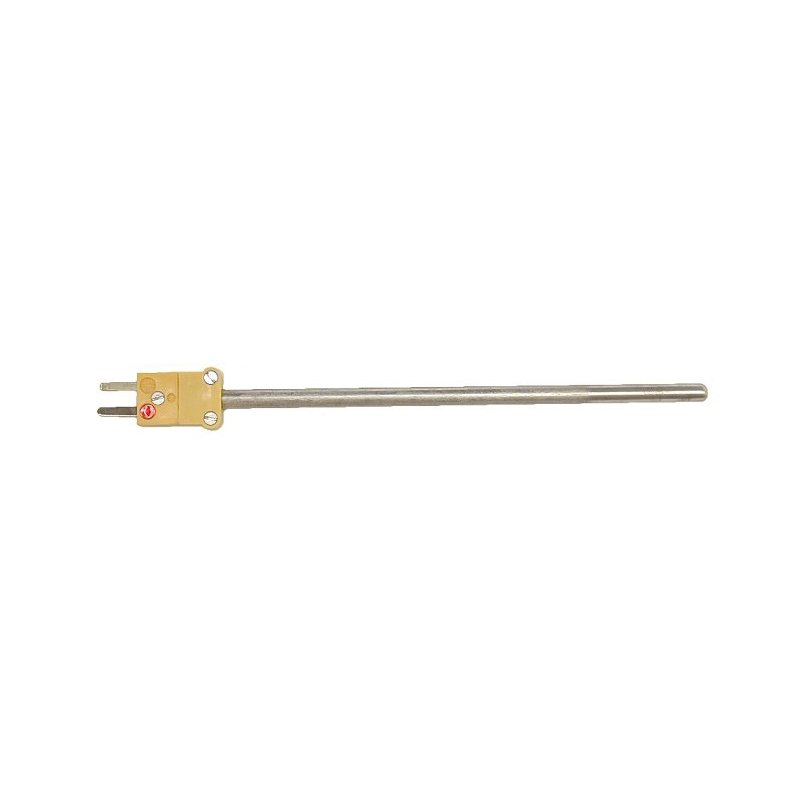

Thermocouple Probe With Mini Plug Intech MTC-Series

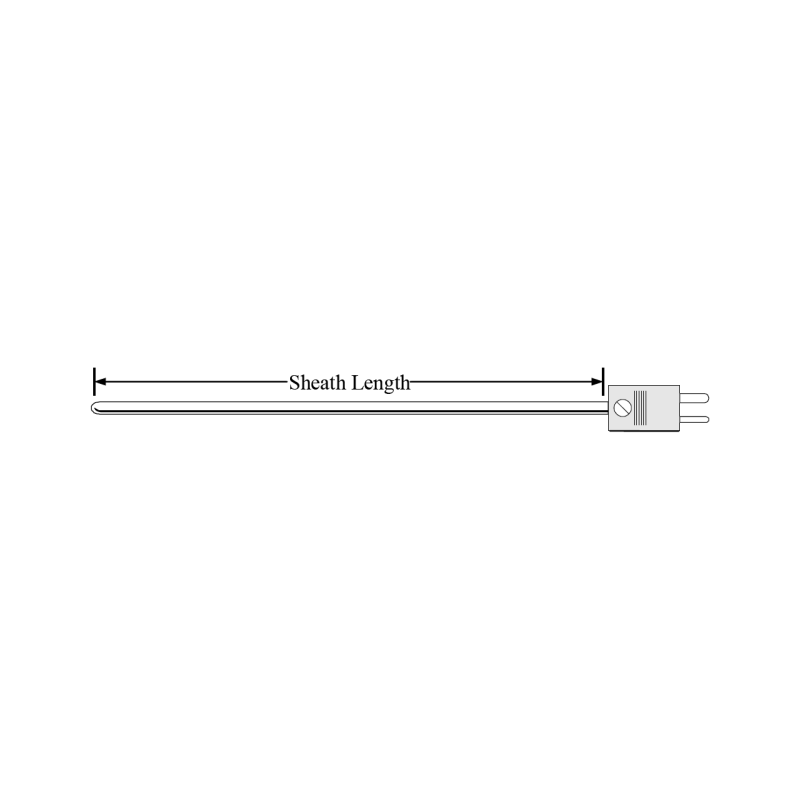

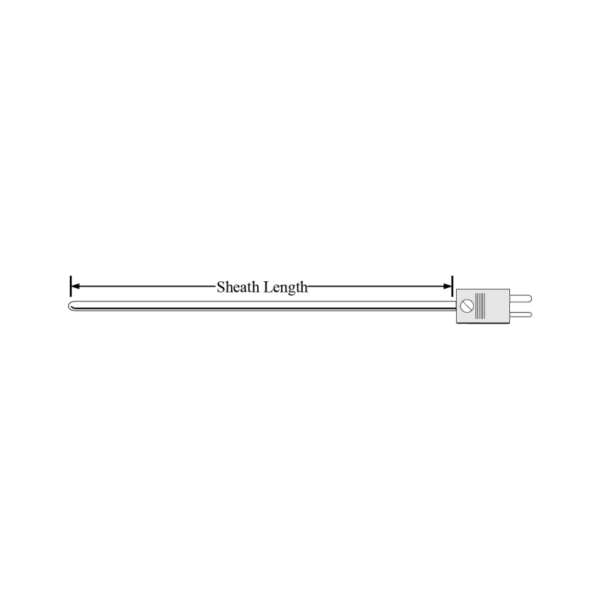

Thermocouple Probe - With Miniature Plug Connector Intech MTC-Series

MTC Series Features

  • K, J, T and N calibration
  • Temperature ranges from -270 to + 1600°C
  • Isolated and bonded hot junctions
  • Various sheath materials for different environments (Inconel 600, 310SS, Cupro Nickel, Nicrobell)
  • Sheath diameters from 1.0mm to 6.0mm
  • Various plug and jack connectors
Brand: INTECH
Usually in stock

See Temperature Tables for Thermocouple HERE

Request a quote
Scroll down for product range
  • Product Details
  • Ordering Information

The MTC Series Thermocouples come in a variety of different diameters, sheath lengths and materials to suit your requirements. They can be fitted with a range of different connectors and jacks. The MTC series can be calibrated for temperature ranges  from -270 to + 1600°C.

MTC SERIES
Technical Specifications and Ordering Information
Item Code  Specification
Model MTC- Mineral Insulated Thermocouple with Connector
Hot Junction I Isolated Junction (Standard)
B Bonded Junction
Outer Diameter 1.0 Millimetres
1.5 Millimetres
3.0 Millimetres
4.5 Millimetres
6.0 Millimetres
Calibration K Thermocouple (-270~1260°C)
J Thermocouple (-210~750°C)
T Thermocouple (-270~370°C)
N Thermocouple (-270~1300°C)
2K Duplex Thermocouple
2J Duplex Thermocouple
2T Duplex Thermocouple
2N Duplex Thermocouple
Sheath Material 310- Stainless Steel (K, N) 1100°C
600- Inconel ® (K, N) 1200°C
NCB- Nicrobell ® (K, N) 1250°C
610- Ceramic (Max 1400°C) (Type R only)
710- Ceramic (Max 1600°C) (Type R only)
X- Other
Sheath Length xxx- Millimetres
Connector X None
MP Mini Plug (180°C)*
MJ Mini Jack (180°C)*
P Standard Plug (180°C)
J Standard Jack (180°C)
XP High Temperature Plug (260°C)**
XJ High Temperature Jack (260°C)**
DP Duplex Plug
DJ Duplex Jack
* 1.5mm and 3.0mm diameter.
** Standard size Plugs and Jacks only.


Model No. Example: MTC-I3.0K310-300MP (Mineral Insulated Thermocouple with Connector, Isolated Junction, 3mm diameter, type K, 300mm Stainless Steel sheath with Mini Plug connector).

Product Range

Product Range:
CodeSpecificationsPriceQuantity
MTC-I3.0K310-300-MP

MTC Probe 3.0mmØ x 300mm, Type K, Stainless Steel, Mini Plug

$98.00
MTC-I3.0K600-400-XP

MTC Probe 3.0mmØ x 400mm, Type K, Inconel, High Temperature Plug

$148.00
MTC-I3.0K600-1000-XP

MTC Probe 3.0mmØ x 1000mm, Type K, Inconel, High Temperature Plug

$174.00
MTC-I3.0K600-2000-XP

MTC Probe 3.0mmØ x 2000mm, Type K, Inconel, High Temperature Plug

$224.00
MTC-I6.0K310-300-P

MTC Probe 6mmØ x 300mm, Type K, Stainless Steel, Standard Plug

$115.00
MTC-MISC

MTC Custom Made Probe – If you need something that is not here.
Please confirm your Ordering code when ‘Confirming Order’ under ‘Your Notes’ area.

$0.00

Note: The above covers the more common Thermocouple probes. We can supply probes to your particular specification. Please see Ordering information and contact us.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
