Home | Products | Temperature | RTD Probes | RTD Probes with Leads | MRL Series

MRL Series – Mineral Insulated RTD Probes with Leads (Tip Rated to 500°C)

Pt100 Probes with integral cable and maximum temperature rating (at probe tip) 500°C

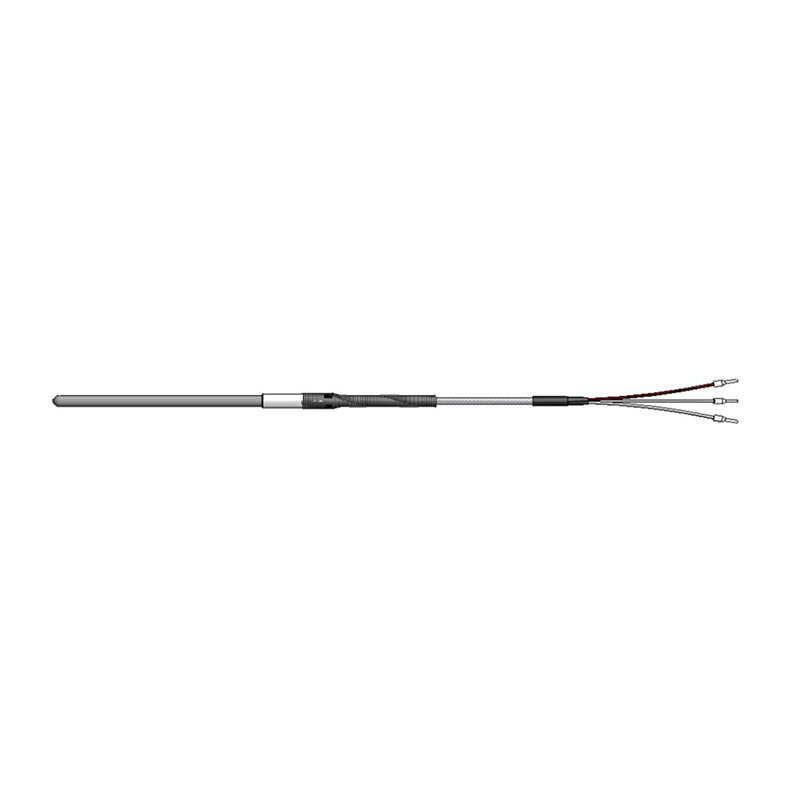

Mineral Insulated RTD Probe with Lead

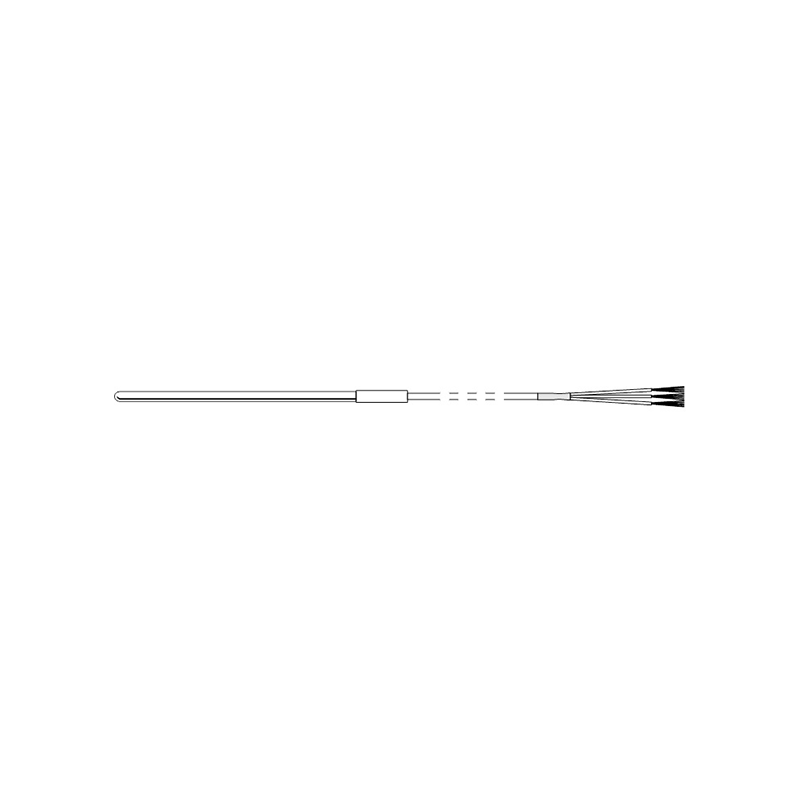

Epoxy Filled Potseal Collar Intech MRL Series

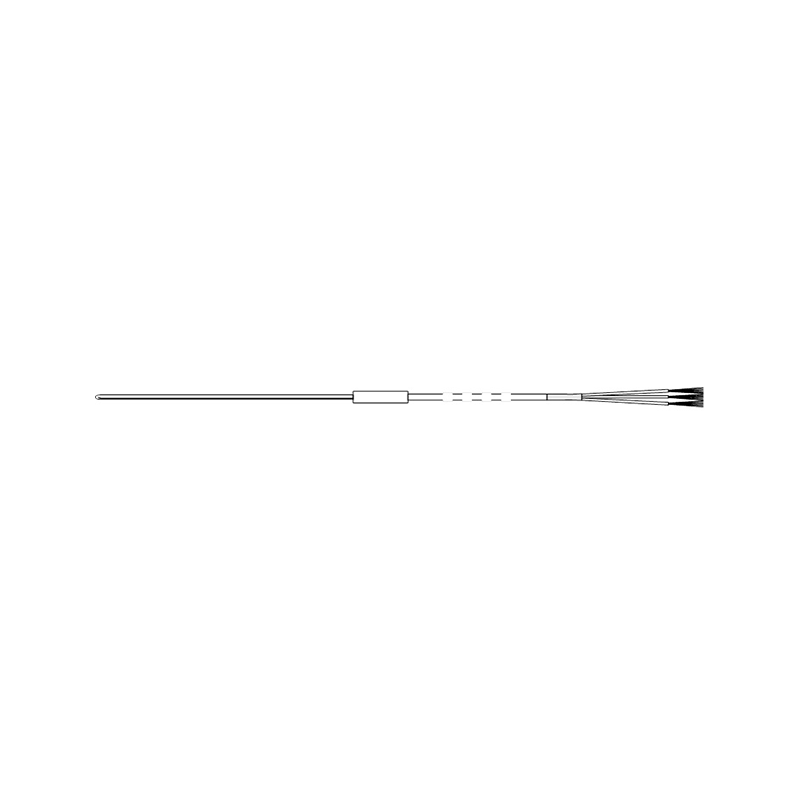

Small Diameter Sheath Intech MRL-Series

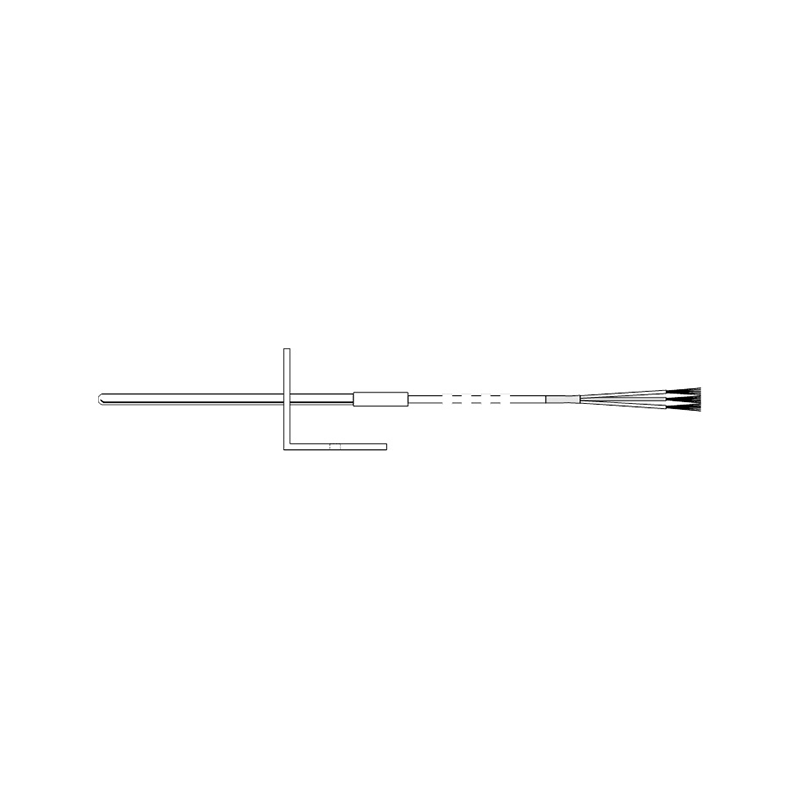

MRL Probe With Wall Mount Bracket Intech MRL Series

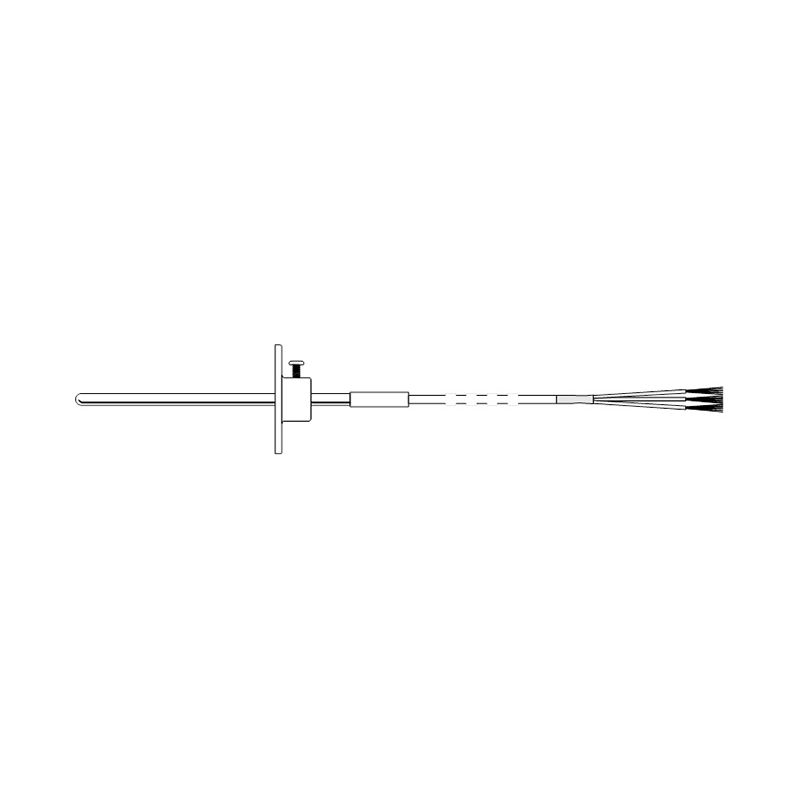

MRL Probe With Optional Sliding Flange Intech MRL Series

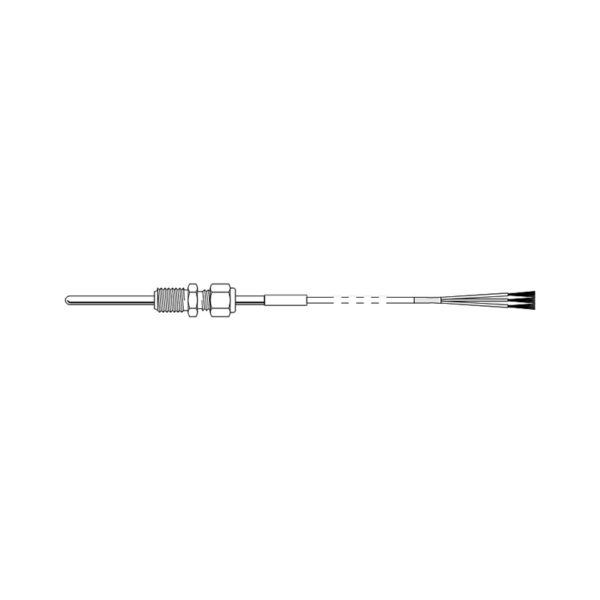

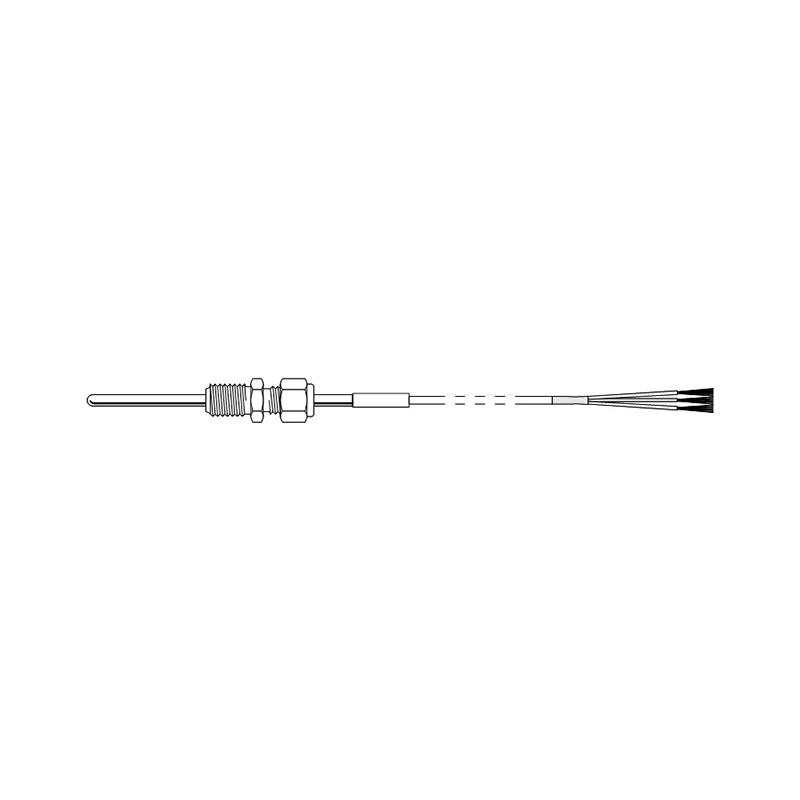

MRL Probe With Optional Compression Fitting Intech MRL Series

Features

  • Pt100, Class A Temperature Sensor (Other available)
  • Maximum Temperature rating (at probe tip) 500°C
  • Probe material 316SS
  • Probe diameters of 3mm and 6mm
  • Potseal rated to 300°C
  • Various Lead Insulation Materials (PVC, PTFE, Silicone Rubber)
  • Various RTD transmitters are also available to suit your particular application
Brand: INTECH
Available on request
Request a quote
Scroll down for product range
  • Ordering Information
  • Documents
MRL SERIES
Technical Specifications and Ordering Information
Item Code Specification
Model MRL- Mineral Insulated RTD Probe with Lead
Element S Single (Pt100)
D Duplex (2 x Pt100)
X Other (Pt1000 / Pt100 Band 5)
Outer Diameter 3- Millimetres (316SS)
6- Millimetres (316SS)
X- Other
Sheath Length xxx- Millimetres
Lead A- 3 Core PVC 16/0.2 (-10~80°C)
B- 4 Core PVC Screened 7/0.2 (-10~80°C)
C- 3 Core Silicone Rubber 14/0.15 (-30~180°C)
D- 3 Core PTFE 7/0.2 (-190~260°C)
E- 3 Core PTFE SSOB (-190~260°C)
F- 4 Core FG/FG SSOB (-60~400°C)
Lead Length xxxx- Millimetres
Options N None
R Fast Response Tip
S Support Spring
W Wall Mount Bracket


Model No. Example: MRL-S6-100-C-3000-N (Mineral Insulated Probe, single element, 6mm diameter, 100mm sheath length and 3m of 3 Core Silicone rubber cable)

  • Temperature Conversion Table - RTD 60.39 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
MRL-SX-XX-XX

Please refer to Ordering Information

$0.00

Note: Please contact us for more Mineral Insulated Probe options

All prices are in NZ$, and GST exclusive and are subject to change without notice.
