Home | Products | Signal Transmitters & Conditioners | 2 Wire Transmitters - Loop Powered | RTD Pt100/Pt1000 | LPN-R-H

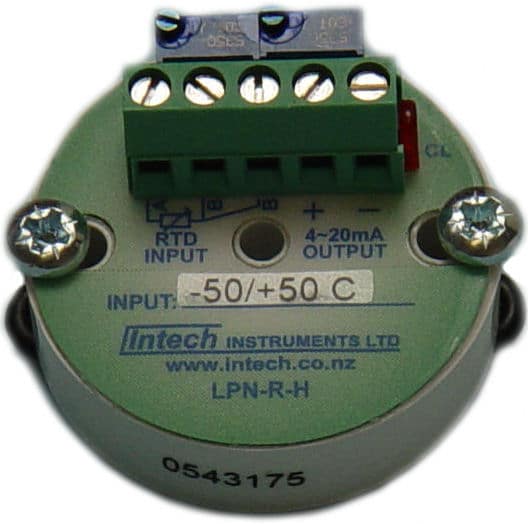

LPN-R-H – RTD In Head Transmitter

RTD Pt100 to DC Non-Isolating Transmitter For mounting in a Probe Head

LPN-R-H

LPN-R-H Features

  • Field programmable
  • RTD Pt100 standard input
  • Programmable ranges within -100~600°C
  • High accuracy 0.1%
  • Linear with temperature
  • LED indication of loop current (CL)
  • Easy to install
  • Compact industrial head mount enclosure
  • Dual mounting holes for 33mm or 40mm
  • Available standard or special calibration
  • Reverse polarity protection
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Technical Specs
  • Documents
TYPELPN-R-H
 RTD InputPt100 DIN (3 Wire type)
Sensor Current0.5mA Nominal
Lead Wire Resistance5Ω/Wire max
Zero Range-100°C~100°C
Span Range30°C~600°C
Output2 wire 4~20mA (Loop Powered)
Power Supply10~33Vdc (Loop Powered)
Supply Voltage Sensitivity<±0.005%/V FSO
Output Load Resistance700Ω @ 24Vdc (50Ω/V above 10Vdc)
Maximum Output CurrentLimited to <26mA Typical.
Sensor FailUpscale23mA Min, Typical
Downscale3.8mA Max, Typical
EMC Emissions & Immunity ComplianceEN 55022-A & EN 50082-1
Response time200msec Typical (From 10 to 90 % 50msec Typical)
Accurate to<±0.1% FSO Typical
Linearity & Repeatability<±0.1% FSO Typical
Ambient Drift<±0.01%/C FSO Typical
RF Immunity<1% Effect FSO Typical
Operating Temperature-20°C~80°C
Storage Temperature-30°C~90°C
Operating Ambient Humidity5~95% RH Max, Non-condensing
  • Intech LPN-R-H RTD Transmitter - Installation Guide 53.29 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
LPN-R-H-100

In head transmitter, Pt100 0°C~100°C Input, Upscale Break

$150.00
LPN-R-H-150

In head transmitter, Pt100 0°C~150°C Input, Upscale Break

$150.00
LPN-R-H-200

In head transmitter, Pt100 0°C~200°C Input, Upscale Break

$150.00
LPN-R-H-050

In head transmitter, Pt100 -50°C~50°C Input, Upscale Break

$150.00
00352463.

Foot – DIN Rail mounting element for In Head Transmitters

$36.00

Other ranges available on request

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
