| TYPE | LPI-F-D | |
| Frequency Input | 2 Wire Sine / Square / Pulse, Uni-polar / Bi-polar (Signals<2Vpp Bipolar Only) | |
| Min Input Signal | 10mVpp @ 100Hz, 100mVpp @ 1kHz, 1Vpp @ 10kHz Typical | |
| (Offset Jumper=1 for V<2Vpp) | ||
| Max Input Signal | 100Vpp | |
| (Offset Jumper=0 for V≥2Vpp) | ||
| Span | Field Programmable From 15Hz to 10kHz | |
| (100Hz Typical Max, With Debounce Jumper=1) | ||
| Adjustable Input Impedance From 1kΩ to 100kΩ | ||
| Open Collector Connected to + Frequency Input with 3k3 Resistor | ||
| Output | mA | 2 wire 4~20mA (Loop Powered) |
| mV Test | 40~200mV ±1% @ 4~20mA Other Test Voltages Available e.g. 1~5V Note: mV Test Increases Power Supply & Decreases Load Resistance |
|
| Power Supply | 8~33Vdc | |
| Supply Voltage Sensitivity | <±0.005%/V FSO | |
| Output Load Resistance | 800Ω @ 24Vdc (50Ω/V Above 8Vdc) | |
| Maximum Output Current | Limited to <28mA | |
| Accurate to | <±0.1% FSO Typical | |
| Linearity & Repeatability | <±0.1% FSO Typical | |
| Ambient Drift | <±0.01%/C FSO Typical | |
| Noise Immunity | 125dB CMRR Average (2.0kVac RMS Limit) | |
| EMC Compliances | Emissions EN 55022-A, Immunity EN 50082-1, <3% Effect FSO Typical | |
| Isolation Test Voltages | 2000Vac/dc Input to Output for 1min | |
| Response Time | ≤1sec Typical ≤5sec Typical with Damping On | |
| Operating Temperature | 0°C~70°C | |
| Storage Temperature | -20°C~80°C | |
| Operating Humidity | 5~85%RH Max, Non-Condensing | |
| Dimensions | LPI-F-D | L=79, W=22.5, H=85mm |

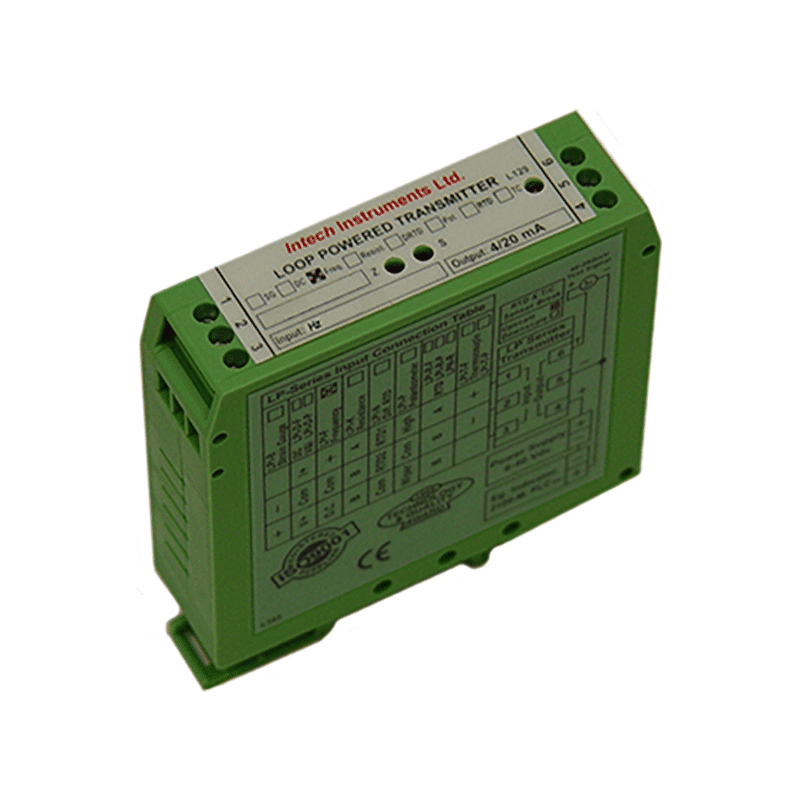

LPI-F – Frequency Transmitter
Frequency to DC Isolating Signal Transmitter
LPI-F Features
- Field Programmable Input Ranges
- Isolated Input to Output 2.0kV
- Impedance Matching on Input
- Crystal Locked F-V
- Selectable Damping
- High Accuracy 0.1%
- 40~200mV Output Test Signal
- LED Indication of Loop Current
- Easy to Install
- Compact DIN Rail Mount Enclosure
- Available Standard or Special Calibration
- Reverse Polarity Protection
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LPI-F-X | Frequency Transmitter, Standard 0~100Hz Input, Programmable | $450.00 | |||||||||
Other ranges available on request.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Intech is our own brand of products, for all aftersales and technically support please contact us.
