| TYPE | LPI-B |
| Input | mV: Field Programmable: 1~1000mVdc and Bipolar |
| Minimum Input Resistance = 1MΩ | |
| Maximum Over-range = 30Vdc Continuous | |
| 3 Second Input Damping Selectable With S3-1 | |
| Output | mA: 2 wire 4~20mA (Loop Powered) |
| mV Test: 40~200mV ±1% @ 4~20mA. Other Test Voltages Available. e.g. 1~5V | |
| Note: mV Test Increases Power Supply & Decreases Load Resistance | |
| Power Supply | 8~33Vdc |
| Supply Voltage Sensitivity | <±0.005%/V FSO |
| Output Load Resistance | 800Ω @ 24Vdc (50Ω/V Above 8Vdc) |
| Maximum Output Current | Limited to <28mA |
| Accurate to | <±0.1% FSO Typical |
| Linearity & Repeatability | <±0.1% FSO Typical |
| Ambient Drift | <±0.02%/C FSO Typical |
| Noise Immunity | 125dB CMRR Average (2.0kVac RMS Limit) |
| EMC Compliances | Emissions EN 55022-A, Immunity EN 50082-1, <1% Effect FSO Typical |
| Isolation Test Voltages | 2000Vac/dc Input to Output for 1min |
| Response Time | 200msec Typical (10 to 90% 50msec Typical) |
| Operating Temperature | 0°C~70°C |
| Storage Temperature | -20°C~80°C |
| Operating Humidity | 5~85%RH Max, Non-Condensing |
| Dimensions and Construction | L=79, W=22.5, H=85mm. Polyamide Thermoplastic Rail Mount Enclosure |

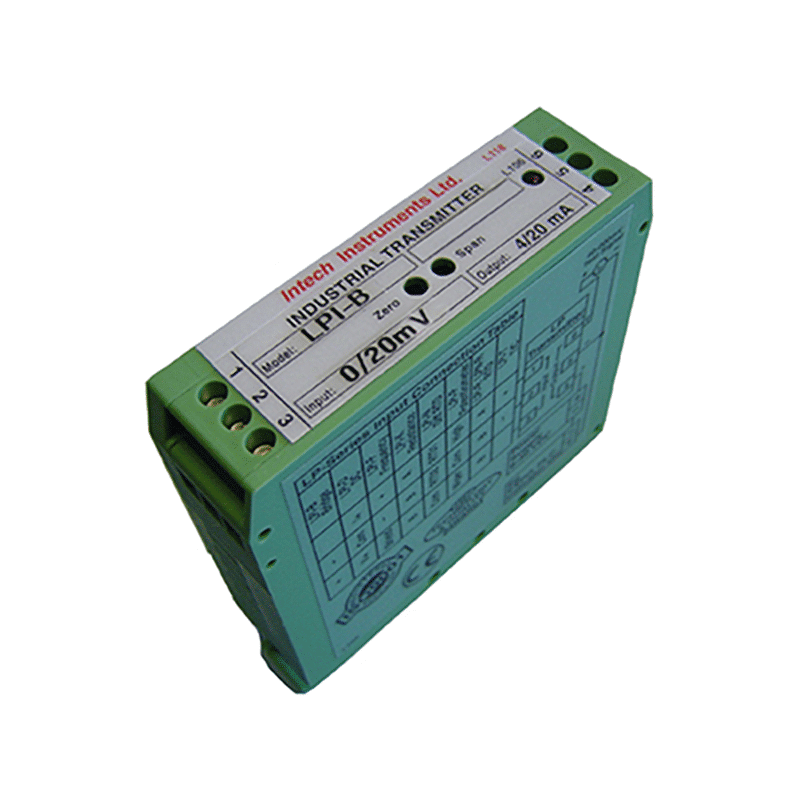

LPI-B – 2 Wire Bridge Isolated Transmitter
Bridge to DC Isolating Signal Transmitter
LPI-B Features
- Field programmable Bi-Polar input ranges
- Isolated input to output 2.0kVDC
- High accuracy
- 40~200mV output test signal
- LED indication of loop current
- Selectable 3 second input damping
- Low cost
- Easy to install
- Compact DIN rail mount enclosure
- Available Standard or Special Calibration
- Reverse Polarity Protection
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LPI-B-X | Standard 0~20mV Input; Programmable Input Range Calibration | $377.00 | |||||||||
Other ranges available on request.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Intech is our own brand of products, for all aftersales and technically support please contact us.
