Home | Products | Level | Level Switches | Capacitance | JUMO ZELOS C01 LS

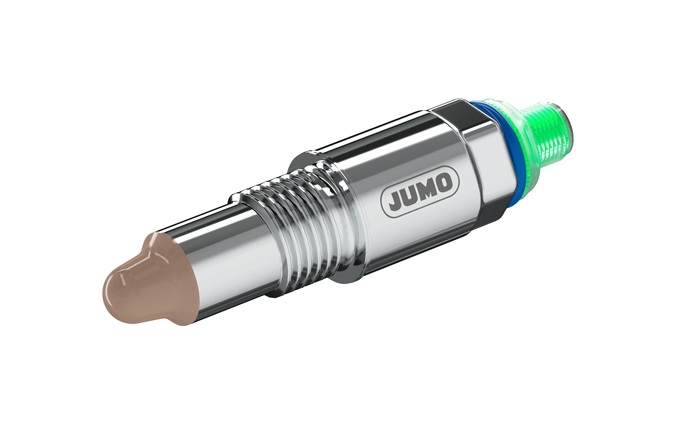

JUMO ZELOS C01 LS – Capacitive level switch

Capacitive level switch

JUMO ZELOZ CO1 LS - Capacitive Level Switch
JUMO ZELOS C01 LS- Capacitive Level Switches

JUMO ZELOS C01 LS Features

  • High Pressure Resistance
  • IO-Link options
  • IP67/IP69 Protection
  • Reliable, robust industry design
  • Proven, maintenance-free measuring principle
  • Suitable for CIP and SIP processes
Brand: JUMO
Available on Request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs

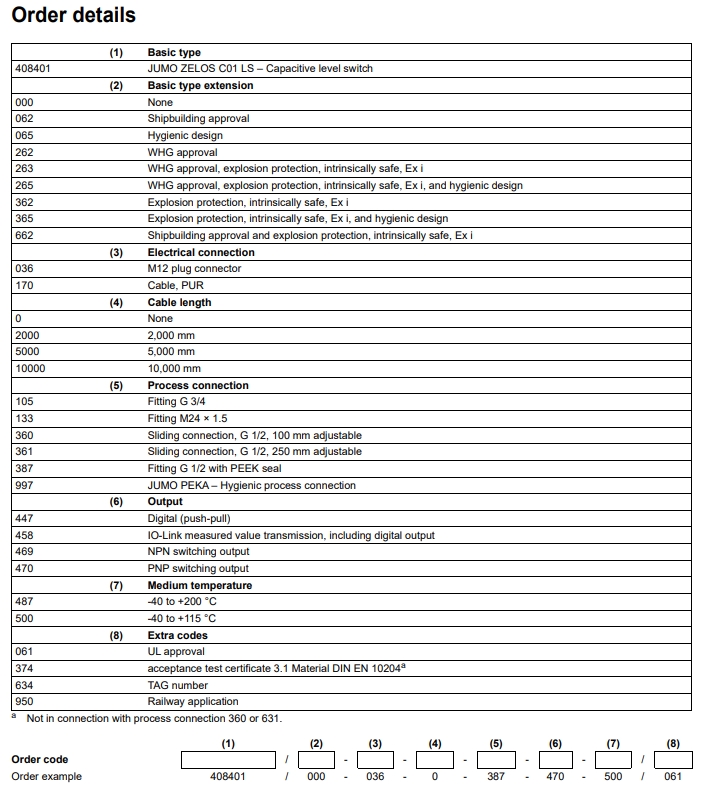

  • Ordering Information
  • Software
  • Documents

The capacitive level switch identifies the level of liquids and solids. It can also be used in pressurized tanks or pipes. Typically, the level switch is used in industrial environments for applications with requirements for overflow and dry-run protection or for media detection (such as sludge in separation processes).

JUMO ZELOS C01 LS can be used in liquids or bulk solids with temperatures between -40 and +200 °C. Thanks to the unique auto-calibration feature, point level measurement is detected reliably and with long-term stability. In addition, after configuration, the 2 switching outputs can automatically distinguish safely between measurement medium and cleaning media or foam.

Mounting is easily achieved with a standard torque wrench. Since the seal to the medium goes through the sensor tip, no separate seal is required, thereby eliminating the possibility of a mix-up.

JUMO ZELOS C01 LS Specifications
Medium Temperature -40 to +200 °C
Switching Capacity Up to DC 36 V and 200 mA
Repeatability and hysteresis +/- 1 mm in each case
Output Signal PNP, NPN, push-pull, IO-Link
Parts in contact with medium PEEK
Additional equipment unique auto-calibration function as standard, short-circuit and reverse polarity protection, 360° status display according to NE107, IO-Link or customer-specific
Protection type IP67/IP69
Electrical connection Cable PUR, M12 plug connector

Software Free versionIO-Link iconJumo Zelos C01 LS IO-Link IODD V1.1

Download here: JUMO-Zelos C01-20241213-IODD1.1

  • JUMO ZELOS C01 LS - Datasheet 691.61 KB
  • JUMO ZELOS C01 LS - Operating Manual 5.36 MB
  • JUMO ZELOS C01 LS - Brochure 3.31 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
408401-458

Jumo Zelos C01 LS, IO-Link Output, -40~115°C, 3/4
(408401-000-036-105-458-500-000)

$550.00
408401-470

Jumo Zelos C01 LS, PNP switching output, -40~115°C, 3/4
(408401-000-036-105-470-500-000)

$550.00

Available on Request

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
