Home | Products | Controllers & Displays | Displays & Indicators | Process Displays | IN-RTB

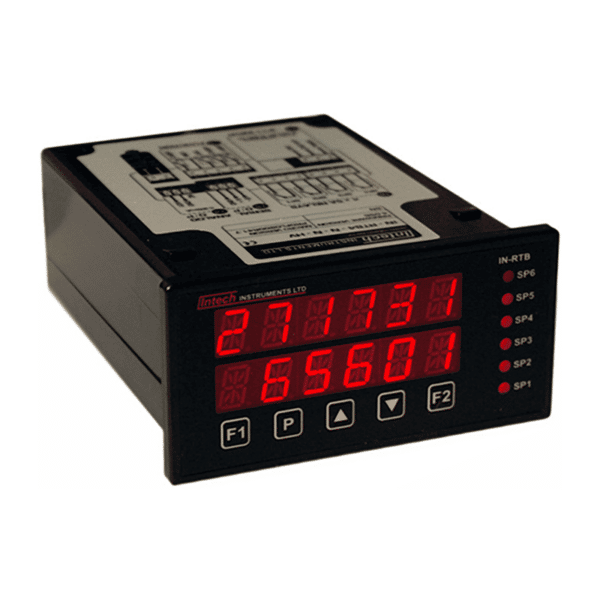

IN-RTB – Flow Rate and Batching Controller

Flow Rate and Batching Controller with relay output options

IN-RTB

IN-RTB Features

  • Dual 6 digit LED displays
  • View flow rate & total simultaneously
  • Inputs: 0~30V, magnetic pickup, NPN, PNP, TTL, Namur
  • 4 set points with delay
  • Analogue output retransmission option
  • Serial RS485/RS232 port option with Modbus RTU
  • Simple setup and calibration
  • On screen step by step instructions
  • 5 buttons for easy operator interface
  • Wide range of power supply options from 10V to 265V
Brand: INTECH
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

Description

The IN-RTB controller is the ideal solution for a variety of flow rate and batching applications. This controller, with four relay outputs, has been designed for ease of use, with intuitive, scrolling text prompts that guide you step-by-step through the setup process. The front panel includes two rows of 6-digits and five front-panel buttons, for simple operator interface. The dual display allows you to view total and flow rate simultaneously. Up to four relay outputs, an analogue output and/or an RS485/RS232 serial port can also be added.

TYPEIN-RTB
Input0~24Vdc, 0~30Vac
Sensor typesNPN, PNP, Mag (20mV to 30V), TTL, digital, closed contact or NAMUR
Sensor calibrationDirect K factor entry or pulses per unit of measurement
K factor ranges3 ranges for K factors, from 0.1 to 99.9999, 999.999 or 9999.99
Frequency2Hz to 10KHz
Power supplyHV: 85~265Vac / 95~370Vdc or LV: 15~48Vac / 10~72Vdc
Excitation24Vdc (50mA max)
Accuracy0.005%
Temp driftTypically 2ppm/°C
SecuritySetup is PIN code protected
Case48 x 96 x 119.5mm (H x W x D) 45.5 x 92.5mm panel cutout
Flow
Flow rateUnits/sec, units/min or units/hour
Rate multiplierx0.0001 to x1000
Totaliser
Resolutionx1, x103, x106
FeaturesLow flow cutoff and reset at power up
Features
ResetReset total and / or batch manually or via set-point logic
Volumetric pulseAdjustable pulse width from 0.1 to 10.0 seconds
BatchingBatching mode available, with in-flight correction
Optional
Relay outputs2 or 4 x 5A Form A relays (1 used for batch set-point)
Analogue outputIsolated 16-bit 4~20mA / 0~10V output (fully scalable). Window programmable over the full-scale range
Serial portIsolated RS485 / RS232. Modes: ASCII, Modbus RTU slave, Ranger A. Data rates: 300~38400 baud. Parity: Odd, even or none
Jumper Selectable Options
Input noise filter jumper20kHz, 2kHz, 200Hz, Filter OFF
Input signal jumperLogic (DC), Magnetic pickup (AC)
Load jumperSink/Source (digital transistor or switch interface), Namur (2-wire proximity detector), Tacho (AC magnetic pickup)
ITEMS   CODE  DESCRIPTION
SERIES IN-RTB- Flow Rate and Batching Controller
RELAY OUTPUTS N- None
R2- 2x 5A relay outputs
R4- 4x 5A relay outputs
ANALOGUE OUTPUT N- None
A- 1x 4~20mA / 0~10V analogue output
SERIAL PORT N- None
WS232 1 x Serial Port Isolated RS232 (RJ11 Terminal)
 WS485  1 x Serial Port Isolated RS485 (screw Terminal)
POWER SUPPLY  HV  85~265Vac / 95~370Vdc
LV  15~48Vac / 10~72Vdc
  • Intech IN-RTB Series Flow Rate Batch Controller - Brochure 580.01 KB
  • Intech IN-RTB Series Flow Rate Batch Controller - Installation Guide 2.34 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
IN-RTB--

Flow Rate and Batching Controller

$650.00
R2

2 x 5A Relay Outputs (Add)

$98.00
R4/

4 x 5A Relay Outputs (Add)

$130.00
A/

Analogue Output Retransmission: 4~20mA and 0~10V (Add)

$118.00
WS485

1 x Serial Port Isolated RS485 (screw Terminal) (Add)

$140.00
L.

Low voltage power supply: 15~48Vac / 10~72Vdc (Add)

$68.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
