Home | Products | Flow | Flow Meters | Insertion Paddle Flow Meters | IF500 / IF600

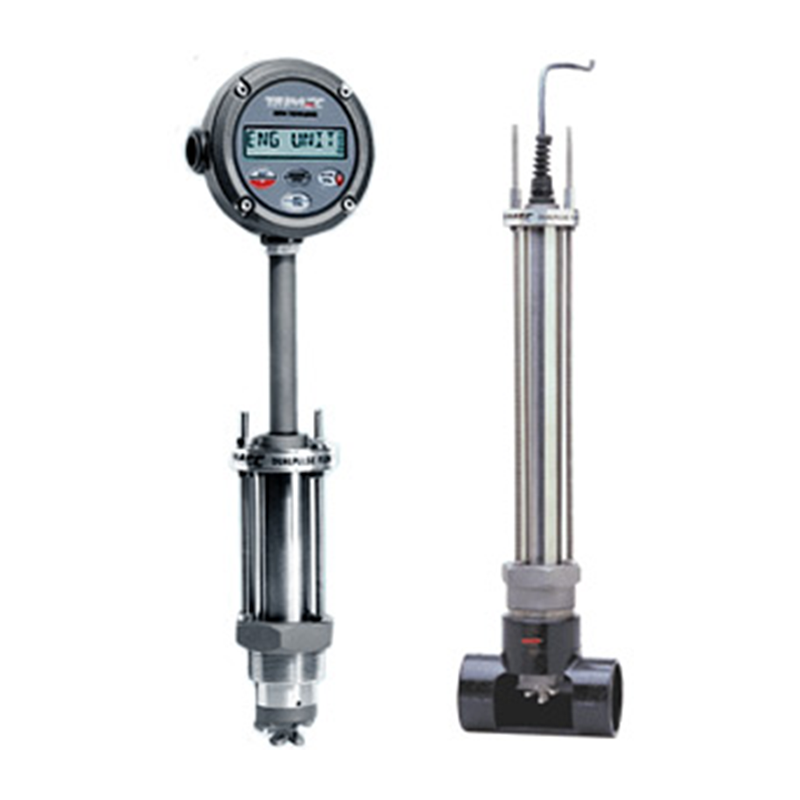

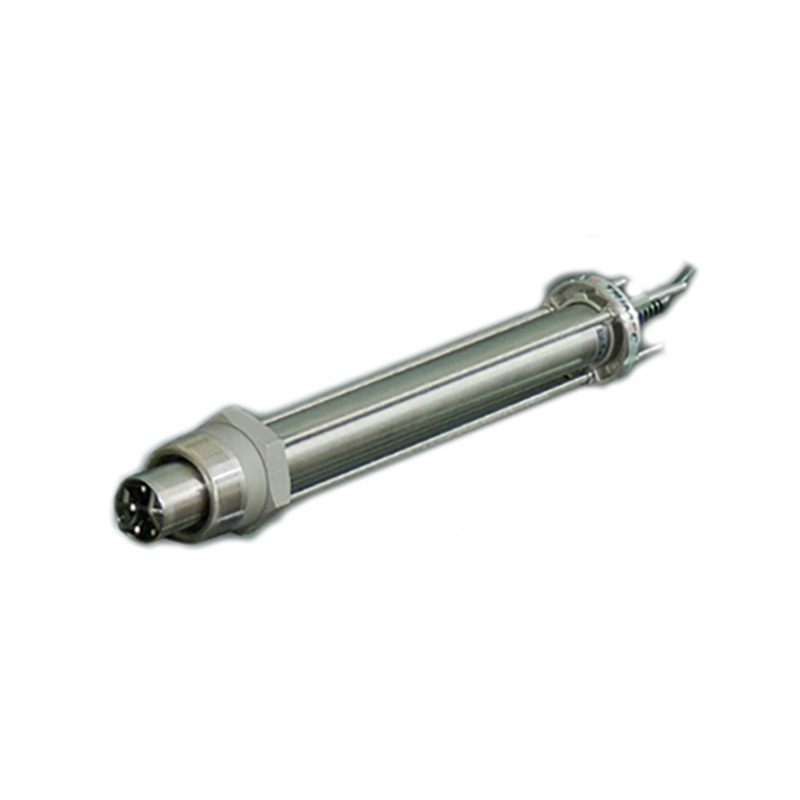

IF500 / IF600 – Insertion Paddle Wheel Flow Transducers

IF500 & IF600 are cost effective stainless steel flowmeters for measuring the flow of liquids in pipes sizes 1.5"~100" (40~2500mm)

Two Models

IF500 Size: 1.5″ to 36″ pipes (40mm~900mm)
Stainless steel insertion flow meter with two independent pulse outputs

IF600 Size: 2″ to 100″ pipes (50mm~2500mm)
Stainless steel insertion flow meter, suitable for hot tap installations

Features

  • All stainless steel construction
  • Suits pipes 40mm~2500mm (1.5″~100″)
  • Low installed cost
  • Simple to install
  • Unique head design to extend linear measuring range
  • Two independent pulse outputs with high noise immunity (CE compliant)
  • High pressure submersible design
  • Hot tap option
Brand: TRIMEC
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

The  Dualpulse insertion paddle wheel flow transducer is a cost effective means of accurately measuring the flow of water, water-like liquids or a wide variety of low viscosity liquids in completely full, large diameter pipes. The sensor is inserted into the process piping via a suitable fitting. Liquid flow through the pipe results in rotation of the affixed paddle wheel. The rotational speed of the paddle is proportional to the flow velocity, and therefore, proportional to the flowrate in the pipe.

Great benefit of the Insertion Meter:

The insertion type design provides a measuring technique that is much less expensive than full bore flowmeters, especially in larger pipe sizes. Insertion paddle wheel sensors are a robust measuring technology that boasts exceptional tolerance to dirt and solids.

Installation Notes

Insertion flowmeters are installed with the metering head 1/8th into the pipe resulting in very little pressure drop. They do not require external power when used with the Trimec rate totalisers however some options such as high temperature require external power.

Applications

  • HVAC
  • Hot & chilled water management
  • Fire systems
  • Water distribution (management & treatment)
  • Boiler feed water management
  • Hydrant flow testing
TYPEIF500IF600
Suit Pipe Sizes40-900mm (1.5″-36″) 50-2500mm (2″-100″)
Pipe Connection 1.5″BSP or NPT 2″BSP or NPT
Flow Range 0.25-6300 litres/sec
(4-99600 USGPM)
0.4-49000 litres/sec
(6-78000 USGPM)
Flow Velocity Range 0.3 – 10 metres/sec (1-33 feet/sec)
LinearityTypically +/- 1.5% with well established flow profile
Temperature Range -40°C ~100°C 200°C max
Maximum Pressure 80 bar
Materials316 St St body & rotor shaft, PVDF rotor

Pulse Outputs

Reed Switch*30Vdc x 200mA max. Nom. 0-80Hz
Hall Effect3 wire NPN, 5-24Vdc, 20mA max. Nom. 0-240Hz
Voltage PulseSelf Generated Voltage. Nom. 0-240Hz
Intrinsically Safe CoilSelf Powered, generates 15-300mV
High Temperature CoilSelf Powered, 200°C max
Non Magnetic Sensor3 wire NPN, 5-24Vdc, 20mA max. Nom. 0-240Hz
AnalogueLoop Powered 4 - 20mA

* Maximum thermal shock 10°C / min applies to the reed switch

  • Trimec IF500 /IF600 Series Insertion Flow Meter - Brochure 734.43 KB
  • Flow Meter Selection Guide 26.90 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
IF500S215-11C

Flow Meter40~900mm, PVDF Rotor, 100°C, 1.5″BSPT, NPN/voltage pulse with Flying cable (1.5m)

$1,400.00
IF500S215-13C

Flow Meter 40~900mm, PVDF Rotor, 100°C, 1.5″BSPT, Reed Switch only with Flying cable (1.5m)

$1,400.00
IF600S215-11C

Flow Meter 50~2500mm, PVDF Rotor, 100°C, 1.5″BSPT, NPN/voltage pulse with Flying cable (1.5m)

$1,600.00
IF600S215-13C

Flow Meter 50~2500mm, PVDF Rotor, 100°C, 1.5″BSPT, Reed Switch only with Flying cable (1.5m)

$1,600.00

Note: Peek rotor available for higher temperature and harsher liquids. Other options available on application.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Trimec Flow Products Ltd products. Please contact the Trimec Flow Products Ltd distributor in your country if you require sales or service support for Trimec Flow Products Ltd products.
