Home | Products | Automation | Timers | H5N-6DM

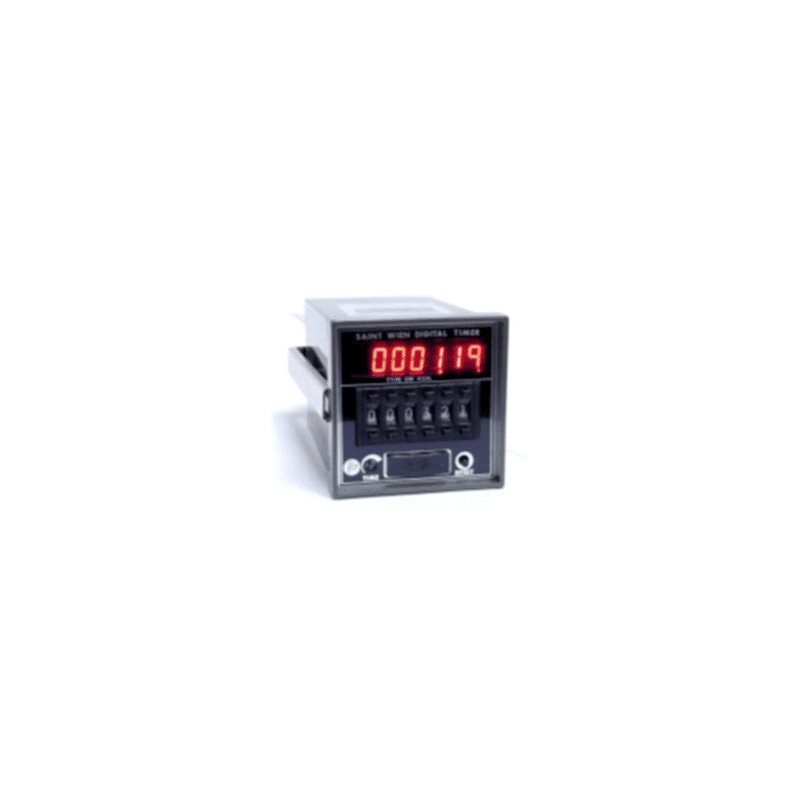

H5N-6DM – Programmable Digital Timer.

72 x 72mm, Programmable Digital Timer

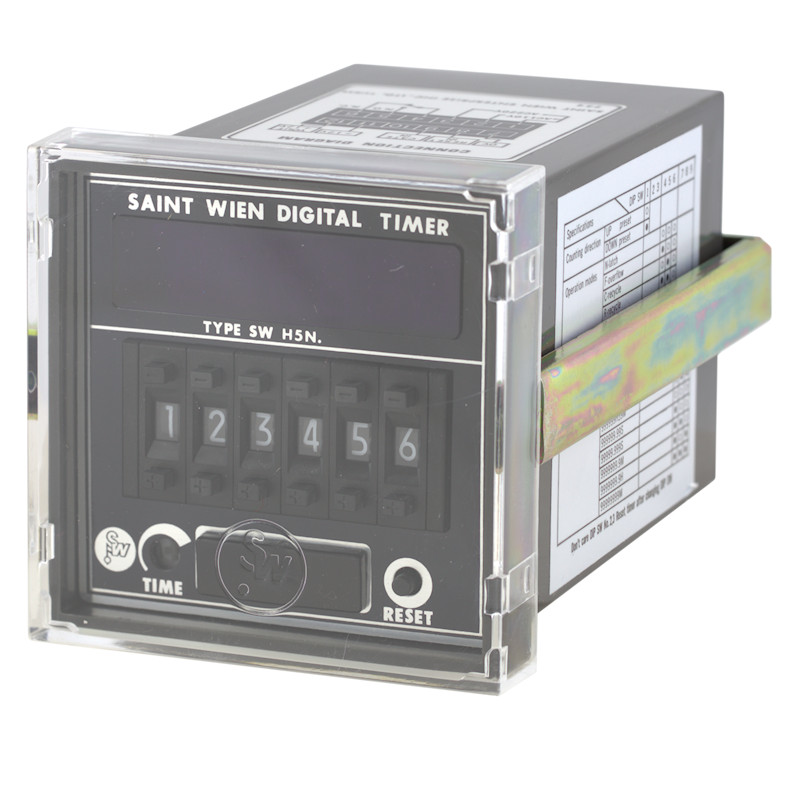

Programmable Digital Timer H5N-6DM

H5N-6DM Features:

  • 4~8d CPU based timer programmable.
  • 9 pin dip sw to configure up/down auto/man reset & 8 different timer range 00000.001s~999999.9h
  • 7 operation mode of auto reset 0.1~5s & manual reset.
  • Repetition=0.05s Setting=0% temperature=50ppm/oc
  • Sensor power: 12Vdc 60mA
  • Output: 1c or 1Ax2. Rating: 3A 250Vac 100k operations
  • Input: gate, reset in
  • EEPROM memory (or power off reset)
Brand: SAINT WIEN
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

H5N-6DM is a programable digital timer that comes with 8 different timer ranges and operation modes. DIN Mount for easy installation.

TYPEH5N-6DM
Digits:6 digit LED.                     1 preset.
Power supply:110/220Vac.
Timing:Up/down
Mode:8 operation modes.
Start/reset:Panel/remote. Auto/man.
Ranges: 8 selectable ranges, from 99H59M59S to 999.999S.
Input:External gate for timer hold.
Output:Relay SPDT. 3A, 250Vac.
  • Programmable Digital Timer H5N-6DM - Data Sheet 478.96 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
H5N-6DM

Up/down, 6 digit LED, 110/220Vac Programmable Digital Timer

$270.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Saint Wien Enterprise Inc., Ltd products. Please contact the Saint Wien Enterprise Inc., Ltd distributor in your country if you require sales or service support for Saint Wien Enterprise Inc., Ltd products.
