Home | Products | Automation | Timers | 7511

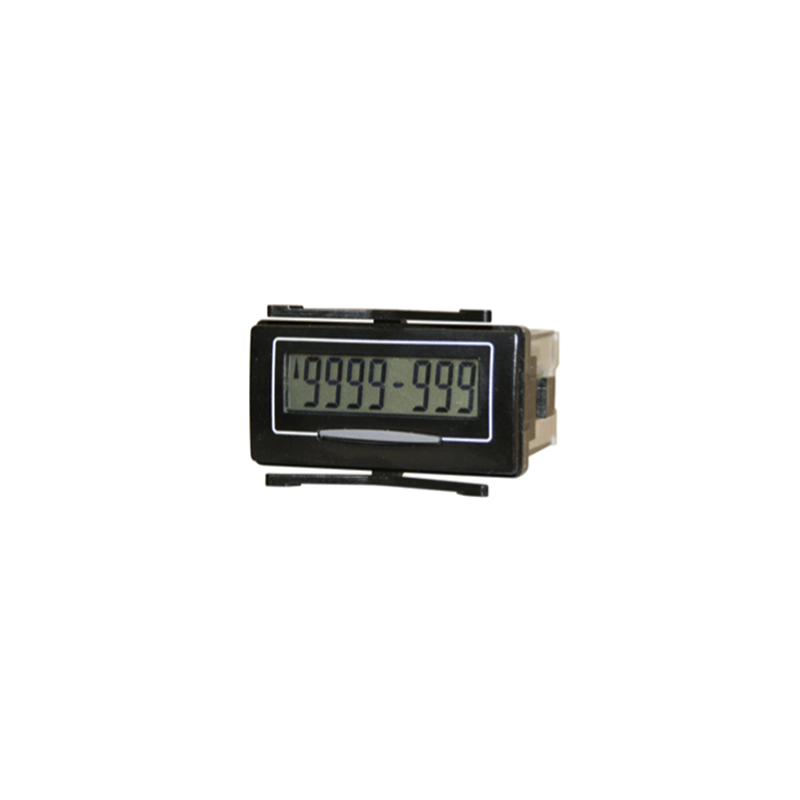

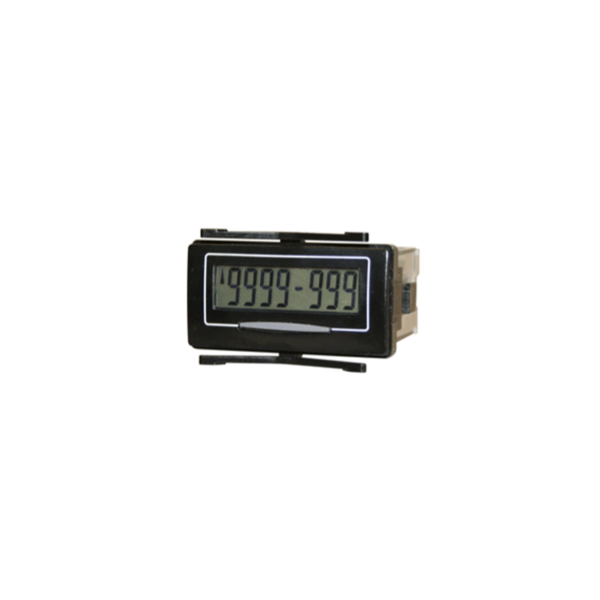

7511 – Self-powered Totalising Timers

8 digit Self Powered LCD Electronic Timer

Self-powered Totalising Timer 7511/7511HV
Self Powered Hours Run And Totalising Timers Trumeter 7511

7511 Features

  • 9mm high contrast LCD display
  • 10 year battery life
  • Minimum contact closure time 1 second
  • 4 timing modes
  • Times up or down
  • External reset input
  • CE,UL and cUL approved
Brand: TRUMETER
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Compact 8 digit LCD electronic timer

The 7511 8 digit liquid crystal display timer is self-powered by an internal battery with a 10-year life. It is an ideal electronic timer for panel mounting and its range of features make it an ideal totalising timer for a breadth of applications. Features include 4 timing modes, timing direction indication, LCD display with 9mm high digits and backlighting (external 5VDC supply required).

The 7511 timer is also available with a high voltage input – the 7511HV self-powered totalising timer with high voltage input.

TYPE7511
General Specifications
BatteryNon-replaceable Lithium battery,expected life10 years at 20°C
Display8 digit black LCD,9mm characters,leading zero blanking,backlight requires external 5VDC supply.Configurable decimal place upto 3 dec place (jumper link configured).
Timing Ranges:0-99999999 seconds

0-99999 mins-59 seconds

0-99999 hours-99/100th hour

0-99999 hours-59 mins
ConnectionsFinger-proof screw connections for cables up to 1.5mm2
Operating temperature-10°C to +60°C
Storage temperature-20°C to +60°C
AltitudeUp to 2000m
Relative Humidity80% max up to 31°C, decreasing to 50% max at 40°C
SealingIP65/NEMA4X
MountingEither with clip mount supplied or two front screws with bezel supplied.
Manual Reset EnableConfigured by jumper link
Packed Weight62 grammes
Box Dimensions56mm x 44mm x 62mm
Individual Product Specifications
External Reset (7511)Contact closure/open collector,negative edge triggered,0.7v threshold,15mS minimum closure time.
Direction Input (7511 | 7511HV)Connection or electronic input TTL/CMOS compatible.Add=no connection or >2.4v (logic 1); Subtract=connect to COMMON or <0.7v (logic 0).
Timing Input (7511)Contact closure/open collector with integral debounce circuitry.30Hz maximum,negative edge triggered,0.7v threshold,1 second minimum closure time.Max 18VDC.
External Reset (7511HV) 5-110VDC ±10%, 10-240VAC ±10%,50mS minimum length.
Timing Input (7511HV)5-110VDC ±10% ,10-240VAC ±10%,1 second minimum pulse width.
  • Self-powered Totalising Timer 7511 - Datasheet 539.54 KB
  • Self-Powered Totalising Timer 7511 - Instruction manual 392.46 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity

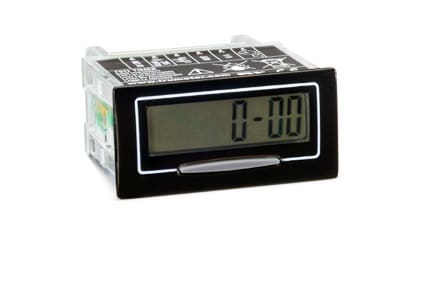

7511

8-digit Self-powered Totalising Timer.

$102.00
7511 HV

8-digit Self-powered Totalising Timer with High Voltage Input (10~240Vac / 5~110Vdc).

$136.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are distributors for Trumeter Products. Please contact the Trumeter distributor in your country if you require sales or service support for Trumeter Products.
