Home | Products | Level | Level Switches | Float Level Switches | FD Series

FD Series – Mini Float Level Switches

Stainless Steel Models

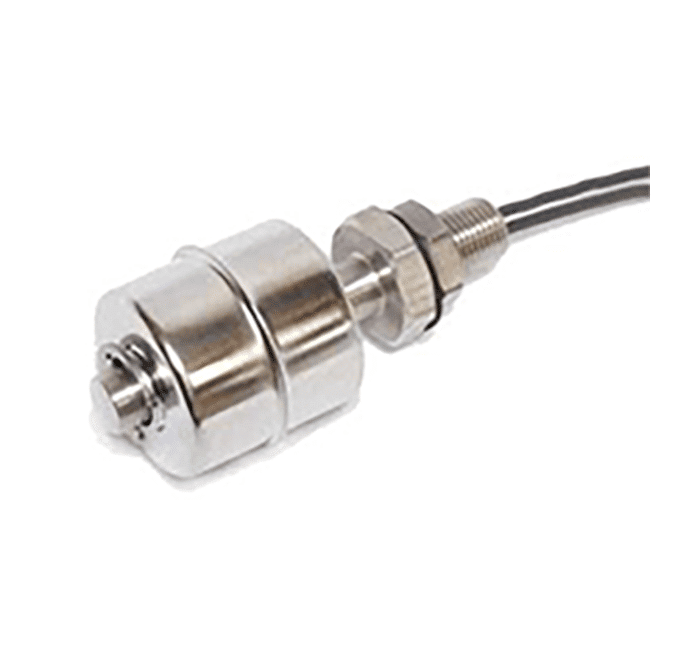

FD3061 Level Switches

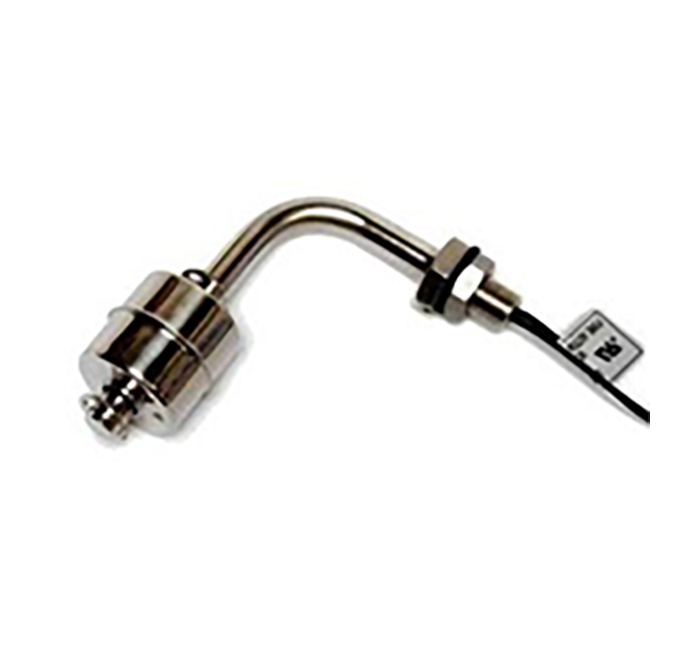

level-switch-finetek-fd3062

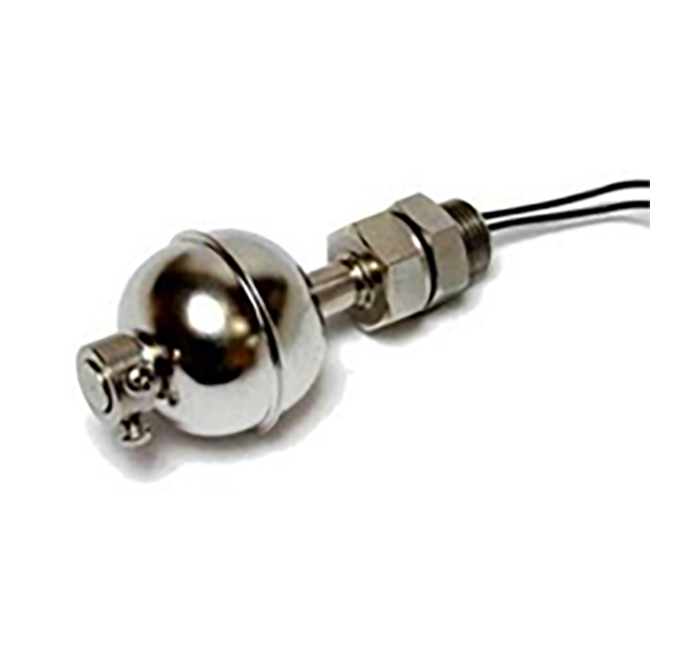

level-switch-finetek-fd4061

FD Series Features

  • Compact, affordable and simple magnetic float level switch design for liquid level detection
  • Wide range of installation options
  • Variety of available process connections
  • Stainless Steel
Brand: FINETEK
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The FD Series is a mini magnetic float level switch product line that is very cost-effective and compact.
As such these magnetic float level switch units are easily installed on small machinery and in areas where very little space is available inside/outside the vessel in which they are installed.  These mini magnetic float level switch devices operate based upon two scientific principles, buoyancy and magnetism. The float contains a magnet and the stationary stem incorporates a reed switch which opens or closes its electrical contact when the magnetic element in the float comes in contact with the stem. The reed switch reverses its contact state when the magnet in the float element moves away from the stem.

FD Series Level Switch Specifications
Model FD4061D FD3061D FD3062D
Mounting position Top Mounted Side Mounted
Temperature -10~120°C. -10~200°C. -10~120°C.
Pressure 35 bar. 10 bar
Switch 50W, 240Vac / 200Vdc.
SPST, N/O, reversible.
50W, 240Vac / 200Vdc.
FD3061DA05FH: Switch:
SPST, N/O only.
FD3061DB05FH: Switch:
SPST, N/C only.
50W, 240Vac / 200Vdc.
SPST, N/O, reversible.
Mount 3/8” BSP. 316 SS. 1/8” BSP. 316 SS
Float 316 SS, SG 0.7.
41mmØ spherical
316 SS, SG 0.7.
28mmØ cylindrical.
  • Mini Float Level Switches Finetek FC/FD Series - Brochure 2.49 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
FD3061DE

Mini Float Level Switch, Top Mount, 1/8″BSP, -10~120°C, Reversible, XLPE lead 0.3m

$104.00
FD3061DA05FH

Mini Float Level Switch, Top Mount, 1/8″BSP, -10~150°C, Reversible, Silicon lead 0.5m

$119.00
FD3062DE

Mini Float Level Switch, Side Mount, 1/8″BSP, -10~120°C, Reversible, XLPE lead 0.3m

$147.00
FD4061DE

Mini Float Level Switch, Top Mount, 3/8″BSP, -10~120°C, Reversible, XLPE lead 0.3m

$194.00
FD4061DA05TH

Mini Float Level Switch, Top Mount, 3/8″BSP, -10~200°C, Reversible, Teflon lead 0.5m

$218.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Finetek products. Please contact the Finetek distributor in your country if you require sales or service support for Finetek products.
