Home | Products | pH & Conductivity | Conductivity | Conductivity Transmitters | EcoTRANS Lf02

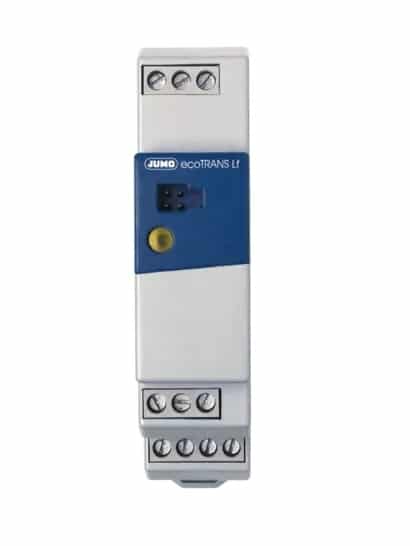

EcoTRANS Lf02 – Transmitter / Switching Device for Conductivity (202731)

Transmitter / Switching Device for Conductivity (202731)

ecoTRANS Lf02

EcoTRANS Lf02 Features

  •  3-way isolation (voltage supply is galvanically isolated from input and from output)
  • DIN rail mounting
  • 1 relay (Type JUMO ecoTRANS Lf 02)
  • Teach-in function (definition of switching point through the teach-in connector) on the JUMO ecoTRANS Lf 02.
  • 1 LED, two colors (red/green), for signaling operating states
  • Calibration timer
  • Customized characteristic for temperature probe can be implemented (e.g. NTC, PTC)
  • Reference temperature is settable
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

The JUMO ecoTRANS Lf 02 conductivity transmitter is used to measure the conductivity of liquids in conjunction with electrolytic conductivity sensors.
The instruments are designed for application in general water engineering.
The JUMO ecoTRANS Lf 02 is equipped with a changeover relay. And, using the teach-in connector, the JUMO ecoTRANS Lf 02 can also automatically define the switching point of the integrated relay.
Typical areas of application are freshwater monitoring and water treatment, reverse osmosis plant, ion exchanger plant, condensate monitoring, and cooling water checks.

The instrument is programmed via the setup connection (notebook/PC), using the setup program:

• calibration of the cell constant
• calibration of the temperature coefficient
• configuration of the parameters: range, reference temperature, cell constant, temperature, switching point, analog output, and others.

General characteristics

A/D converter
resolution 14 bit
Sampling time
500 msec = 2 measurements per second
Ambient temperature drift
≤ 0.5 % per 10 °C
Measuring circuit monitoring
input 1(conductivity): out-of-range
input 2 (temperature): out-of-range, probe short-circuit, probe break
In fault condition, the outputs adopt a defined (configurable) state.
Data backup
EEPROM
Supply
20 to 30 V DC, ripple < 5 %, power consumption ≤ 2 W, with reverse-polarity protection. For operation with SELV or PELV circuits.
Electrical connection
screw terminals up to 2.5 mm2
Permissible ambient temperature
-10 to +60 °C
Permissible storage temperature
-20 to +75 °C
Climatic conditions
rel. humidity ≤ 93 %, no condensation
Enclosure protection (to EN 60529)
IP20
Electrical safety
to EN 61010
clearance and creepage distances for
– overvoltage category II
– pollution degree 2
Electromagnetic compatibility
to EN 61326
interference immunity: to industrial requirements interference emission: Class B
Housing
housing for DIN rail mounting: PC (polycarbonate)
Mounting
on 35 mm × 7.5 mm DIN rail to EN 50022
Operating position
unrestricted
Weight
approx. 110 g

  • Jumo ecoTRANS Lf 02 Conductivity Transmitter - Data Sheet 225.12 KB
  • Jumo ecoTRANS Lf 02 Conductivity Transmitter - Operating Manual 707.39 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
202731

ecoTRANS Lf 02, Transmitter / Switching device for Conductivity, 1 Relay Output

$790.00
_00456352_

PC Interface with Converter USB/TTL

$475.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
