Description

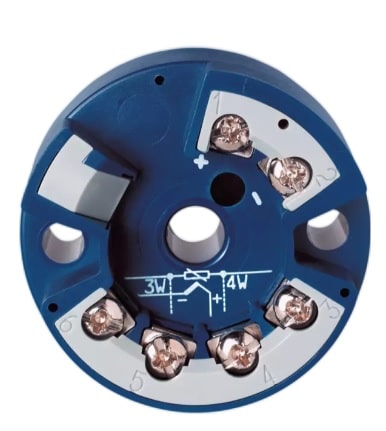

The two-wire transmitter detects the temperature by means of an RTD temperature probe or a thermocouple. For RTD temperature probes, the probe can be connected in a two-wire circuit, three-wire circuit, or four-wire circuit. The dTRANS T01 Ex is designed for installation in a potentially explosive area. The probe type, connection type, and measuring range can be configured with a setup program.
The output signal 4~20 mA or reversed 20~4 mA is available in a linearized way (temperature linear). The device is designed for industrial applications and complies with the respective European standards to guarantee electromagnetic compatibility (EMC). The dTRANS T01 Ex version complies with the directives concerning potentially explosive areas according to the conformity declaration.
