Communication Modules for RS485/RS422
Description

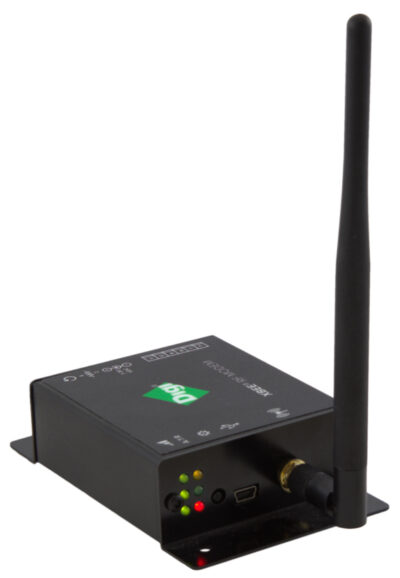

The Digi® Radio Modems are used for long-range, low speed wireless communications. Powered by DigiMesh® networking protocol, featuring dense network operation using mesh technology with frequency hopping spread spectrum capability. Operating in the 900MHz license-free ISM band (Industrial, Scientific and Medical bands), the Digi Radio Modems can wirelessly connect a variety of Intech RS485/422 devices across many applications including remote monitoring.
| TYPE | DIGI485 |
| Wireless Range* | Up to 300m indoor urban, up to 6.5Km ideal line of sight |
| Wireless Frequency | 915MHz~928MHz |
| Frequency Hopping | 8 hop sequences share 25 channels, 31 channels available |
| Wireless Power | Default 24 dBm, 250mW (can be factory set for less) |
| RF Data Rate | 200kbps |
| Communications | RS485 or RS422 (can be both if using a 2400-IS converter) |
| Interface Data Rate | 125~65,000bps |
| Network Topology | Transparent: Point to Point, Point to Multi-Point or Mesh |
| Power Supply | 7~30Vdc, plug pack included |
| Power Consumption | 140mA at 9Vdc |
| Antenna Connection | RP-SMA |
| Antenna Impedance | 50 ohms unbalanced |
| Operating Temperature | -40°~85°C |
| Case Size | H=114mm, W=70mm & D=29mm |
| Height with Antenna | 270mm |
| Weight | 150g |
| Compliances | RCM, FCC PART 15.247, ROHS |
| *Wireless Range: Ideal line of sight refers to conditions with no surrounding trees, buildings or RF interference, a completely unobstructed Fresnel Zone | |
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIGI485 | Digi Radio Modem for RS485/422 (Price for each) | $815.00 | |||||||||
