Home | Products | Pressure | Pressure Switches | DELOS SI

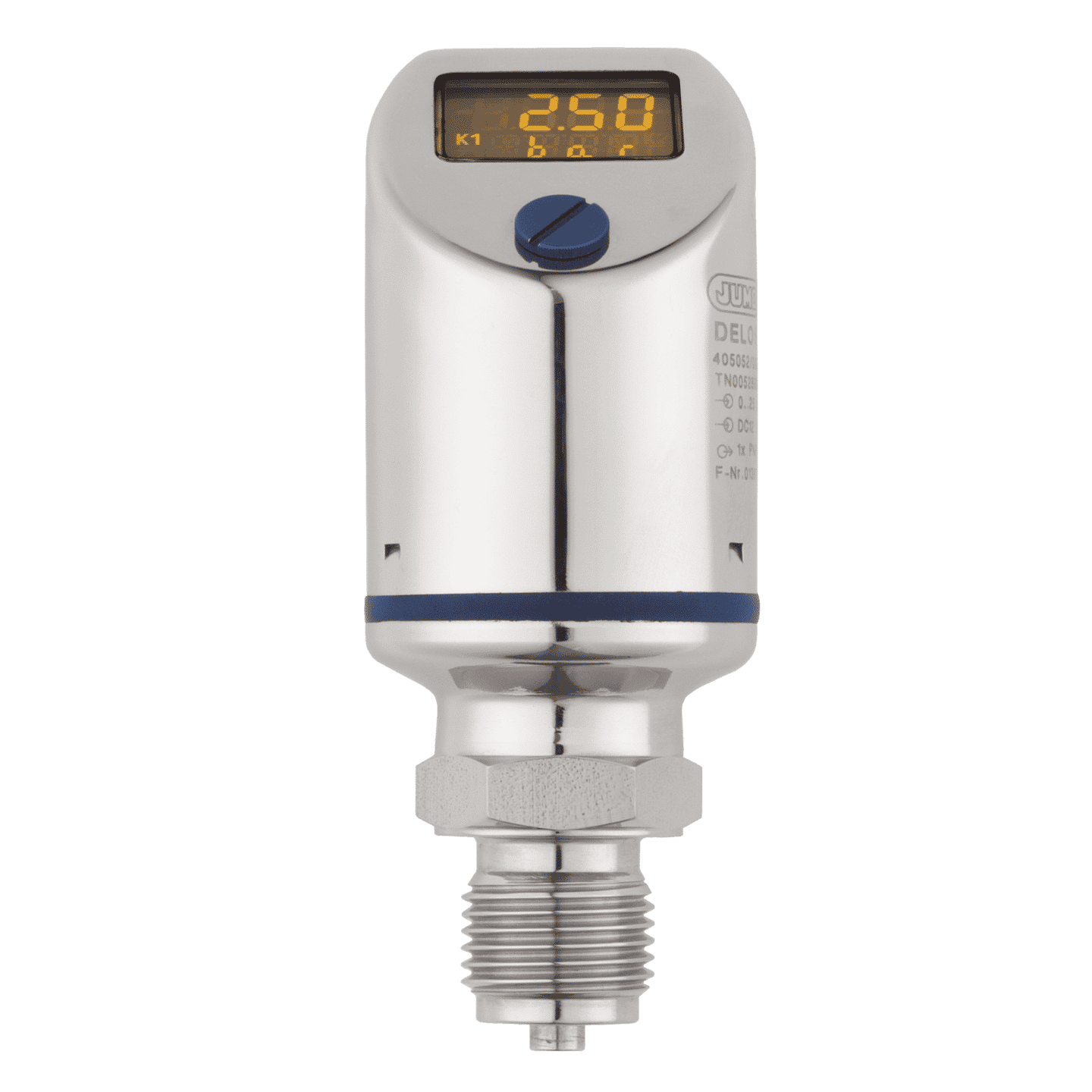

DELOS SI – LCD Pressure Switch

Precision Pressure Transmitter with Switching Contacts and Display (405052)

DELOS SI - Precision Pressure Switch
  • 0 to 400 mbar – 0 to 60 bar relative/absolute
  • Measuring range scaling 1:4
  • Linearity (limit point setting) ≤ 0.1 % MSP
  • Time-saving and simple configuration on the device or with easy-to-use setup program
  • Display (180°) and case (+/-160°) rotation for a flexible installation position and optimum readability
  • Optionally available for high medium temperatures up to 200 °C (SIP and CIP compatible)
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

The high-precision, electronic pressure switch JUMO DELOS SI provides flexible application due to its switching outputs, analogue output and an LC display to visualise the process pressure and switching contact statuses. Due to its stainless steel housing and the seal-less measuring system, it is also perfectly suitable for use in hygienically sensible areas.

A variant of this system in a high-temperature design resistant to temperatures of up to 200°C can be used especially for measuring tasks on hot media and lines. The configuration of the output signal and the measuring range can be customised.

TYPEDELOS SI
Linearity:0.1%
Measuring range scaling:1 : 4
Power supply:12~30Vdc.
Protection:IP67.
Output:1x PNP output.
1x 0(4)~20mA or 0~10Vdc selectable.
Two-colour display with alarm function
Analogue output can be freely configured
100°C medium temperature
25~100% of nominal range
Programming is either local or via set-up
  • DELOS SI - Precision Pressure Transmitter - Brochure 2.54 MB
  • DELOS SI - Precision Pressure Transmitter - Datasheet 273.53 KB
  • DELOS SI - Precision Pressure Transmitter - Operating Manual 613.70 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
581782

-1~9 bar, 1 x PNP switching output, 1/4″.
(405052/000-483-470-504-20-36-0)

$710.00
559797

-1~9 bar, 1 x PNP, 1 x 4~20mA output, 1/4″.
(405052-000-483-475-521-20-36/0)

$820.00
548702

0~25 bar, 1 x PNP, 1 x 4~20mA output, 1/4″.
(405052/000-461-475-521-20-36/0)

$820.00
528024

0~10 bar, 1 x PNP, 1 x 4~20mA output, 1/4″.
(405052/000-459-475-521-20-36-01/000)

$820.00
533294

0~1 bar, 1 x PNP, 1 x 4~20mA output, 1/4″.
(405052/000-454-475-521-20-36/0)

$820.00
43012616

0~4 bar, 1 x PNP, 1 x 4~20mA output, 1/4″.
(405052/000-457-475-521-20-36/0)

$820.00
522384

DELOS Setup software

$150.00
507861

Connecting Y cable for programming

$110.00
456352

PC Interface with Converter USB/TTL

$350.00
409334

M12x1 Plug 2m PVC Angled Cable – Unvented

$35.00

Other models available on request.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
