Home | Products | Temperature | Cable

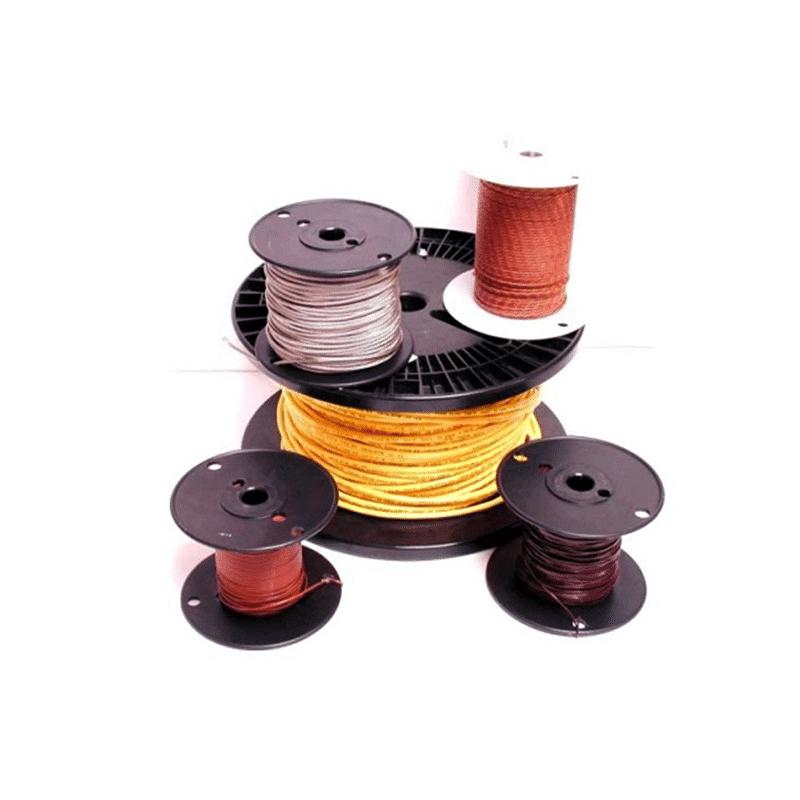

Cable – Temperature and Data Cable

RTD, Thermocouple and Data Cable.

thermocouple-rtd-data-cable
Brand: INTECH
Usually in stock

Check Cable Guide HERE.

Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Software

N/A

N/A

N/A

N/A

Product Range

Product Range:
CodeSpecificationsPriceQuantity
3C-PFA

RTD Cable, 3 core, PFA Teflon, Foil Screened, white, 0.22 CSA, 7/02, 24 AWG, -190~260°C.

$11.00
3C-PVC

RTD Cable, 3 core, PVC/PVC, black, 0.5 CSA, 16/02, 20 AWG, -5~105°C.

$5.00
3C-SIL

RTD Cable, 3 core, Silicone Rubber, grey, 0.25 CSA, 14/00.15, 23 AWG, -60~180°C.

$8.50
4C-PTFE

RTD Cable, 4 Core, PTFE Teflon, Foil Screened, White, 0.22 CSA, 7/02, 23 AWG, -180~260°C.

$18.00
4C-PVC-SCR

RTD Cable, 4 Core, PVC/PVC, Foil Screened, grey, 0.22 CSA, 7/02, 24 AWG, -5~80°C.

$4.50
G/G-24F-K

Thermocouple Cable, Type K, Fibreglass / fibreglass, 0.22 CSA, 7/02, 24 AWG, 400°C.

$8.20
G/GS-24F-K

Thermocouple Cable, Type K, Fibreglass / fibreglass, SS overbraid, 0.22 CSA, 7/02, 24 AWG, 400°C.

$10.40
G/G-24F-J

Thermocouple Cable, Type J, Fibreglass / fibreglass, 0.22 CSA, 7/02, 24 AWG, 400°C.

$9.50
G/GS-24F-J

Thermocouple Cable, Type J, Fibreglass / fibreglass, SS overbraid, 0.22 CSA, 7/02, 24 AWG, 400°C.

$10.20
G/G-30-KK

Thermocouple Cable, Type KK, FEP/FEP Teflon. High Accuracy, 0.05 CSA, 1/0.25, 30 AWG, 200°C.

$8.50
Tex/Tex-24F-KK

Thermocouple Cable, Type KK, Teflon, High Accuracy, 0.22 CSA, 7/0.2, 24 AWG, -190~260°C.

$15.00
Tex/Tex-24F-J

Thermocouple Cable, Type J, Teflon, 0.22 CSA, 7/0.2, 24 AWG, 260°C.

$10.00
Tex/Tex-30-TT

Thermocouple Cable, Type TT, FEP/FEP Teflon, High Accuracy, 0.05 CSA, 1/0.25, 30 AWG, 200°C.

$9.50
P/P-24F-KX

Thermocouple Extension Cable, Type K, PVC/PVC, 0.22 CSA, 7/02, 24 AWG, 105°C.

$6.10
UP/ALPTW-20-KX

Thermocouple Extension Cable, Type K, PVC/Mylar/PVC, Polyester Aluminium Tape Shield, 0.5 CSA, 1/0.8, 20 AWG, 105°C.

$11.50
P/P-24F-JX

Thermocouple Extension Cable, Type J, PVC/PVC, 0.22 CSA, 7/02, 24 AWG, 105°C.

$5.40
UP/ALPTW-20F-JX

Thermocouple Extension Cable, Type J, PVC/Mylar/PVC, Polyester Aluminium Tape Shield, 0.5 CSA, 1/0.8, 20 AWG, 105°C.

$7.00
DPF2702

Data Cable, PVC/PVC Screened, RS485 (Single Pair), 0.22, 7/02, 24 AWG, 75°C.

$2.80
DPF4702

Data Cable, PVC/PVC Screened, RS422 2 Pair, 0.22, 7/02, 24 AWG, 75°C.

$4.70
DPF6702

Data Cable, PVC/PVC Screened, 3 Pairs, 0.22, 7/02, 24 AWG, 75°C.

$5.80
ARM3.5-5MM

Armour Flex Cable, 3.5~5mm diameter, 304SS.

$24.00
ARM4-7MM

Armour Flex Cable, 4~7mm diameter, 304SS.

$16.00

Note: Other cable Types are available on request.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
