APM-VOLT – Volt Meter APM

The Trumeter APM is the most visible, easy to use, multi-format, programmable panel meter on the market

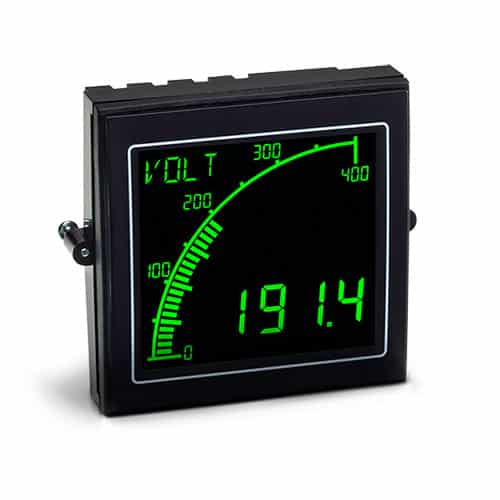

APM-VOLT – Volt Meter APM
APM Meter - Left side
APM Meter - Right Side

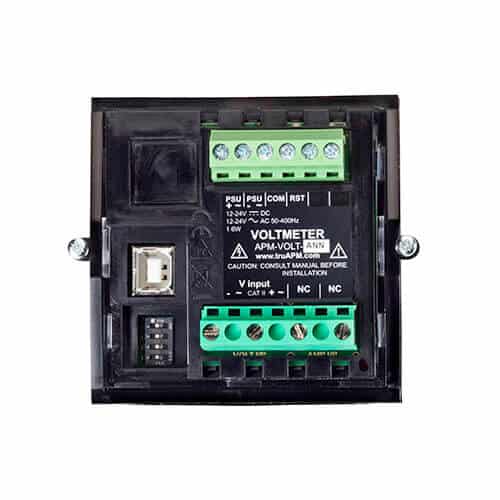

APM-VOLT – Back

A digital volt meter for measuring mains voltage

The APM Volt Meter is a general purpose digital volt meter for measuring mains voltage for applications including control panels and power supplies.

Benefits include:

  • Auto-detects AC or DC input
  • Measures up to 600V DC/AC
  • 1% accuracy
  • 20 point non-linearization scaling (for non-linear sensors)
  • 10 alarm setpoints & configurable digital output delay
  • Two Outputs: 1 digital (open collector) or 1 analogue (4-20mA) to communicate with other systems
Brand: TRUMETER
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

Why Choose the APM Volt Meter?

The APM Volt Meter is designed for engineers, panel builders, and designers seeking the most effective and efficient solution for voltage display and monitoring. A single meter that can be used in a range of applications, it auto-detects AC or DC inputs and measures up to 600V with 1% accuracy.

The unique display combines the instant readability of an analogue meter with the precision and functionality of a digital meter. Get quick recognition and precise functionality for the easiest to use and easiest to read panel meter available.

Unique, Easy-to-Read Display

The APM Volt Meter’s unique display gives you the best of both digital and analogue volt meters. It’s easy for operators to see readings even in the most challenging of conditions.

  • Two Contrast Options: The APM Volt meter is available with a positive display for bright sunlight or a high-contrast negative display for indoors.
  • Wide Viewing Angle: The APM Volt Meter has a wide viewing angle to ensure readability from a range of positions.
  • Large Readout: With four 12mm [0.47″] digits, you won’t sacrifice readability or accuracy.
  • Adjustable Brightness: Operators can adjust the backlight brightness and colour to adapt to changing conditions.
  • Curved Bar Graph Display: The 40 segment curved bar graph display provides an immediate visual indication of parameters for operators.

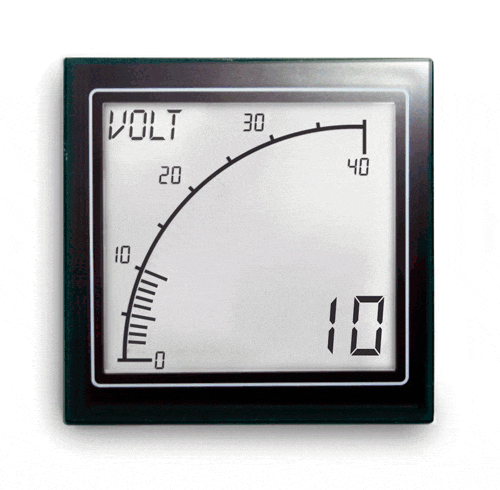

APM Colours of screen

User Configurable Volt Meter

The APM Volt Meter is easy to program using the APM configuration software, and offers endless customization options so you can tailor the meter to your exact requirements.

  • 10 Independent Alarms: Configure conditions and actions to suit your specific requirements.
  • Colour Changing Backlight: Change colour and intensity, including flashing or static alerts for specific conditions.
  • Messaging Area: Display custom messages and annunciators.
  • Customizable Scale & Range: Adjust offset, gain, linear scale, and min/max range with 20-point non-linear scaling.
  • Digital Output Delays: Set delays from 0.5 to 120 seconds.
  • 16 Pre-set Configurations: Use position switches to select standard configurations without needing a software connection.
Specifications
APM Input0 – 600V DC/AC (+/-)
PSU12 – 24V AC/DC
OutputsOutput 1: Digital (open collector) or Analog (4-20mA),
Output 2: Digital (open collector) or Analog (4-20mA)
CommunicationModbus RTU Optional
Dimensions72mm x 72mm x 53mm
Screen Size57mm x 53mm
Accuracy1.0%
CertificationsCE, cUL, IP65, NEMA Type 4 & 12 (UL50), ROHS, UL

APM Software Download

Download the software to configure your APM using the button below. This software works for all models included in the APM range.

APM configuration Download

Contact us if you have any questions about the software configuration.

  • Trumeter APM Volt Meter APM-VOLT - Application Note Load Bank 335.25 KB
  • Trumeter APM Volt Meter APM-VOLT - Application Voltage Measuring 593.12 KB
  • Trumeter APM Volt Meter APM-VOLT - Datasheet 651.29 KB
  • Trumeter APM Volt Meter APM-VOLT - Quickstart 421.50 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
APM-VOLT-APO

APM Voltmeter, Positive LCD with Outputs

$255.00
APM-VOLT-ANO

APM Voltmeter, Negative LCD with Outputs

$236.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are distributors for Trumeter Products. Please contact the Trumeter distributor in your country if you require sales or service support for Trumeter Products.
