Home | Products | Controllers & Displays | Displays & Indicators | Process Displays | APM-PROC

APM-PROC – Process Meter APM

Programmable digital process panel meter for flow, pressure & speed sensors

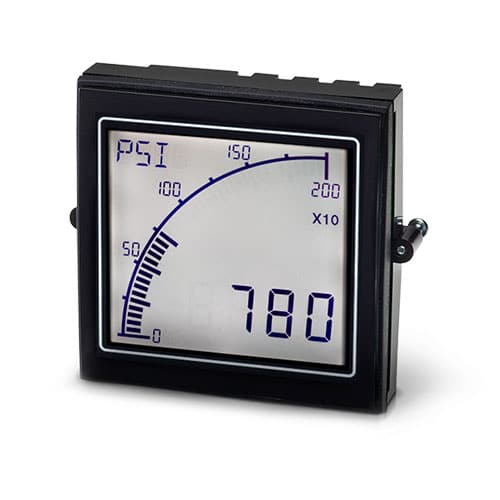

APM-PROC Process Meter

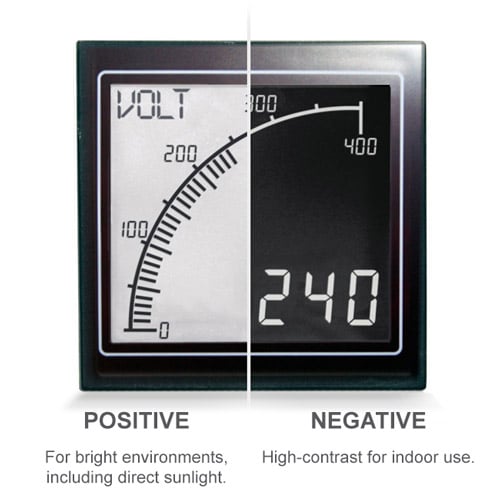

APM Meter - Positive and Negative screens

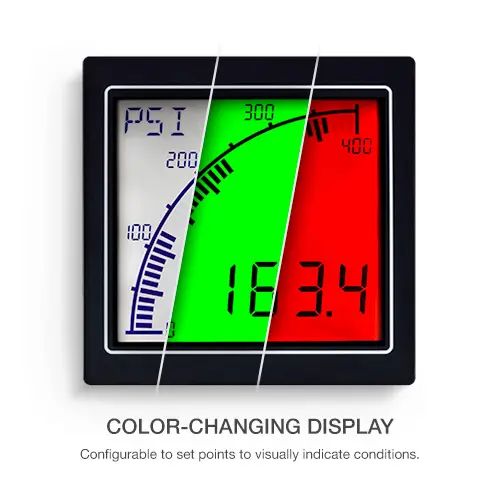

APM-PROC – Process Meter - Colour changing display
APM Meter - Left side

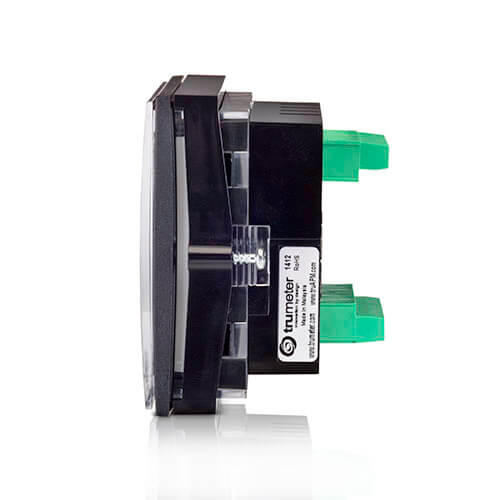

APM Meter - Right Side

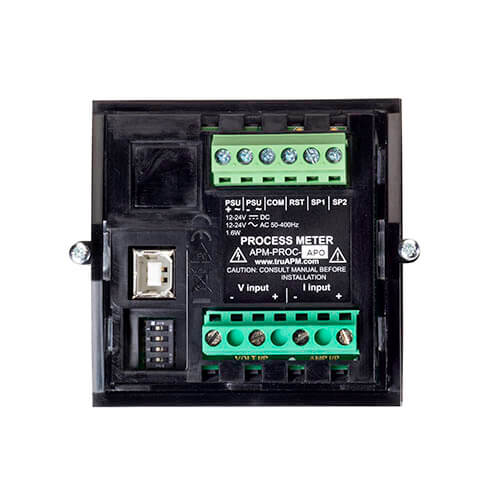

APM-PROC-APO_back

The APM Process Meter is a specialized digital meter for process control applications including variable speed drives, flow and pressure transducers and linear and non-linear sensors.

Benefits include:

  • 20 point non-linear conversion
  • Can measure 0-10V DC or 0-50mA
  • Micro Meter version available for low amperage measurements up to 200uA DC
  • 0.1% accuracy across the input range
  • Two Outputs: Use as either digital (open collector) or analogue (4-20mA) outputs for integration with other systems and equipment.
Brand: TRUMETER
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

Why Choose the APM Process Meter

The APM Process Meter excels in the measurement, monitoring, and display of industrial processes with user-selectable voltage (0 to +/- 10V) and current (4-20mA / 10-50mA) input modes. Trumeter’s innovative technology ensures superior accuracy with up to 20 point configurable linearization, allowing use with non-linear sensors like thermocouples and pressure transducers. The input signal optimization technology achieves 0.1% accuracy or better, providing precise measurement, display, and control.

The APM Process Meter’s unique, user-configurable display combines the readability of an analogue meter with the precision of a digital volt meter, making it the ultimate panel meter for industrial applications.

Two Outputs: Use as either digital (open collector) or analogue (4-20mA) outputs for integration with other systems and equipment.

Easy-to-Read Display

The APM Process Meter’s unique display combines the best of both digital and analogue meters, making it easy to read even in challenging conditions.

  • Two Contrast Options: Choose between a positive display for bright sunlight or a high-contrast negative display for indoors.
  • 40-Segment Curved Bar Graph: Provide operators with an immediate visual indication of parameters.
  • Large Readout: Optimize readability and accuracy with four 12mm [0.47″] digits.
  • Adjustable Brightness: Operators can adjust the backlight brightness and colour to suit different environments.
  • Wide Viewing Angle: Ensure readability from various positions.

User Configurable Process Meter

The APM Process Meter is highly customizable using the APM configuration software. The easy-to-use, free software allows you to tailor the meter to your specific needs.

  • Linear and Non-Linear Scaling: Choose linear scaling or use the 20-point non-linear scaling table to match your application.
  • Customizable Scale & Range: Adjust offset, gain and min/max range.
  • 10 Independent Alarms: Set conditions and actions to meet your requirements.
  • Digital Output Delays: Set delays from 0.5 to 120 seconds to ensure accuracy.
  • Colour Changing Backlight: Customize colour and intensity, with flashing or static alerts.
  • Messaging Area: Display custom messages and annunciators.
  • 16 Pre-set Configurations: Use position switches on the back of the meter to select pre-set standard configurations without software.

Specifications
APM Input0 – 10V DC, 0 – 50mA
PSU12 – 24V AC/DC
CommunicationModbus RTU Optional
OutputsOutput 1: Digital (open collector) or Analog (4-20mA), Output 2: Digital (open collector) or Analog (4-20mA)
Dimensions72mm x 72mm x 53mm
Screen Size57mm x 53mm
Accuracy0.01%
CertificationsCE, cUL, IP65, NEMA Type 4 & 12 (UL50), ROHS, UL

APM Software Download

Download the software to configure your APM using the button below. This software works for all models included in the APM range.

APM configuration Download

Contact us if you have any questions about the software configuration.

  • Trumeter APM Process Meter APM-PROC Process Displays - Datasheet 998.05 KB
  • Trumeter APM Process Meter APM-PROC Process Displays - Quickstart 387.18 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
APM-PROC-APO

APM Process Meter, Positive LCD with Outputs

$297.00
APM-PROC-ANO

APM Process Meter, Negative LCD with Outputs

$275.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are distributors for Trumeter Products. Please contact the Trumeter distributor in your country if you require sales or service support for Trumeter Products.
