Home | Products | Controllers & Displays | Displays & Indicators | Process Displays | APM-FREQ

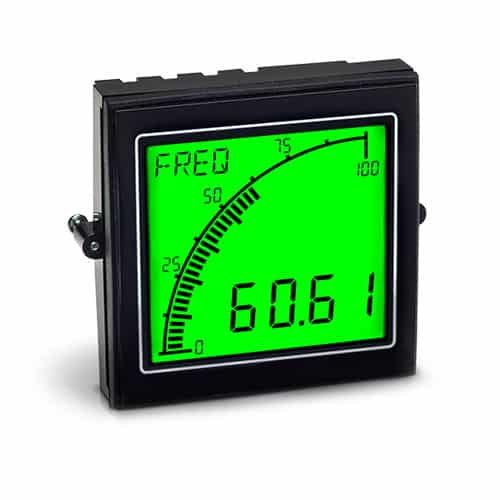

APM-FREQ – Frequency Meter APM

Programmable digital panel meter for measuring AC and DC frequency.

APM-FREQ – Frequency Meter APM
APM Meter - Left side
APM Meter - Right Side

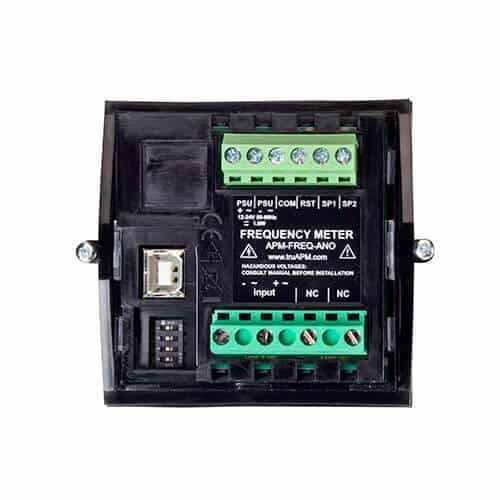

APM-FREQ Back

The Trumeter APM Frequency Meter is a programmable digital frequency meter for effective monitoring, measuring and displaying of AC or DC Frequency.

Benefits include:

  • Accurately measures DC pulses from a sensor
  • Supports a wide range of inputs between 2-400Hz
  • 0.5% accuracy at 25C
  • 20 point non-linearization scaling (for non-linear sensors)
  • 10 alarm setpoints & configurable digital output delay
Brand: TRUMETER
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Software
  • Documents

Digital Frequency Meter

The APM Frequency Meter has an input range of 2-400Hz and an accuracy of 0.5%. It is the only digital frequency meter that features dynamic backlight that can be tailored to alert the user whenever a critical parameter is out of set range. The display can be set to flash and/or change colour (or intensity) between red, green and white.

APM Colours of screen

This provides an immediate visual indication of critical parameters and clear accurate readings, improving performance monitoring as well as safety.

Programmable Frequency Meter

The APM is a programmable frequency meter that is easily customized to your requirements via the configuration software. Alternatively you can use one of the 15 pre-loaded configurations. The 40-segment bar graph can be programmed to the scale you require, while the positive and negative and centre zero scales can also be configured. It can also be configured to accurately measure DC pulses.

The APM’s unique LCD display incorporates the instant recognition of traditional analogue frequency meters with the precision and accuracy of digital panel meters, making it the ideal meter for a range of frequency measuring applications including:

  • AC mains applications
  • Generators and power performance monitoring
  • Industrial applications
  • Process monitoring
  • Aviation industry applications

APM Frequency Meter Options

The Frequency Meter is available with analogue and digital outputs so the panel meter can interface with other systems, including generators, beacons, sounders, or other indicators, for even clearer notification of frequency, and with either a positive or negative LCD.

APM Software Download

Download the software to configure your APM using the button below. This software works for all models included in the APM range.

APM configuration Download



Contact us if you have any questions about the software configuration.

  • Trumeter APM Frequency Meter APM-FREQ - Application Note Frequency 467.97 KB
  • Trumeter APM Frequency Meter APM-FREQ - Application Note Speed Measurement 438.19 KB
  • Trumeter APM Frequency Meter APM-FREQ - Datasheet 651.29 KB
  • Trumeter APM Frequency Meter APM-FREQ - Quickstart 421.50 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
APM-FREQ-APO

APM Frequency Meter, Positive LCD with Outputs

$255.00
APM-FREQ-ANO

APM Frequency Meter, Negative LCD with Outputs

$236.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are distributors for Trumeter Products. Please contact the Trumeter distributor in your country if you require sales or service support for Trumeter Products.
