202922 Series – Conductivity Sensors
$0.00 Excl. GST
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Product Details
202922 Series Features
- Compact style for universal application
- Manufactured from physiologically safe materials
- Robust design
- Minimum investment costs
- Can be used for various applications
Typical Applications
- Drinking and surface water monitoring
- Ion exchangers and reverse osmosis plant
- Construction of air conditioning and cooling systems
- Horticultural technology
- Sea water and fresh water aquaculture
- Mildly contaminated industrial rinse and process water
- High-purity water monitoring
- And many more

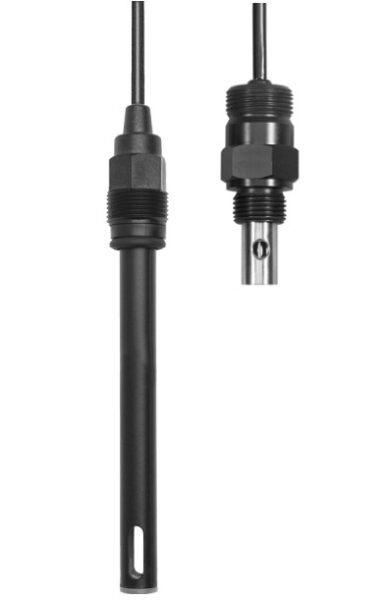

JUMO BlackLine CR-GT
with the cell constants K = 1.0
The GT version features special graphite as the electrode material. The graphite has been especially treated to achieve – in conjunction with suitable evaluation devices – measuring ranges up to 100 mS/cm and above.
The temperature probe can optionally be integrated. The conductivity sensor with 120 mm fitting length and a shaft diameter of 12 mm can be used in combination with standard pH or redox electrodes in suitable built-in fittings. The sensor is also ideally suited for linking with handheld or laboratory measuring equipment. When used as an online sensor, suitable flow-through fittings must be employed (see JUMO data sheets 202810, 202820, 202822).
JUMO BlackLine CR-EC
with the cell constants K = 0.01, K = 0.1 and K = 1.0
The principal features of the EC version are its very compact construction and the Pt100 that is integrated as standard. With a fitting length of just 40 mm (or 63 mm), the sensors can also be screwed into pipelines with a small nominal diameter. To this end, the conductivity sensors either have a G 1/2A or 1/2″-14 thread.
The version with K = 1.0 achieves a measuring range of 0.1 to about 5000 μS/cm (5mS/cm).
Titanium pins function as the measuring electrodes for this probe. The version with K=0.1 has been implemented as a coaxial cell and can be used to about 1000 μS/cm. Sensors with K = 0.01 cover ranges from 0.05 to 20 μS/cm. They are therefore extremely suitable for pure and high purity water applications. The electrode material for these sensors is stainless steel 1.4571.
Technical Specs
| JUMO BlackLine CR-GT |
|
|---|---|
| Cell constant* | K=1.0 |
| Typical measuring range^ | 0.1 to approx. 10 mS/cm |
| (with the appropriate evaluation equipment: up to 100 mS/cm) | |
| Temperature compensation | none/Pt100/Pt1000 |
| Process connection | Pg13.5 screw-in thread |
| Electrode material | special graphite |
| Body material | PPE, PS |
| Operating temperature | -5°C~80°C |
| Maximum pressure | 6 bar (at 25 °C) |
| Electrical connection | attached cable (free cable ends) or M12 connector |
* Depending on the production conditions, the cell constant can deviate by ±10 % from the nominal value. This deviation can be compensated
at the transmitter.
^ The measuring ranges also depend on the transmitter used. When used for wider ranges than the “typical” ones, measurement errors may be
caused by polarization.
| JUMO BlackLine CR-EC | |||
|---|---|---|---|
| Cell constant* | K = 0.01 | K = 0.1 | K = 1.0 |
| Typical measuring range^ | 0.05 to approx. 20 µS/cm | 0.1 to approx. 1000 µS/cm | 0.1 to approx. 5000 µS/cm |
| Temperature compensation | Pt100 | Pt100 | Pt100 |
| Process connection | G 1/2A or | G 1/2A or | G 1/2A or |
| 1/2″-14 NPT screw-in thread | 1/2″-14 NPT screw-in thread | 1/2″-14 NPT screw-in thread | |
| Electrode material | stainless steel 1.4571 | stainless steel 1.4571 | titanium |
| Body material | PEI | PEI | PEI |
| Operating temperature | -5°C~90 °C | -5°C~90 °C | -5°C~90 °C |
| Maximum pressure | 6 bar (at 25 °C) | 6 bar (at 25 °C) | 6 bar (at 25 °C) |
| Electrical connection | attached cable (free cable ends) | attached cable (free cable ends) | attached cable (free cable ends) |
| or M12 connector | or M12 connector | or M12 connector | |
* Depending on the production conditions, the cell constant can deviate by ±10 % from the nominal value. This deviation can be compensated
at the transmitter.
^ The measuring ranges also depend on the transmitter used. When used for wider ranges than the “typical” ones, measurement errors may be
caused by polarization
