Home | Products | Data Acquisition | Telemetry / Wireless Connections | Wireless Analogue Bridge Transmitters | Z-2400-A2 Series

Z-2400-A2 Series – Wireless Data Links using ZigBee® for Analogue and Digital Interface

The Z-2400-A2 series of units support the communication of analogue and digital signals via a wireless link.

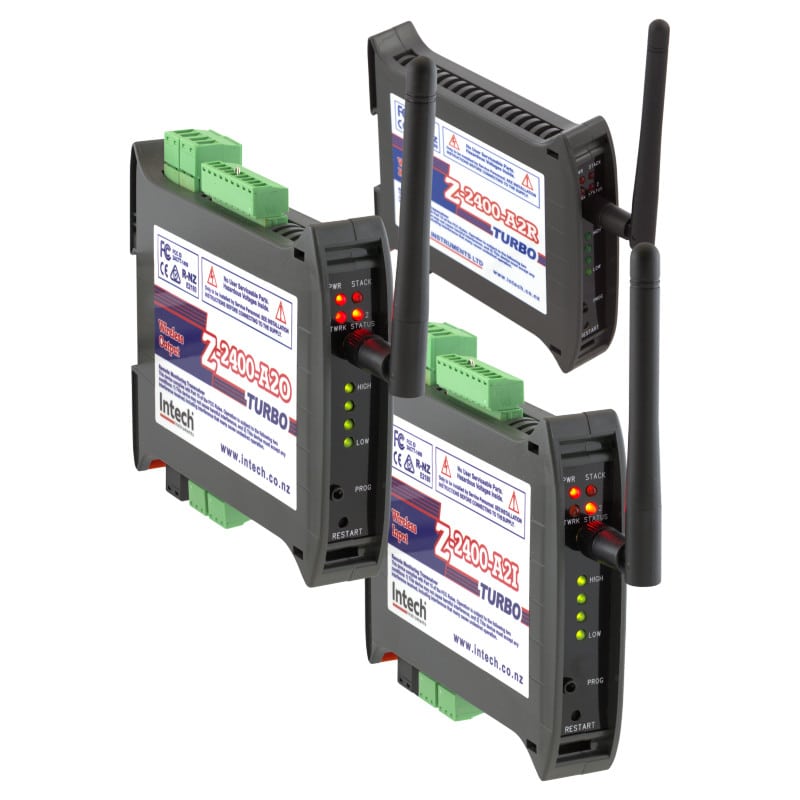

Intech Z-2400-A2 Wireless Series

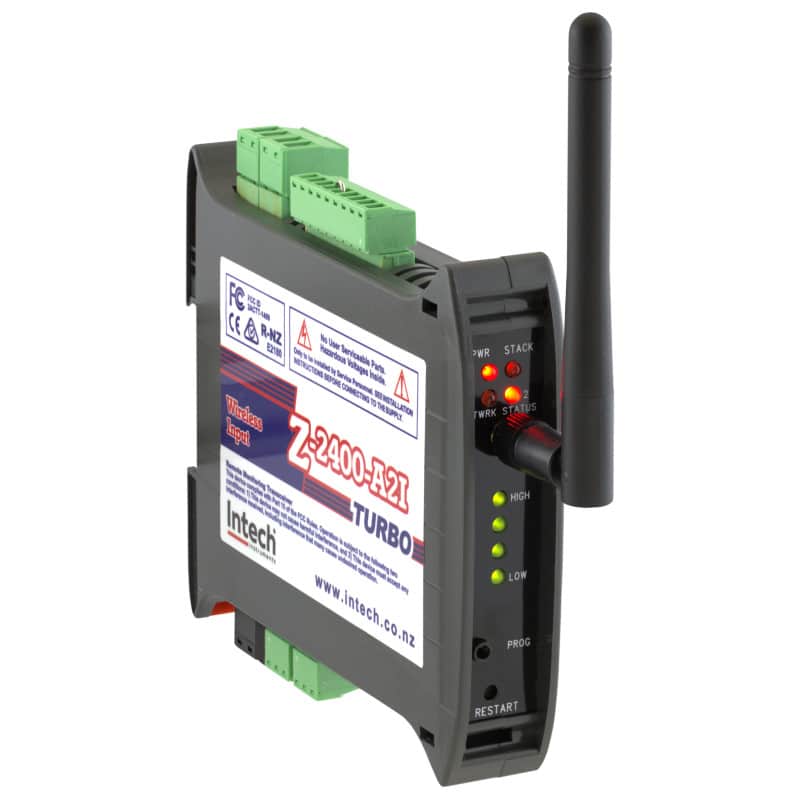

Intech Z-2400-A2I Wireless Remote Input Module

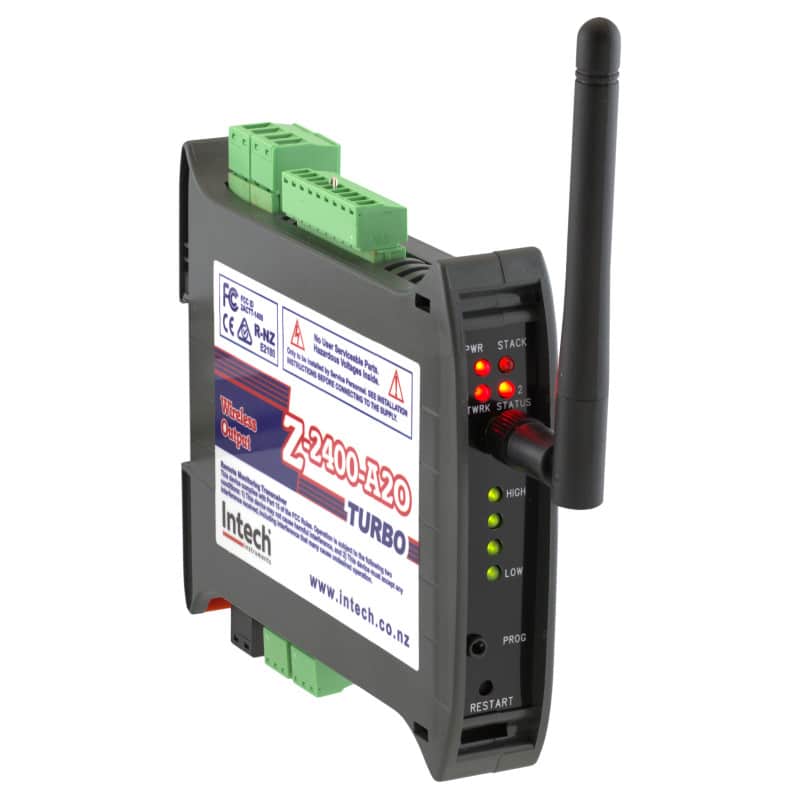

Intech Z-2400-A2O Wireless Output Module

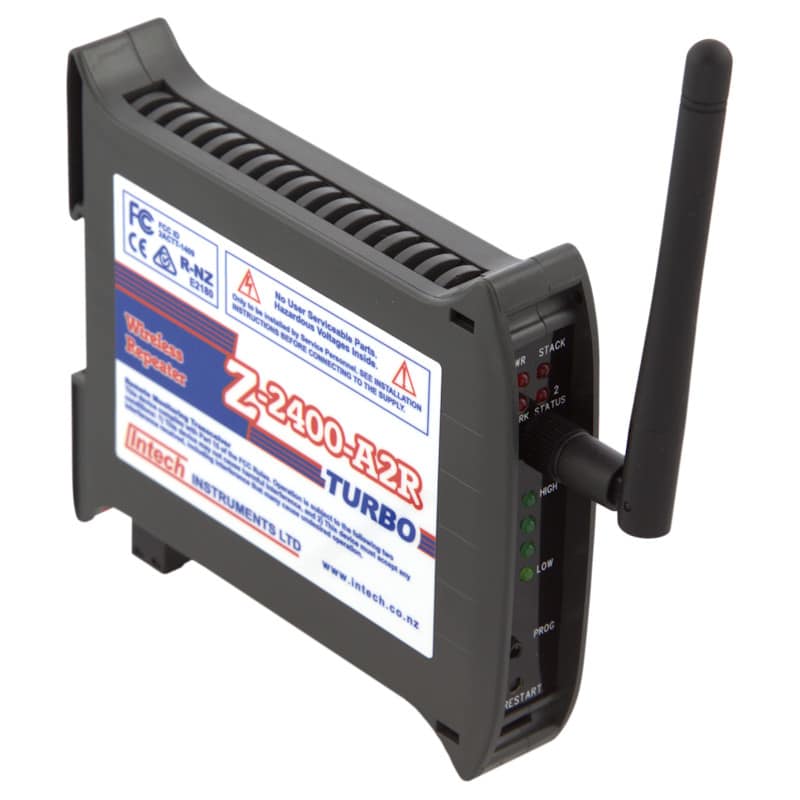

Intech Z-2400-A2R Wireless Remote Repeater Module
Intech XU-USB Programming Cable
uP Configure Software

Z-2400-A2 Series Features

  • Integrated with ZigBee® technology to form a mesh network between nodes
  • Communicates analogue and digital signals via a wireless link
  • No computer required (once units are programmed)
  • Multiple repeater units can be added to extend the wireless range
  • Antenna connection type RP-SMA
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

Description

If you are looking for wireless monitoring and/or remote control solutions, Intech’s Z-2400-A2 Series may be the answer. The Z-2400-A2 devices are integrated with ZigBee® technology to form a mesh network between nodes. The units support the communication of analogue and digital signals via a wireless link.
This technique allows the range of an individual node to be expanded and multiplied, covering a much larger area. When the mesh network discovers a new Z-2400-A2 node, it will automatically incorporate it into the current wireless network.

The series consists of three separate wireless nodes for: Input, Output and Repeating, and does not require a computer to monitor the wireless network. Built on the ZigBee® protocol, this allows for multiple Z-2400-A2 wireless links to operate side by side at the same time.

The Output node is the base and acts as the master for the entire link. The Input node acts as a wireless remote station and seeks for the Output Base to transmit the input signals. The Repeater node is the bridge between the Input and Output wireless nodes, and is only used when the distance between them is too large to communicate directly.

Note: The Z-2400-A2 Series are used for Stand-alone wireless data links. For MicroScan SCADA wireless data links, the Z-2400 Series are used.

Applications:

  • Industry
  • Energy
  • Laboratories
  • Blood Banks
  • Hospitals
  • Agriculture
  • Food Storage
  • Food Processing
  • Water & Waste Water
  • Multiple Locations
  • Mobile Monitoring

Ordering Information:

Z-2400-A2IO
Input and Output Nodes
One Wireless Output node and One Input node, Paired & supplied as a Kit:
Z-2400-A2O: Output Remote Wireless node. 2x 4~20mA Outputs, 4x Digital I/O.
Z-2400-A2I: Input Remote Wireless node. 2x Isolated Universal Inputs, 4x Digital I/O.
Z-2400-A2R
Repeater Node
Repeater node for Wireless Expansion.
PSW-10-FInstrument Quality 24Vdc Power Supply for the Z-2400-A2 Series:
Output Voltage: 24Vdc
Max Current: 1 Amp continuous
Input Power Supply: 100~264Vac
The Z-2400-A2 Series require the XU-USB Programming Key for Software Configuration:
XU-USB (Rev 1)USB Programming Key for programming Z-2400-A2 Series using uP Configure Programming Software (version 1.2.8.0 or later).
(Same Key as used for programming XU Series transmitters, 2400-A16, Z-2400-Sleeper, IN-uP4 and uP4-Din.)

See our Antenna Options (Used when greater distances are involved)

Model Descriptions:

ModelmodeldummyDescription
Z-2400-A2IOThe Z-2400-A2IO is the kit set of the Input (Z-2400-A2I) and Output (Z-2400-A2O) wireless nodes, supplied as a complete set paired to each other with a unique Mesh ID.
Z-2400-A2I Input ModuleThe Z-2400-A2I is a 2 channel analogue input wireless node, when switched on it looks for the output node to sends it’s input values to via the wireless link.
The inputs are individually programmable as follows:
RTD: Pt100/Pt1000, -200°C~800°C
Thermocouple: B, E, K, J, N, R, S, T, with CJC
mA: 0~20mA (4~20mA)
mV: -25~25mV to -200~1000mV
V: 0~1V to 0~18V
Pulse/Digital Max speed 1Hz
It also comes equipped with 4 digital inputs, 2 digital outputs, and 2 relay outputs.
Z-2400-A2OThe Z-2400-A2O is a 2 channel analogue output wireless node. It acts as the base and controls it’s entire ZigBee wireless network. The analogue output is 4~20mA only at 24Vdc. Like the input node, it comes equipped with the matching 4 digital inputs and 4 digital/relay outputs.
Z-2400-A2RThe Z-2400-A2R is quite simply a ZigBee wireless repeater. It is used to boost the signal strength between the other two nodes, input and output, to extend the range. The maximum number of repeater nodes per wireless mesh network is 15.
TYPEZ-2400-A2
Wireless standardIEEE 802.15.4-2006
Wireless range4Km typical line of sight (approximately 50m typical when major obstructions block path of radio link)
Wireless Frequency2405~2485MHz
Frequency Hopping15 Channels
Turbo Wireless Power100mW (or 10mW, user selectable to comply with region wireless standards)
Power Supply9~36Vdc
Power consumption2.5VA Max
Isolation1500Vac between power supply and input or output channels
Programming PortXU-USB Programming Key, uP Configure Software required (free to download)
Data Rate250Kb/s
TYPEZ-2400-A2OZ-2400-A2IZ-2400-A2R
Two Analogue Outputs4~20mA, 700Ω 24Vdc, Isolated16 Bits, Individually Isolated

* RTD: Pt100/Pt1000, -200°C~850°C
* Thermocouple: B, E, K, J, N, R, S, T, with CJC
* mA: 0~20mA (4~20mA)
* mV: -200~200mV, -200~1000mV
* V: 0~10V, 0~18V
* Pulse, Frequency or On/Off, Max speed 0~2500Hz
-
Four Digital InputsFour 0~1Hz, 1.4~30Vdc-
Two Digital OutputsOpen-Drain, 30Vdc, 1A Max-
Two Relay Outputs250Vac or 30Vdc, 5A Max-
One Excitation3Vdc-
LED IndicationsPower, Stack, Network, Wireless Link Quality

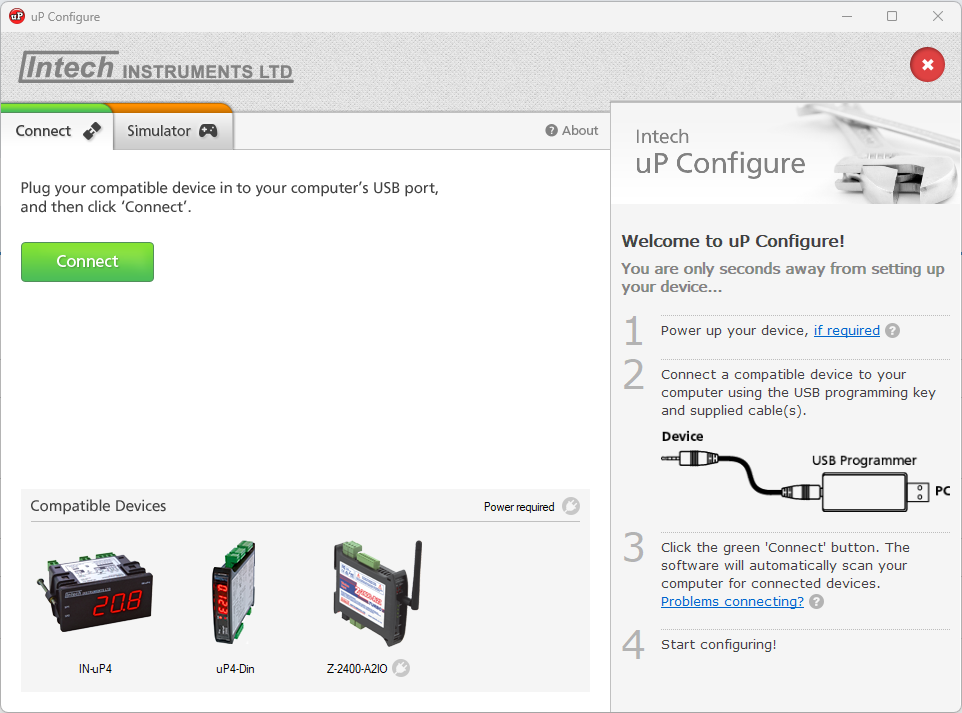

  Smart, simple software to program your Z-2400-A2 Series Wireless products

Download uP Configure Programming Software

uP Configure - Intech Instruments

Note: Requires the XU-USB programming key.

Use uP Configure software to program:

  • Z-2400-A2 Series – Wireless Modules For Analogue & Digital Signals
  • IN-uP4 – Universal Input Indicator
  • uP4-Din – Universal Input Indicator, Din Rail.

uP4 Configure offers a simple interface for connecting to your compatible device, and a range of flexible configuration options, including an extensive library of pre-calibrated ranges and linearization tables for advanced scaling.

Read more >

  • Intech Z-2400-A2 Series - Brochure 377.18 KB
  • Intech Z-2400-A2 Series - Installation Guide 1.07 MB
  • Intech Z-2400-A2R (Repeater) - Installation Guide 469.00 KB
  • Intech Z-2400 Antenna Range - Brochure 291.45 KB
  • Intech Solar Kit for Remote Installations 492.39 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
Z-2400-A2IO KIT

Wireless Input/Output Pair Kit

$1,110.00
Z-2400-A2I

Wireless Analogue/Pulse Input Unit

$555.00
Z-2400-A2O

Wireless Analogue/Pulse Output Unit

$555.00
Z-2400-A2R

Repeater Unit

$480.00
XU-USB-

USB Programming Key

$120.00
