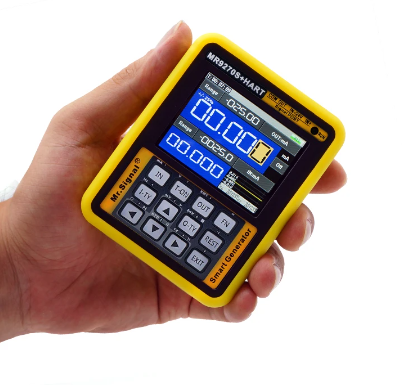

MR9270S + HART

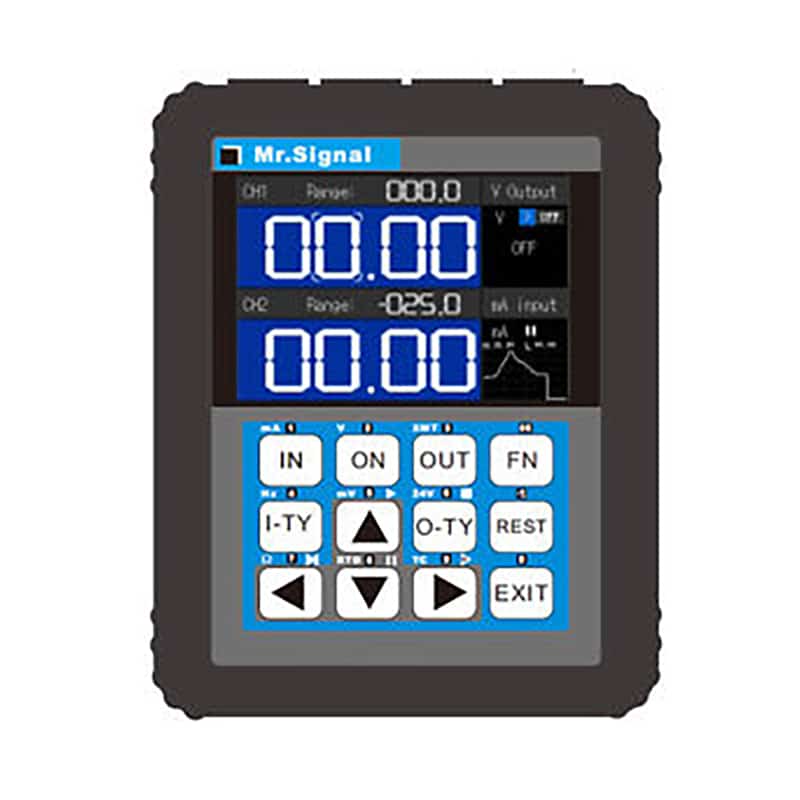

Mr. Signal – Multi-functional Signal Generator

Brand:

Current, Voltage, Signal, Pressure transmitter USB Port Rechargeable Calibrator.

$496.00 Excl. GST

Total: $496.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The Mr Signal PLC Signal Generator is a versatile instrument for regulating valves & debugging process signals. The Mr Signal can do input and output signals at the same time with high precision and good linearity. This signal generator is small in size for convenience.

Functions are easy and programmable through the window menu with a graph to show curves and trends.

The Mr Signal is easy to use, compact, and has broad functionality with fast response.

Features

  • Convenient small size
  • High precision
  • Fast response
  • Good linearity
  • Colour display signal calibrator
  • Simultaneous input and output signals

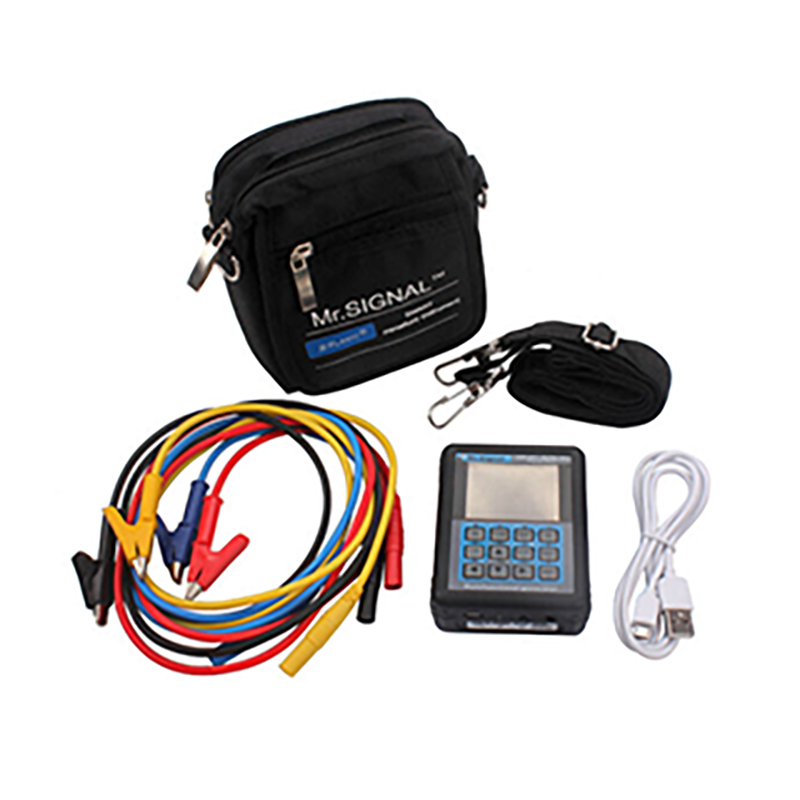

Mr Signal Kit Contains
  • 1 x MR2.0TFTPRO+
  • 1 x 10A/4mm Test Clip (black)
  • 1 x 10A/4mm Test Clip (red)
  • 1 x 10A/4mm Test Clip (blue)
  • 1 x 10A/4mm Test Clip (yellow)
  • 1 x Certificate
  • 1 x Tool bag
  • 1 x USB cable



Technical Specs

  • Working temperature: 0°C~50°C
  • Overall dimensions: 90 x 70x 28mm
  • Weight: 500g
  • Power: Built-in lithium battery: 200ma USB or charging and supply
  • Batery life: 20 ma output can work continuously more than 8 hours

Output
Signal typeSignal rangePrecisionResolution
Current0~24mA0.05%0.01mA
Voltage0~12V0.05%0.01V
Passive current0~24mA0.10%0.01mA
Frequency0~9999Hz0.03%0.01Hz
Frequency: PWM0~100.0%0.10%0.10%
mV/Thermocouple-10~110mV0.05%0.1mV
Resistance(PRO+)40~400Ω0.50%0.1Ω
24V Loop0~24mA0.10%0.01mA

Input
Signal typeSignal rangePrecisionResolution
Current 0-24mA0.10%0.01mA
Voltage-4V-30V0.10%0.01V
Frequency0-9999Hz0.03%0.01Hz
Frequency: PWM0-100.0%0.10%0.20%
mV/Thermocouple-110mV-110mV0.10%0.1mV
Pt100200°C-650°C0.10%0.1°C
Cu5050°C~150°C0.10%0.1°C
Resistance0~400Ω0.10%0.1Ω
