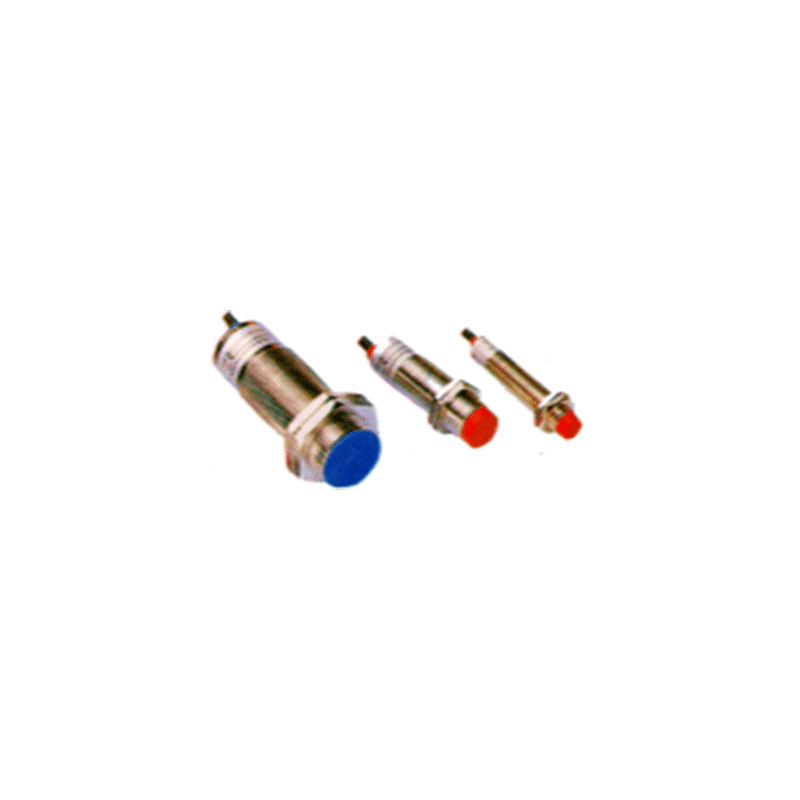

PLX Series – Inductive Proximity Sensor with LED indicator
$56.00 Excl. GST
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Product Details
Description
Inductive proximity sensors are a class of non-contact devices that can detect the presence or absence of metallic objects without the need for physical contact.
PLX Series Features
- IP67 Protection
- Brass nickel plated
- LED indicator
- Cylinder design
Technical Specs
| Type | PLX Series |
|---|---|
| Sensing Distance (Max mm) | PLX10 = 10mm PLX5 = 5mm PLX1204 = 4mm |
| Detectable object (Min. mm) | 3x3mm Ferrous metal |
| Response (Max) | 200Hz |
| Power Source | 10~30Vdc |
| Load Current (Max) | 200mA |
| Consumption | 5mA |
| Cable Length | 2m |
| Housing Material | Brass Nickel plated |
| Ambient Temperature | -25°C~70°C RH85% max. |
| Dimensions (mm) | PLX10 = 50 x ø 30mm PLX5 = 60 x ø 18mm PLX1204 = 60 x ø 12mm |
| Protection Grade | IP67 |
| Output | PLX10 = PNP PLX5 = PNP PLX1204 = PNP/NPN |
Documents
Related Products
TC49
Programmable Digital Counter/TimerIn stock
$230.00 Excl. GST
Select options
This product has options that may be chosen on the product page
LT8M
Digital Hours Run MeterIn stock
$65.00 Excl. GST
Select options
This product has options that may be chosen on the product page
LC8M
Digital TotaliserIn stock
$65.00 Excl. GST
Select options
This product has options that may be chosen on the product page
H7N-6DM
Programmable Digital Counter.In stock
$300.00 Excl. GST
Select options
This product has options that may be chosen on the product page
H7K-52-5U
Programmable Digital Counter.In stock
$250.00 Excl. GST
Select options
This product has options that may be chosen on the product page
CT3-4D2
Programmable Digital Counter/Timer.In stock
$233.00 Excl. GST
Select options
This product has options that may be chosen on the product page
CT1-6D2
Programmable Digital Counter/Timer.In stock
$332.00 Excl. GST
Select options
This product has options that may be chosen on the product page
Clearance
9100
Multi-function Counter/RatemeterIn stock
$850.00 Excl. GST
Select options
This product has options that may be chosen on the product page
7932
Programmable Predetermining Counter/TimerIn stock
$485.00 Excl. GST
Select options
This product has options that may be chosen on the product page
7922
Programmable Predetermining CounterIn stock
$545.00 Excl. GST
Select options
This product has options that may be chosen on the product page
7111
Self-powered Totalising CounterIn stock
$120.00 Excl. GST
Select options
This product has options that may be chosen on the product page
Similar Products

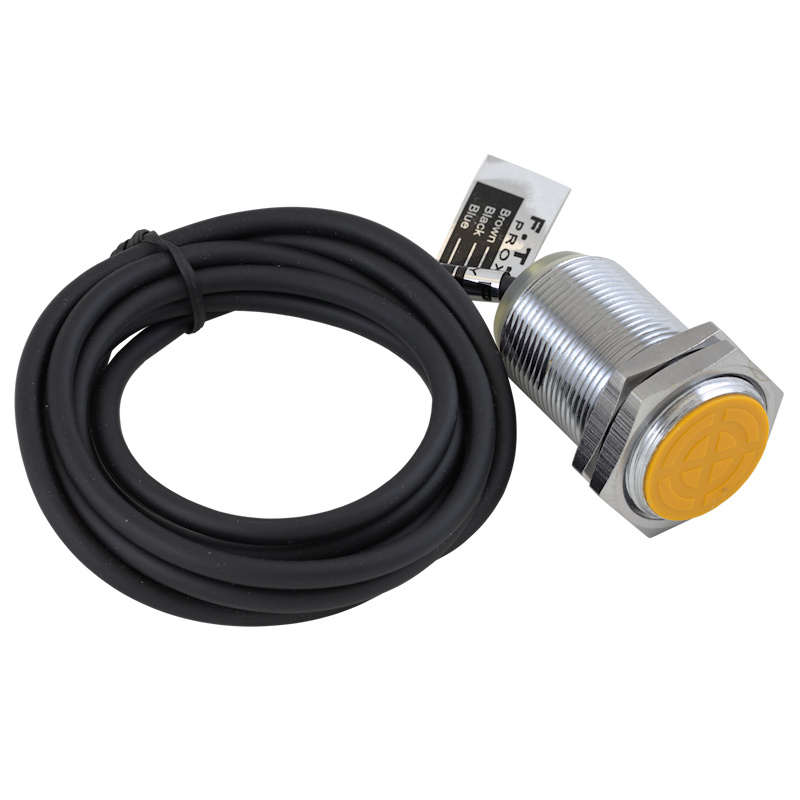

PL Series
