Programmable digital counter/timer CT3-4D2
Click to enlarge

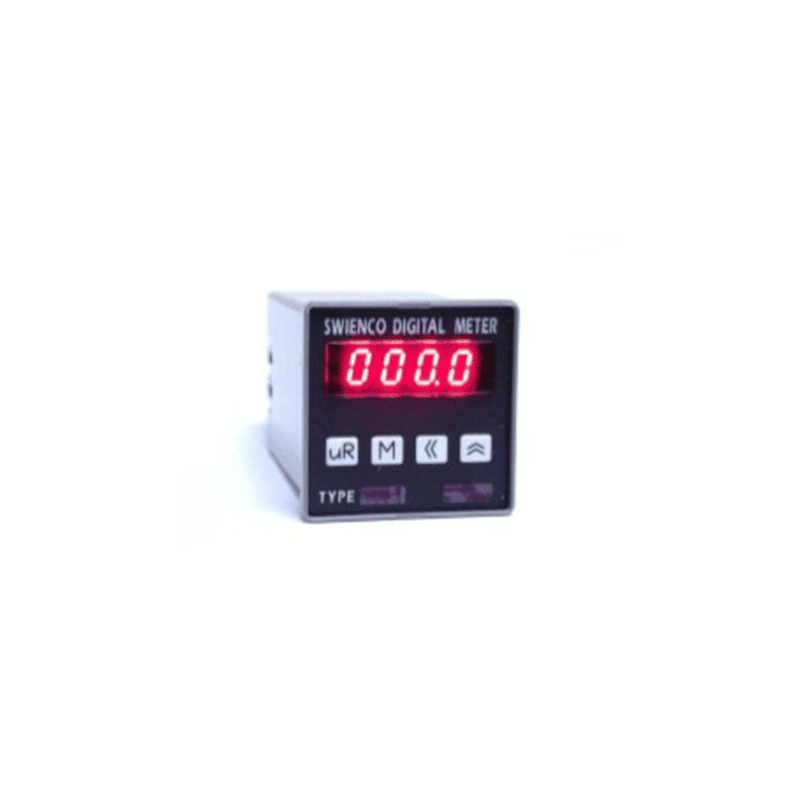

CT3-4D2 – Programmable Digital Counter/Timer.

Brand:

$233.00 Excl. GST

4 digit LED programmable digital counter/timer, 48x48mm

Total: $233.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

CT Series are a programmable counter, timer indication/control meters.

The unit is good for both counter & timer, counting versions, counting speeds for counter, timer ranges for timer.

All unit provides auto/man/power off, reset, eeprom memo, offset, gate functions. There is also a wide pre scale factor for counter.

Features:

  • The unit is good for both counter & timer applications.
  • Counting versions.
  • Counting speeds for counter.
  • Timer ranges for Timer.
  • All unit provides auto/man/power off/Reset, offset, gate functions.
  • Pre-scale factor for counter.
  • 48 x 48

Technical Specs

TYPECT3-4D2
Digits:4 digit LED.                   2 presets.
Power supply:110/220Vac.
Output:2 x Relay SPDT. 3A, 250Vac.
Sensor power:12Vdc, 20mA.
Counter………..
Mode:Up count.
Reset:External, Auto, Manual.
Pre-scale:000.000~999.999
Input:Contact.                  30 Hz max.
Solid state.             6~30Vdc.                 3k Hz max.
Timer…………..
Mode:On delay
Reset:External, Auto, Manual.
Input:External gate for timer hold.
Ranges:4 selectable ranges,

99H59M, 99M59S, 999.9S, 99.99S
