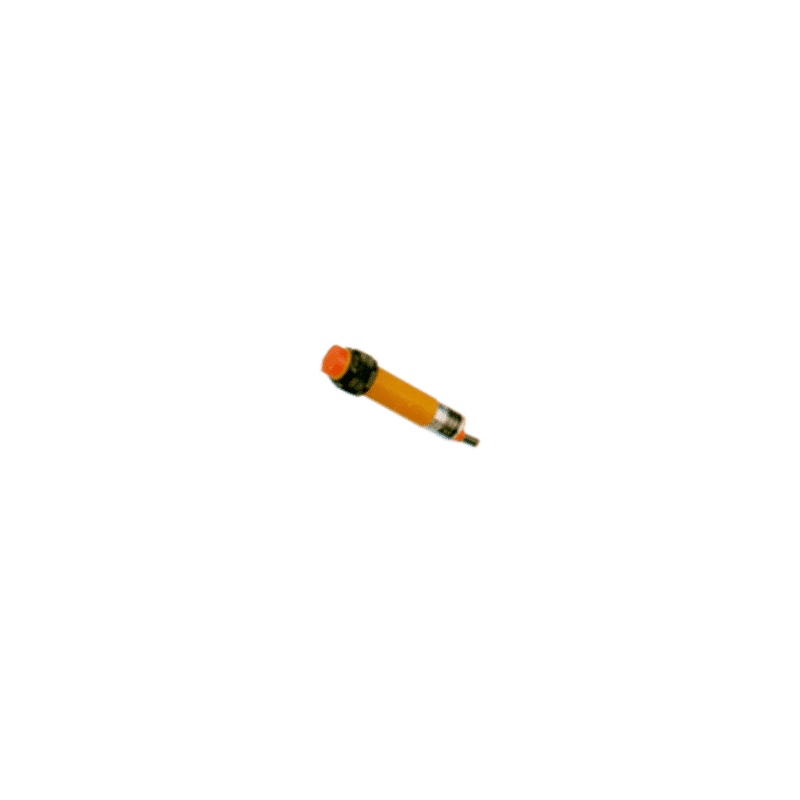

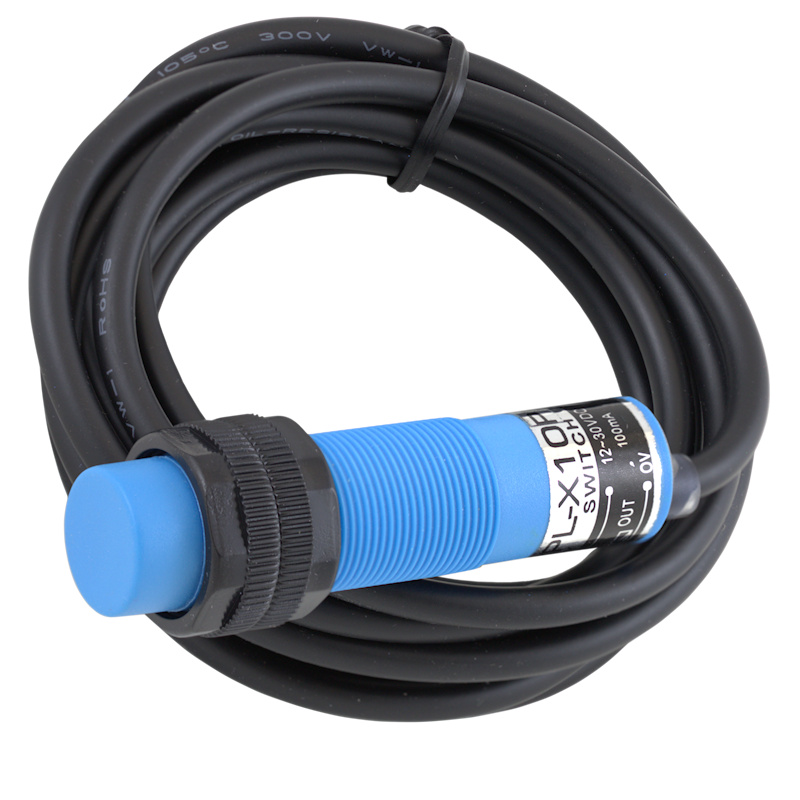

CPLX10 – Capacitive Proximity Sensor with LED Indicator
$99.00 Excl. GST
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Product Details
Description
Capacitive Proximity sensors detect metallic and non metallic materials using capacitance variations. These sensors operate on the principle of variation in capacitance.
CPLX10 Features
- Range: 30 mm
- IP64 Protection
- LED Indicator
Technical Specs
| Type | CPLX10 |
|---|---|
| Sensing Distance (Max mm) | 100 adj. |
| Detectable object (Min. mm) | 5x5mm Metal & Non Metal |
| Response (Max) | 50Hz |
| Power Source | 10~30Vdc |
| Load Current (Max) | 200mA |
| Consumption | 15mA |
| Cable Length | 2m |
| Housing Material | ABS |
| Ambient Temperature | -25°C~70°C RH85% max. |
| Dimensions | 74.3mm x 18mm |
| Protection Grade | IP64 |
| Output | PNP (CPLX10P) NPN (CPLX10N) |
Documents
- Quick Datasheet - Saint Wein Sensors 252.54 KB
