Home | Products | Automation | Counters/Totalisers | TC49

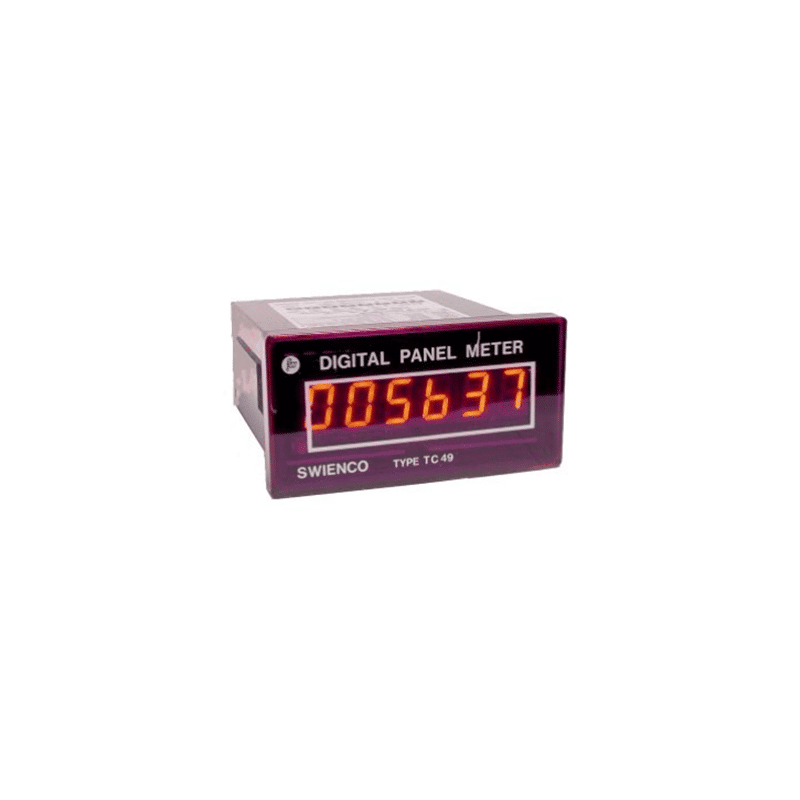

TC49 – Programmable Digital Counter/Timer.

96 x 48, 6 digit LED Counter/Timer.

Programmable digital counter/timer TC49

TC49 Features:

  • Incorporative an exclusive one-chip microcomputer
  • One unit with user programmable DIP SW inside for TIMER/COUNTER
  • In TIMER version, cover 8 different timer ranges cover 0.001S~9999999.9.H
  • In COUNTER version, cover 7 different counting versions.
  • EEPROM for power failure memory backup.
  • Counter has dual input for phase difference or command or gate or deduct
  • Counter has reversible counting with x1 or x2 or x4 count of phase difference.
  • Up or Down counting speed 30 & 3K cps.
  • Outstanding noise immunity with Schmitt trigger circuit applied to all input terminals. Software de-bouncing to 30 cps for SW or contact input.
Brand: SAINT WIEN
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The TC49 is a Programmable Digital Counter & Timer, offering 8 timer ranges and 7 counting versions. Incorporated with EEPROM for power failure memory.

TYPETC49
Digits:4 digit LED.                   2 presets.
Power supply:110/220Vac.
Output:2 x Relay SPDT. 3A, 250Vac.
Sensor power:12Vdc, 50mA.
Counter………..
Mode:7 counting versions.
Reset:External
Input:Contact.                 30 Hz max.
Solid state.             3k Hz max.
Timer…………..
Mode:Up
Reset:External
Input:Contact.
Ranges:From 99H59M59S to 999.999S
  • Programmable Digital Counter-Timer TC49 - Data Sheet 101.30 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
TC49-6DM

96 x 48, 6 digit LED programmable digital counter/timer

$230.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Saint Wien Enterprise Inc., Ltd products. Please contact the Saint Wien Enterprise Inc., Ltd distributor in your country if you require sales or service support for Saint Wien Enterprise Inc., Ltd products.
