Home | Products | Automation | Counters/Totalisers | 7932

7932 – Programmable Predetermining Counter/Timer

6 digit supertwist LCD programmable preset counter with prescaler and EEPROM data storage in an IP65 DIN case.

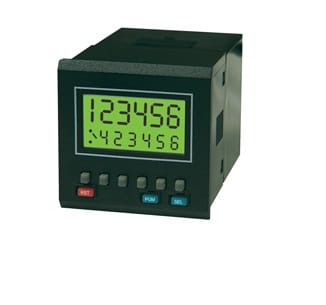

Programmable predetermining counter/timer 7932

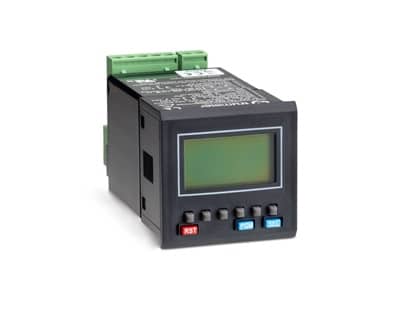

Programmable predetermining counter/timer 7932

Features

  • Simple programming via menu driven display
  • High visibility supertwist LCD display can be viewed from any angle
  • Backlight programmable ON, OFF or AUTO
  • 40 years data retention with no power
  • Programmable decimal point up to 3 places
  • Operates from 85-265VAC or 10-26VDC
  • 12VDC output to drive a sensor (when AC powered)
  • Opto-isolated inputs
  • Wide range of prescaling
  • Output relay contacts rated at 5A
  • Output can be set to latch or pulse with programmable pulse duration
  • Environmental protection to IP65
  • Standard DIN housing
  • CE, UL and cUL approved
Brand: TRUMETER
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Programmable Counter / Timer Relay, with prescaling and EEPROM data storage

The 7932 is a 6-digit programmable preset counter / timer with prescaler, quadrature input and EEPROM data storage. Designed for a wide range of applications and built to the highest standards it offers both counting and timing functions in an IP65 sealed DIN housing.

This versatile count up or count down predetermining counter/timer with prescaler has a wide range of innovative and attractive features. The count inputs are opto-isolated and can be sink (NPN) or source (PNP). The count is on the main display and the preset value is on the lower display. Reset can be remote, manual or automatic with a manual over-ride option.

All programming, reset and presetting can be carried out from the front panel although the keys can be remotely disabled from the rear of the unit.

TYPE7932
Supply Voltage85 - 265VAC or 10 - 26VDC at 100mA
Auxiliary Output Supply12VDC (+20% -0%) @ 75mA (when operating from AC supply)
Display2 rows of 6 digits,supertwist black on silver LCD with yellow/green LED backlight.Upper row 7mm (0.28in) high indicates count,lower row 4mm (0.16in) high indicates P1 preset point.Also Relay Active annunciator
Backlight ControlProgrammable to Always ON,Always OFF or AUTO (ON for 30s following last keypress)
Preset PointsUser selectable preset point 1 - 999999
Count InputsHigh Speed NPN/PNP .5 - 30VDC.Maximum input frequency 10kHz.Low Speed Opto-isolated 12 260VAC/DC.Maximum input frequency 30Hz
PrescalerMultiply 0.00001 - 9.99999,default 1.00000 Divide 1 - 99999,default 00001
Manual ResetCan be disabled on installation or remotely
Remote ResetContact closure or pulse (15 ms response time)
Automatic ResetProgrammable for automatic or Manual/Remote reset
Data Retention40 years minimum
Output RelayContact Connection SPDT Contact Rating 5A 260 VAC 30 VDC 1300 VA/150 W.
Operating Temp.-10°C to +60°C
Storage Temp.-20°C to +70°C
Environmental ProtectionIP65 when properly installed using the sealing gasket supplied (without bezel)
  • Programmable Predetermining Counter-Timer 7932 - Data Sheet 93.60 KB
  • Programmable Predetermining Counter-Timer 7932 - Instructions 662.99 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
7932

6 digit Predetermining counter/timer

$385.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Availability: New Zealand only.
