Home | Products | Level | Level Switches | Vibrating Rod | NIVOCONT R

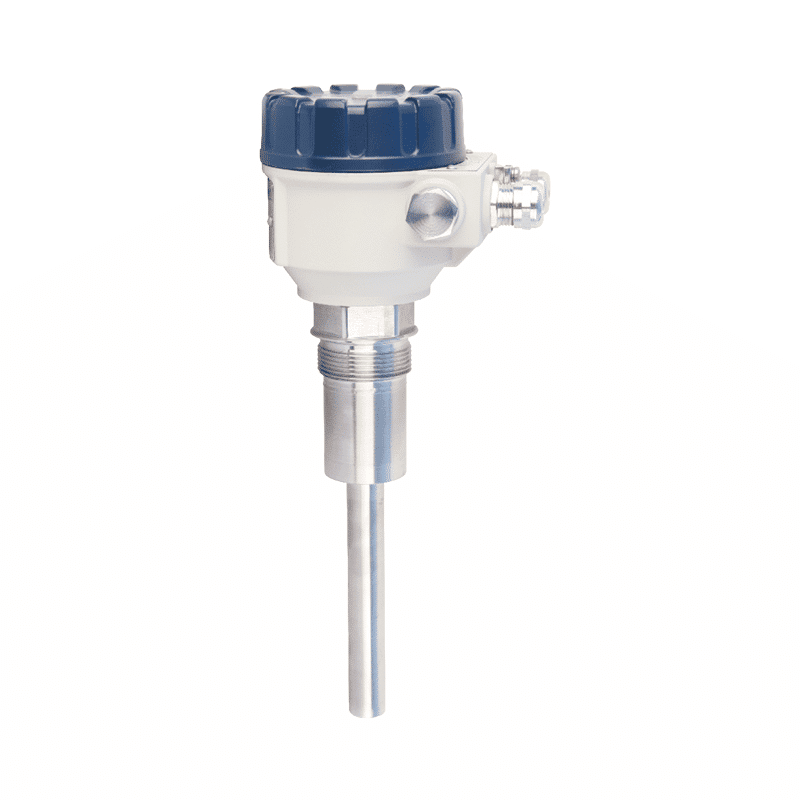

NIVOCONT R – Vibrating Rod Level Switches

Vibrating rod level switch for powders and granular solids with Standard probe, Extended probe, cable extended probe

RKH Series Vibrating Rod Level Switches

NIVOCONT R Main Features

  • Extension up to 20 m
  • Adjustable sensitivity
  • Max. medium temperature: 160 °C
  • Universal supply voltage
  • Dust explosion protection
  • Fine polished probe
  • IP67 protection
  • 5 years warranty

Applications

  • Powders, pellets, granulates
  • Grains
  • Ground products
  • Stone-powder, chippings
  • Cement, sand
  • Coal, slag
Brand: NIVELCO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents
https://www.intech.co.nz/wp-content/uploads/2019/11/nivocont_r.mp4

The NIVOCONT R series of vibrating rod level switches are robust instruments designed for low and high level indication of granules and powders with a minimum of 0.05 kg/dm³ density. Mounted on tanks, silos or hopper bins it can control filling / emptying, or give fail-safe alarm signals. The highly polished version is recommended to use for abrasive mediums.

The operation principle is based on that the electronic circuit excites a vibration in the rod probe. When the medium reaches and covers the rod, its vibration stops, when the medium leaves the rod it returns to vibrate freely. The electronics senses the change of vibration and gives output signal after a selected delay.

Type RKH Series RKR Series RKK Series
Verison Standard Pipe Extended Cable Extended
Insertion Length 207 mm (8.15 inch) 0.3 – 3 m (1 – 10 ft) 1 – 20 m (3.3 – 65.5 ft)
Material Wetted parts 1.4571 (316Ti) stainless steel Vibrating part: 1.4571 (316Ti); cable: PE cover
Process connection 1½" BSP; 1½" NPT as per order code
Output See: output data in Brochure
Medium temperature range Standard: -30 °C...+110 °C High temp. version: -30 °C … +160 °C -30 °C … +80 °C (-22 °F … +176 °F)
Ex version: see temperature data in Brochure
Medium pressure Max. 2.5 MPa (25 bar) Max. 0.6 MPa (6 bar)
Max. load Force 500N - 45kN
Torque 100Nm 100Nm -
Medium density (1) Minimum 0.05 kg/dm3 (0.05 S.G.) (granular size 10 mm [0.4 inch])
Response time (selectable) < 2 sec or 5 sec ±1.5 sec
Power supply 20 – 255 V AC/DC, Ex: 20 – 250 V AC, 20 – 50 V DC
Power consumption ≤ 2.5 VA / 2 W
Housing material Paint coated aluminium or plastic (PBT)
Electrical connection 2x M20x1.5 plastic cable glands, for Ø6 – 12 mm cable + 2x NPT ½" internal thread for cable protective pipe 2 pcs. terminal blocks for 0.5 – 1.5 mm2 wire cross section
Electrical protection Class I
Ingress protection IP67
Mass Metal Housing 1.88 kg 1.88 kg + 1.4 kg/m 1.88 kg + 0.6 kg/m
Plastic Housing 1.5 kg 1.5 kg + 1.4 kg/m 1.5 kg + 0.6 kg/m
(1) Depends on the internal friction and the granular size of the medium
NIVOCONT R Vibrating rod level switches
R (1) (2) - (3) (4) - (5)
(not all code versions are available)
Type Code Specifications
Version (1) K Standard
S Standard polished
H** High temperature
T** High temperature polished
Process connection /
Extension (2)
H 1½"
BSP
Standard version
R Pipe extended
K Cable extended
N 1½"
NPT
Standard version
L Pipe extended
C Cable extended
Housing (3) 5 Metal
6 *** Plastic
Insertion length (4) 02 Standard 207 mm (8.14")
03 Pipe
Extension
300 mm (1 ft)
04 400 mm (1.31 ft)
10 1000 mm (3.28 ft)
11 1100 mm (3.6 ft)
30 3000 mm (9.8 ft)
01 Cable
Extension
1 m (3.28 ft)
02 2 m (6.56 ft)
20 20 m (65.61 ft)
Power supply / Output / Ex (5) 1 20 – 255 V AC/DC / Relay
3 20 – 255 V AC/DC / electronic
5 20 – 250 V AC
20 – 50 V DC / Relay / Ex
*⁾ The order code of an Ex version should end in „Ex”
**⁾ Only for Standard and Pipe extended versions
***⁾ Not available in Ex version
  • Nivelco RKH Series Vibrating Rod Level Switches - Brochure 2.86 MB
  • Nivelco RKH Series Vibrating Rod Level Switches - User Manual 1.07 MB
  • Nivelco RKH Series Vibrating Rod Level Switches -Technical Drawing 23.58 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
RKH-502-1

Standard probe length 207mm, 1 1/2″ BSP, Aluminium (paint coated), SPDT, potential free relay; 250Vac, 8A

$1,042.00
RKH-602-1

Standard probe length 207mm, 1 1/2″ BSP, Plastic housing, SPDT, potential free relay; 250Vac, 8A

$985.00
RKR-605-1

Pipe Extended Probe 0.5m, 1 1/2″ BSP, Plastic housing, SPDT, potential free relay; 250Vac, 8A

$1,265.00
RKK-601-1

Cable extended probe 1m, 1 1/2″ BSP, Plastic housing, SPDT, potential free relay; 250Vac, 8A

$1,398.00

Other models and ranges available on request – please contact us.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Nivelco products. Please contact the Nivelco distributor in your country if you require sales or service support for Nivelco products.
