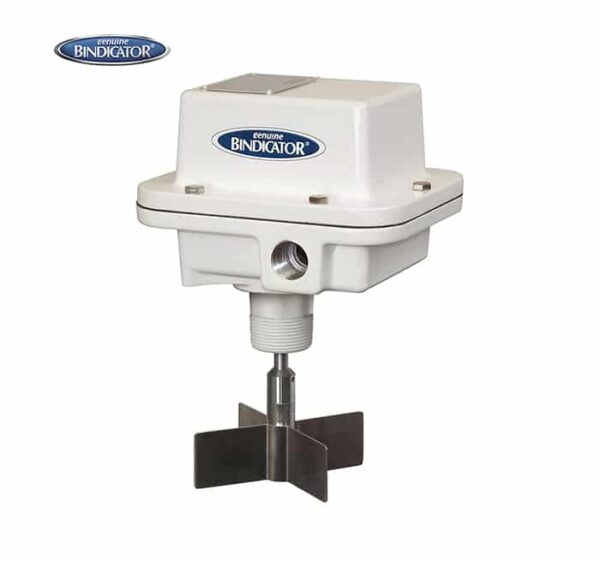

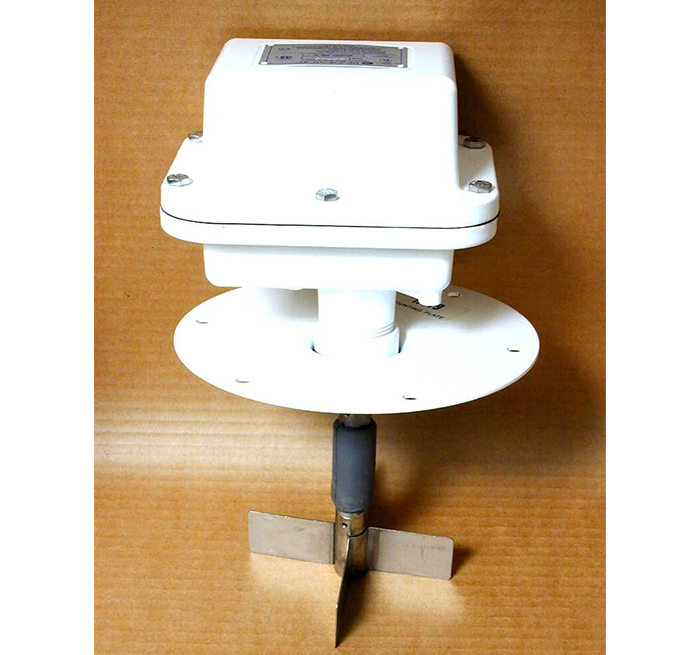

Rotary Paddle Level Switch Bindicator RB Series RB-HM-5

Click to enlarge

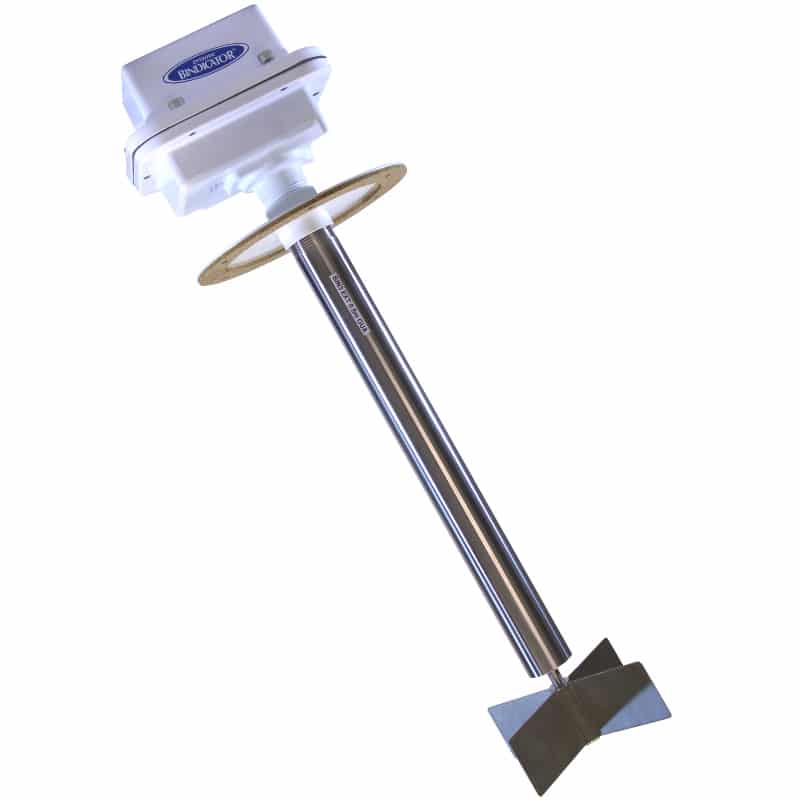

Intech Bindicator Assembly for Exending the Rotary Paddle

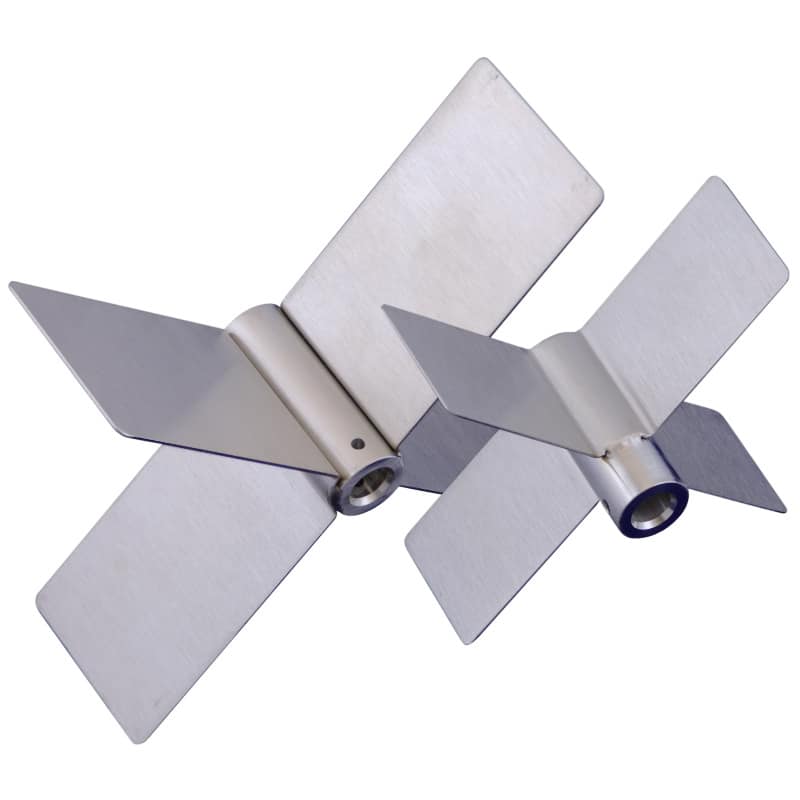

Intech Paddles for Bindicator Rotary Paddle Level Switches

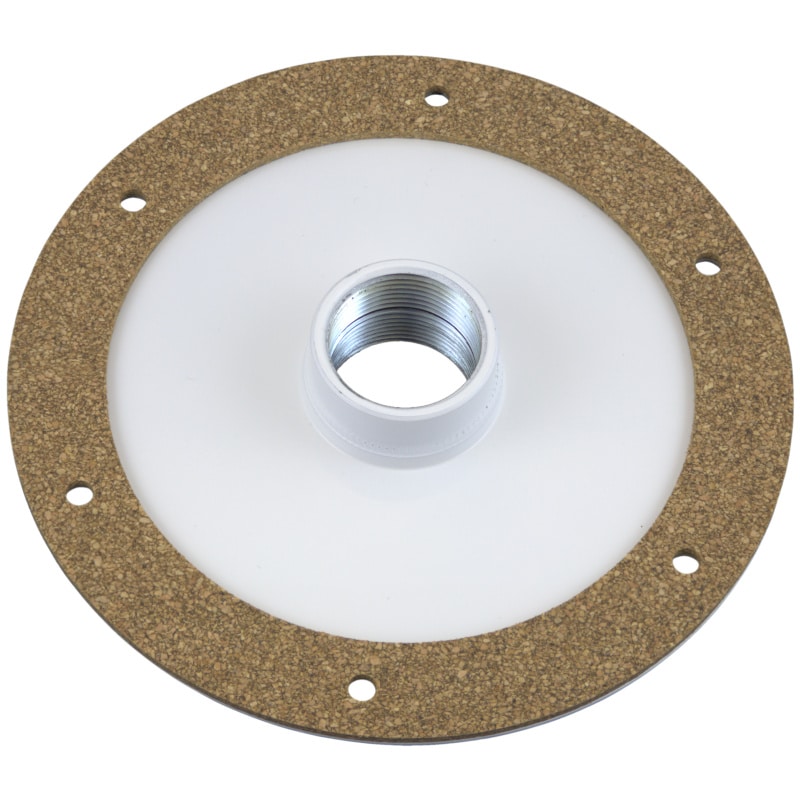

Intech Mounting Plate for Bindicator Rotary Paddle Level Switches

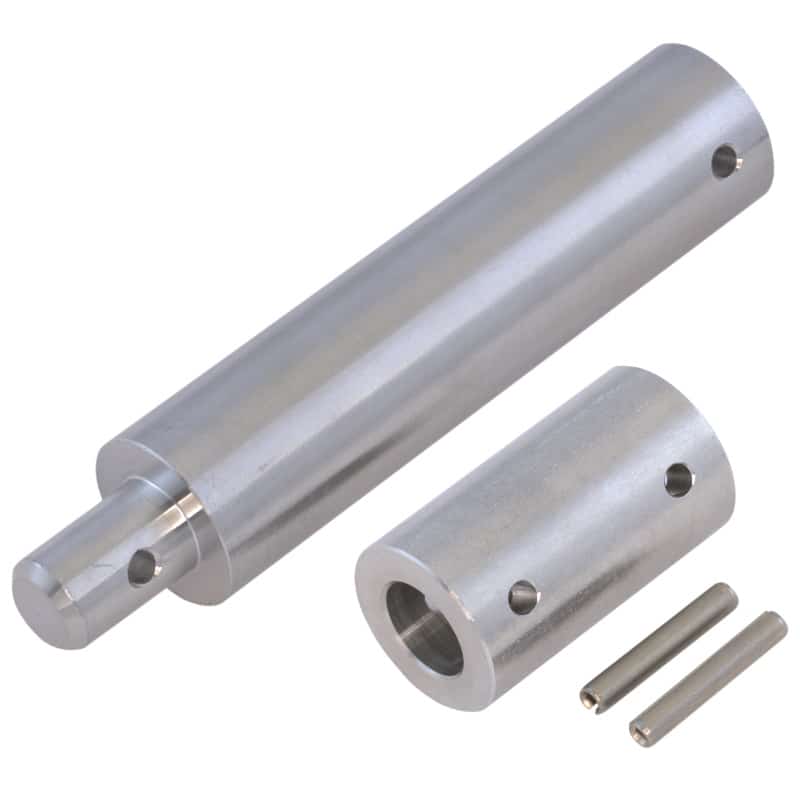

Intech Shafts for Bindicator Rotary Paddle Level Switches

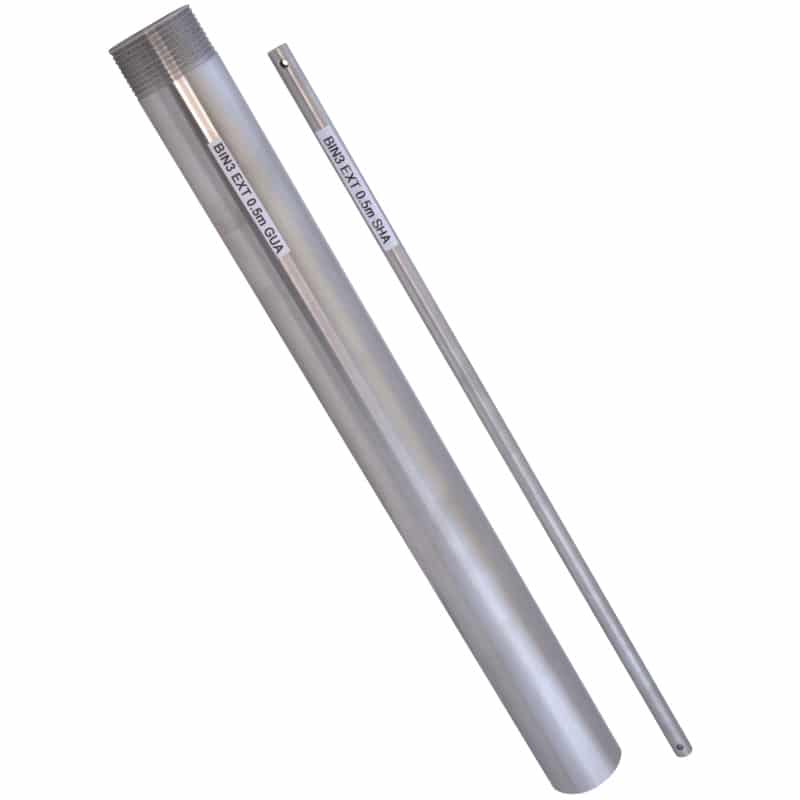

Intech 0.5m Extension Guard and shaft for Bindicator

Product Details

Description

The Roto-Bin-Dicator is the most universal of all level sensing technologies and is the most popular level switch used in dry bulk materials. The RotoBin-Dicator is a rotating paddle type, bulk material level sensor offered with a wide variety of paddle options for unequaled application versatility. It is easy to install and requires no special tools or calibration.

The Original

Introduced to the dry bulk industry in 1954, Roto-Bin-Dicator is the original rotating paddlewheel type dry bulk level indicator. This well-proven, easy to use, simple to install product remains the leader in dry bulk level indication in tanks and silos around the world.

Unmatched Flexibility

With an extensive choice of paddle options, the Roto can adapt to a variety of applications and materials. These paddlewheel switches can be mounted vertically or horizontally in a tank with extended shafts if required.

Technology: Paddlewheel

Applications: Universal, dry bulk point level detection

Paddle Options

An extensive list of paddle and extension options, the Roto can adapt to a variety of applications and materials; paddles range from a 4-vane to curved to 90 degree and all extensions can be customized to fit the tank or vessel.

Versatile Mounting Options

The Roto-Bin-Dicator is designed to fit into almost any environment. The housing can have either imperial or metric conduit entries, and the process fitting can be made to fit essentially any connection type or thread.

Global Approvals

Roto-Bin-Dicator is available with UL approval (for both the US and Canada) and CE marking (electromagnetic compatibility and low voltage directives) for ordinary locations or explosion-proof and dust ignition-proof hazardous area ratings.

Features

Mounting plate: Wall mount. Pipe mount optional
Temperature: -10~70°C
Output relay: 10amp SPDT
Power supply: 230Vac (RB Model) 24Vdc (RD model) 24Vac Available on request
Rating: NEMA 4X (RB, RD Models)
Flexible neoprene shaft drive
Quick installation, no calibration required
Long-lasting, sealed motor keeps maintenance and replacement costs low
High quality shielded bearings for minimal maintenance
Extensive paddle options to adapt to a variety of applications
Extended shaft fittings available

Technical Specs


RB/RD Series Specifications
FUNCTIONAL
Power Requirements	24/120/240 VAC; 50/60 Hz, 24 VDC. 24Vac (available on request)
Power Consumption	5 watts
Motor	1 rpm
Fail-Safe Circuitry	Low level fail safe
Switch Rating	General Purpose: SPDT 20A @ 125/250/480 VAC. Pilot Duty: 345 VA, 115 VAC; 690 VA, 230 VAC
Process Temperature	-20º to 302º F (-29º to 150º C) Standard Up to 500º F (Up to 260º C) with Extension 3 and Lag
PHYSICAL
Drive Shaft Assembly	Precision machined shaft with two shielded ball bearings
Shaft Seal	Teflon®/Viton® Lipseal rated 1 /2 micron @ 30 psi (2.1 kg/cm2) @ 400º F (204º C)
Housing and Cover	Type 4X/IP66 polyester coated aluminum casting
Mounting Plate	8” outside diameter with 1-1/4” NPT pipe threaded coupling; standard polyester coated mild steel; optional 304 stainless steel; H-19 Half Coupling; H-192 Full Coupling
Conduit Entry	3/4” NPT or M20 x 1.5
Rigid Shaft and Paddle	Metal parts of all designs are 316 stainless steel
Flex Shaft	Available in neoprene, 155º F (68º C) or silicone, 400º F (204º C) coatings
Shipping Weight	Aluminum housing 10 lbs (4.5 kg) Stainless steel housing 16 lbs (7.3 kg)
