The FC/FD Series is a mini magnetic float level switch product line that is very cost-effective and compact. As such these magnetic float level switch units are easily installed on small machinery and in areas where very little space is available inside/outside the vessel in which they are installed.
FC Series – Mini Float Level Switches
Plastic Models
- Compact, affordable and simple magnetic float level switch design for liquid level detection.
- Wide range of installation options.
- Variety of available process connections.
- Multiple materials available.
Brand: FINETEK
Usually in stock
Request a quoteScroll down for product range

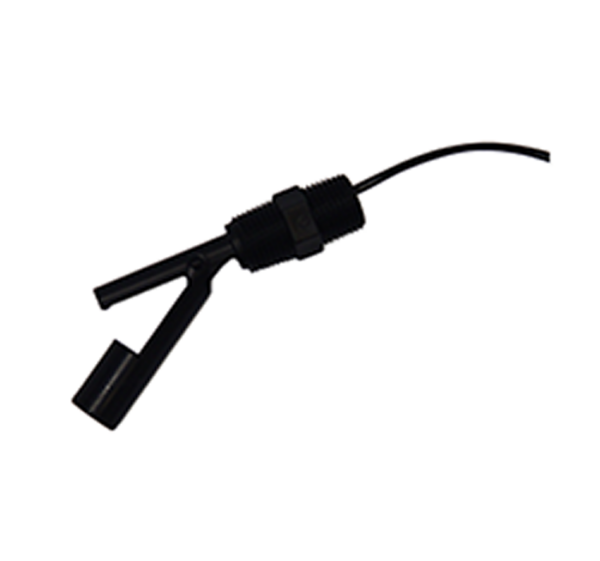

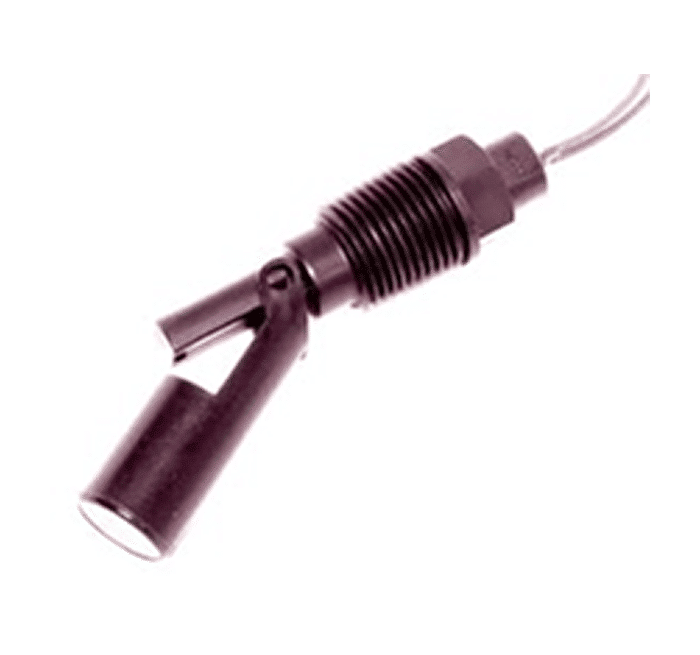

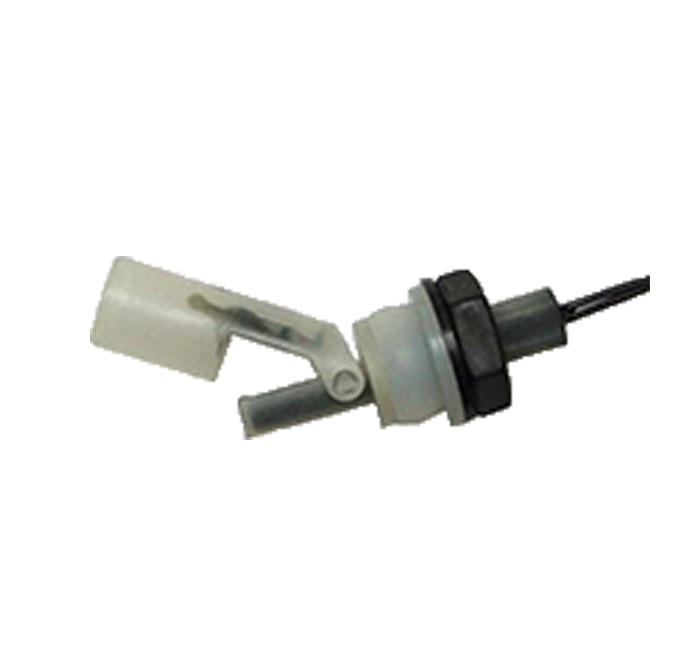

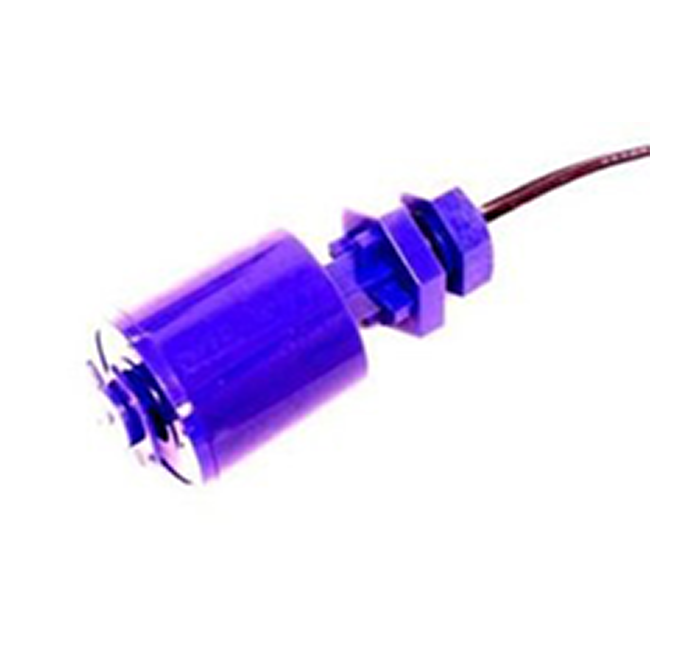

TYPE | FCV35GD / FCV33FDE - Top mounted level switch. | FCH31PD - Side mounted level switch. | FCH51PD - Side mounted level switch. | FCH23FD - Side mounted level switch. |
Material | Polysulfone, SG 0.85. (FCV35GD) / PVDF, SG 0.85. (FCV33FDE) | - | - | - |
Temperature | -20~80°C. | -20~80°C. | -20~80°C. | -20~60°C. |
Pressure | 4 bar. | 4 Bar. | 4 Bar. | 4 Bar. |
Switch | 50W, 240Vac / 200Vdc. SPST reed switch. | 50W, 240Vac / 200Vdc. SPST, N/O, reversible. | 50W, 240Vac / 200Vdc. SPST, N/O, reversible. | 50W, 240Vac / 200Vdc. SPST, N/O, reversible. |
Mount | 1/8” BSP. Polysulfone. | 1/2” NPT. Polypropylene. | 1/2” NPT. Polypropylene. Thread front & back of hex. | 16mm Bulkhead with nut. PVDF. |
Float | Float: 25mmØ cylindrical. | Polypropylene, SG 0.65. 17.5mmØ cylindrical. | Polypropylene, SG 0.55. 17.5mmØ cylindrical. | PVDF, SG 0.85. 17.5mmØ cylindrical. |
Product Range
Code | Specifications | Price | Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
FCH23FD | Mini Float Level Switch, Side Mount, 16mm bulkhead/nut, PVDF | $82.00 | |||||||||
FCH31PD | Mini Float Level Switch, Side Mount, 1/2″NPT, PP | $70.00 | |||||||||
FCH51PD | Mini Float Level Switch, Side Mount, 1/2″NPT Front & Back, PP | $82.00 | |||||||||
FCV33FD | Mini Float Level Switch, Top Mount, 1/8″BSP, PSU Stem, PDVF float | $82.00 | |||||||||
FCV35GD | Mini Float Level Switch, Top Mount, 1/8″BSP, PSU | $82.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech Instruments Ltd are the New Zealand distributor for Finetek products. Please contact the Finetek distributor in your country if you require sales or service support for Finetek products.
