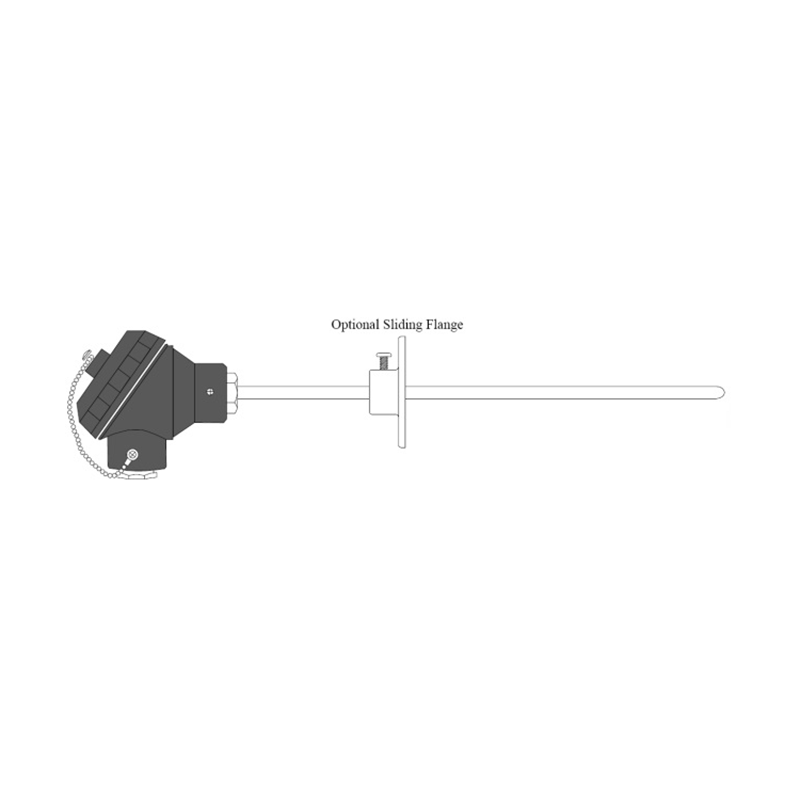

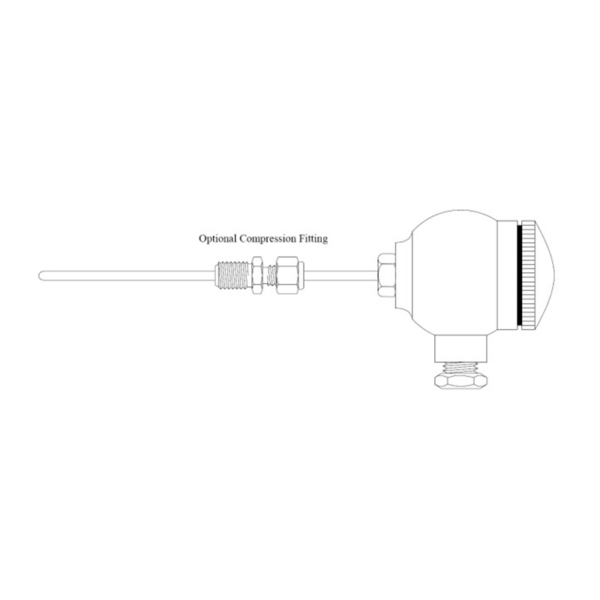

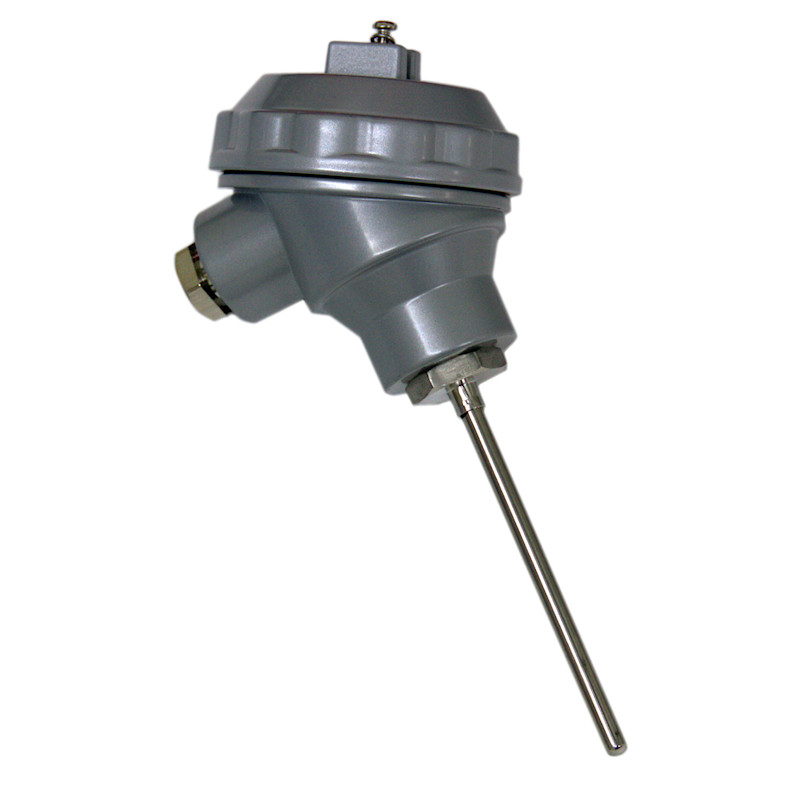

MRH / MRHP Series – Mineral Insulated RTD Probes with Protection Head (Tip rated to 500°C)

Pt100 Probes with protection head, process connection and maximum temperature rating (at probe tip) 500°C

Features

RTD Pt100 DIN standard element, others available on request
Temperature range from -190~500ºC
All sheath materials 316SS
Standard Aluminium head, other terminal heads available:
– Polypropylene (White) Large only (Add $4.00)
– Machined Stainless Steel, Large Only (Add $140.00)
Optional head-mount transmitter, different models.
– XU2HN, Non Isolated (Add $100.00)
– XU2HI, Isolated (Add $200.00)
– LPN-R-H, Non Isolated (Add $125.00)
– dTRANS T01-B-Ex, HART® and Ex Rating (Add $690.00)

MRH/MRHP SERIES
Technical Specifications and Ordering Information
Item	Code								Specification
Model	MRH-								Mineral Insulated RTD Probe with Protection Head
	MRHP-								Mineral Insulated RTD Probe with Protection Head and 1/2″ BSP Process Fitting^
Element		S							Single (Pt100)
		D							Duplex (2 x Pt100)
		X							Other (E.g Pt1000)
Outer Diameter*			6.0-						Millimetres (Standard, 316SS)
			X-						Other
Sheath Length				xxx-					Millimetres (Specify)
Protection Head					SA-				Small Aluminium
					SB-				Small Bakelite (Black)
					LA-				Large Aluminium
					LB-				Large Bakelite (Black)
					LP-				Large Polypropylene (White)

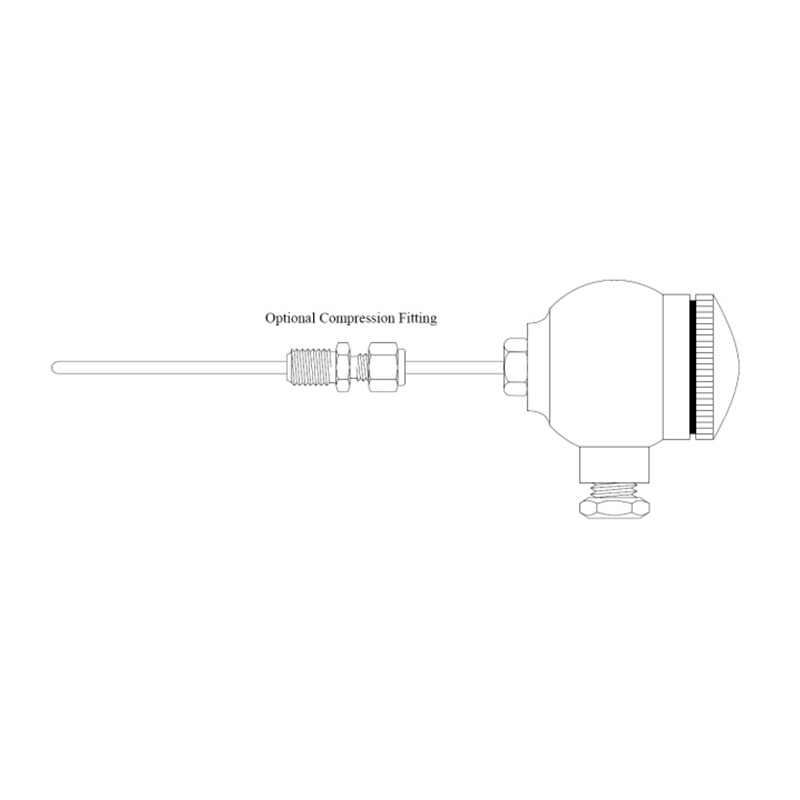

					SS-				Large Machined Stainless Steel
Transmitter**						N-			None
						H-			XU2HN Non Isolated Head Transmitter
						I-			XU2HI Isolated Head Transmitter
						L-			LPN-R-H Non Isolated Head Transmitter
						E-			dTRANS T01-B-Ex In-Head Transmitter with HART and Ex Rating
Transmitter Range							N-		None
							55-		-50~50°C
							05-		0~50°C
							10-		0~100°C
							15-		0~150°C
							20-		0~200°C
							25-		0~250°C
							xx-		Special range (please specify)
Options								N	None
								FR	Fast Response Tip
								W	Wall Mount Bracket
								G	Spring Loaded
^ Other Process connection types available on request
* Flame Proof head must be used with a Barstock Thermowell
** Fits Large Head only
Model No. Example: MRH-S6.0-300-LP-E-05-N (Mineral Insulated RTD Probe with head, single element, 6.0mm diameter, 300mm sheath length, large polypropylene head and dTRANS T01-B-Ex transmitter ranged to 0~50°C)

Product Range

Product Range:
Code	Specifications	Price
MRH-S6.0-xxx-SA-N-N-N	MRH Probe with Small Aluminum head, 6.0mm, 316SS. Lengths available: 100, 150, 200, 250, 300mm (Specify)	$345.00
MRH-S6.0-xxx-LA-N-N-N	MRH Probe with Large Aluminum head, 6.0mm, 316SS. Lengths available: 100, 150, 200, 250, 300mm (Specify)	$355.00
MRHP-S6.0-100-LA-N-N-N	MRHP Probe with 1/2”BSP Large Aluminum head, 6.0mm, 316SS. Lengths available: 100, 150, 200, 250, 300mm (Specify)	$378.00
MRH-MISC	MRH/MRHP Miscellaneous Probe – If you need something that is not here. Please confirm your Ordering code when ‘Confirming Order’ under ‘Your Notes’ area.	$0.00

Note: Please contact us for more Mineral Insulated Probe options

All prices are in NZ$, and GST exclusive and are subject to change without notice.
