P1/P2 – Pockets

Brand:

Fabricated Construction. To use with temperature probes.

$0.00 Excl. GST

Length *

to fit 150mm stem

to fit 200mm stem

to fit 250mm stem

to fit 300mm stem

to fit 100mm stem

Total: $0.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

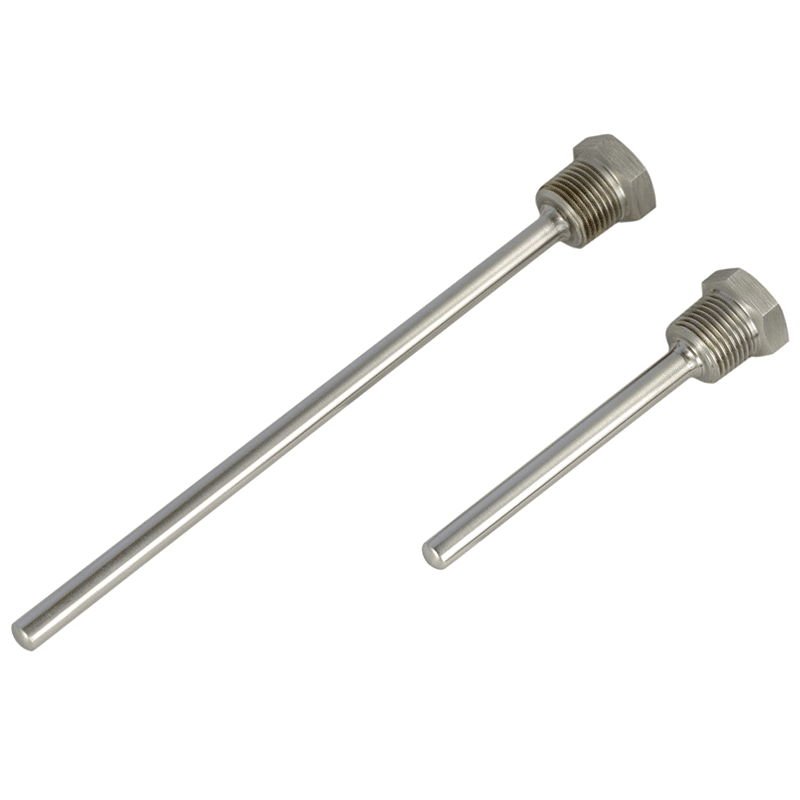

P1 – Pocket Fabricated construction.

  • Stem: Diameter: OD 9.5mm, ID 7mm.
  • Lengths: 70, 120, 170, 220, 270mm.
  • 316 Stainless steel.
  • Process connection: 1/2″BSPT.
  • Instrument connection: 1/4″BSPP.

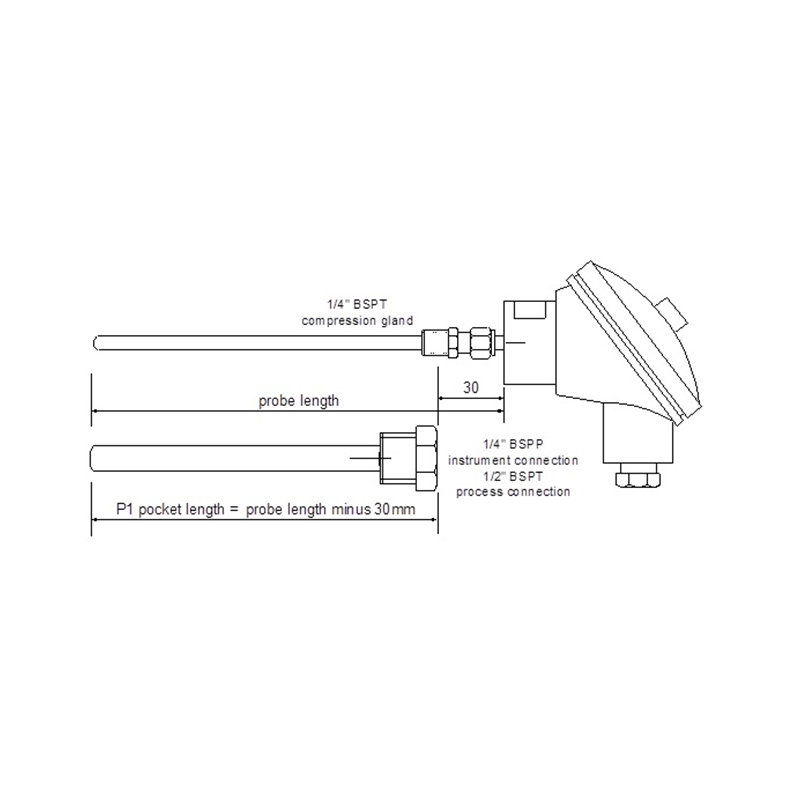

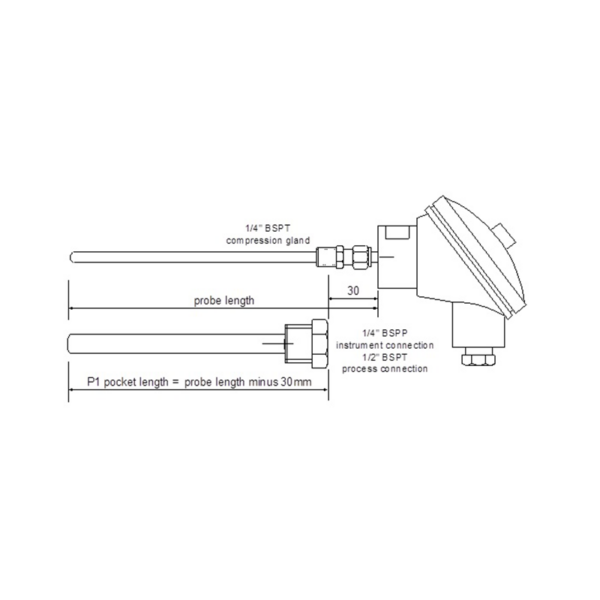

The P1 pocket length, relative to the probe length, using a compression gland for probe support. See all our range of compression glands here.

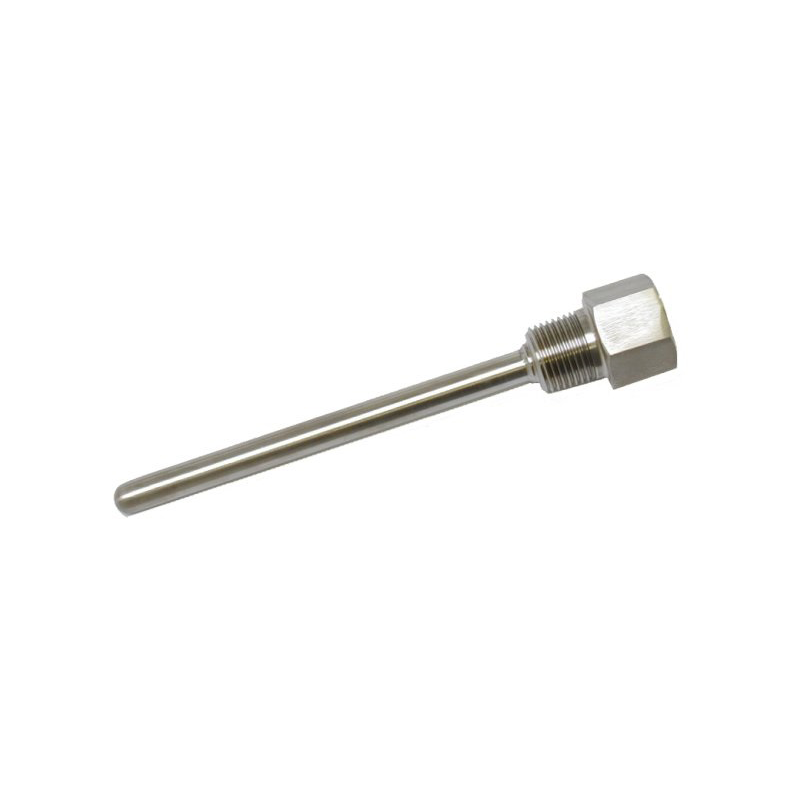

P2 – Pocket Fabricated construction.

  • Stem: Diameter: OD 9.5mm, ID 7mm.
  • Lengths: 120, 170, 220, 270mm.
  • 316 Stainless steel.
  • Process connection: 1/2″BSPT.
  • Instrument connection: 1/2″BSPP.

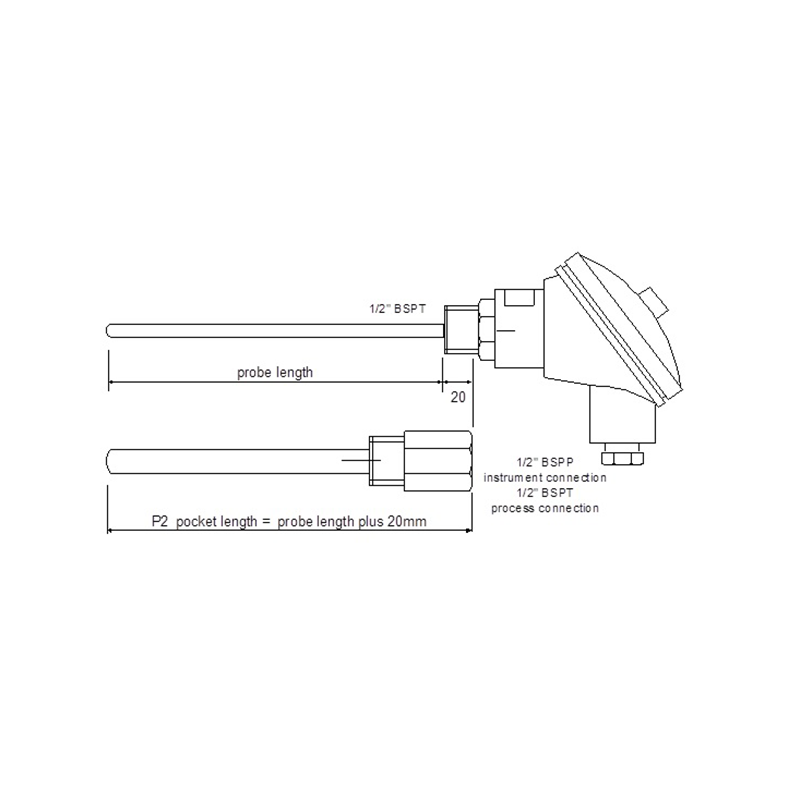

The P2 pocket length, relative to the probe length, using the probe’s process thread for support.
