The MTH/MTHP Series Thermocouples with Protection Head are designed for versatility and durability, available with protection head materials such as lightweight aluminium, resilient polypropylene, or robust cast stainless steel. The sheath options further enhance their adaptability, with choices including high-temperature 310 stainless steel, corrosion-resistant Inconel 600, the nickel-based Nicrobell, or advanced ceramic materials. For precision measurement, the head can be equipped with either the XU2HI or dTRANS T07 models upon request. Capable of accurately reading temperatures across an extensive range from -270°C to +1600°C, these sensors are engineered to meet the demands of a wide array of industrial applications.
MTH/MTHP Series – Thermocouples with Protection Head
Mineral Insulated Thermocouples with Protection Head and Process Fitting
MTH/MTHP Series Features
- K, J, T and N Thermocouple types
- Temperature ranges from -270 to +1600°C
- Isolated and bonded hot junctions
- Various sheath materials for different requirements (310SS, Inconel 600, Nicrobell, Ceramic)
- Sheath diameters from 3.0mm to 10.8mm
- Various protection heads: Aluminium, Polypropylene (Add $5.00), Cast Stainless Steel (Add $148.00)
- Optional head mount transmitters: XU2HI (Add $230.00) and dTRANS T07-B-Ex HART®/Ex (Add $915.00)

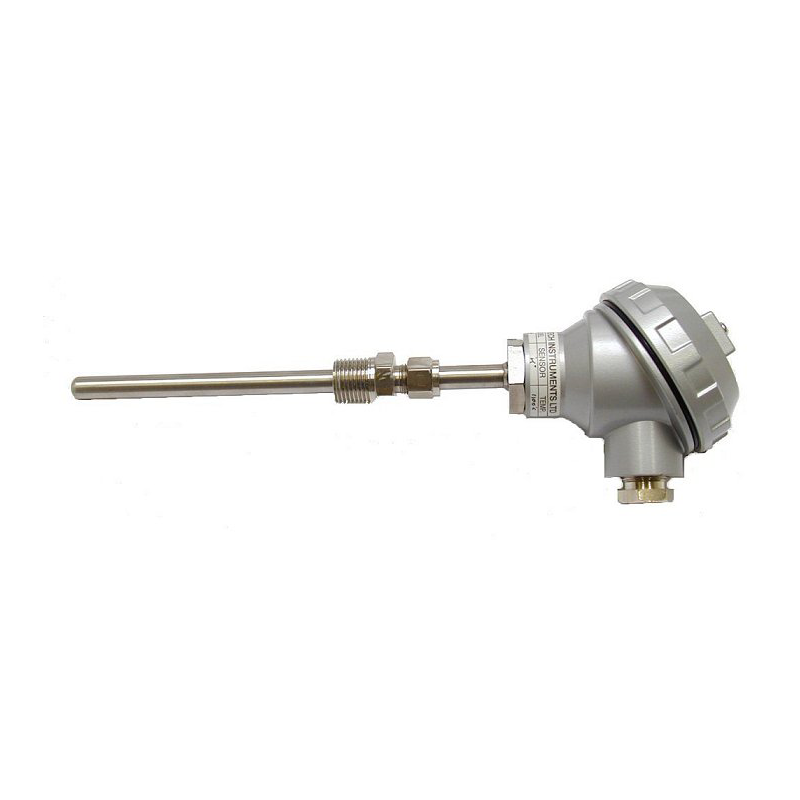

Boiler Probes
- K, J, T and N Thermocouple types
- Large Aluminium Head
- Complete with 1/2”BSPT Compression Gland
- Standard 10.8mm diameter
- Various sheath materials for different requirements (310SS, Inconel 600, Nicrobell, Ceramic)
Brand: INTECH
Usually in stock
See Temperature Tables for Thermocouple HERE
Request a quoteScroll down for product range
| MTH/MTHP SERIES | |||||||||
| Technical Specifications and Ordering Information | |||||||||
| Item | Code | Specification | |||||||
| Model | MTH- | Mineral Insulated Thermocouple with Head | |||||||
| MTHP- | Mineral Insulated Thermocouple with Head and 1/2″ BSP Process Fitting | ||||||||
| Hot Junction | I | Isolated Junction (Standard) | |||||||
| B | Bonded Junction | ||||||||
| Outer Diameter* | 3.0 | Millimetres | |||||||
| 4.5 | Millimetres | ||||||||
| 6.0 | Millimetres | ||||||||
| 10.8 | Millimetres | ||||||||
| X- | Other | ||||||||
| Calibration | K | Thermocouple Type K (-270~1260°C) | |||||||
| J | Thermocouple Type J (-210~750°C) | ||||||||
| T | Thermocouple Type T (-270~370°C) | ||||||||
| N | Thermocouple Type N (-270~1300°C) | ||||||||
| 2K | Duplex Thermocouple Type K | ||||||||
| 2J | Duplex Thermocouple Type J | ||||||||
| 2T | Duplex Thermocouple Type T | ||||||||
| 2N | Duplex Thermocouple Type N | ||||||||
| Sheath Material | 310- | Stainless Steel (K) 1100°C | |||||||
| 600- | Inconel ® (K) 1200°C | ||||||||
| NCB- | Nicrobell ® (K) 1250°C (Duplex available on 6.0mm Sheath) |
||||||||
| 610- | Ceramic (Max 1200°C) | ||||||||
| 710- | Ceramic (Max 1600°C) | ||||||||
| X- | Other | ||||||||
| Sheath Length | xxx- | Millimetres* | |||||||
| Protection Head | SA- | Small Aluminium | |||||||
| LA- | Large Aluminium | ||||||||
| LP- | Large Polypropylene (White) | ||||||||
| SS- | Cast Stainless Steel | ||||||||
| X- | Other | ||||||||
| * Sheath Length from Sheath tip to bottom of hex on process fitting. | |||||||||
| ** Flame Proof head must be used with a Barstock Thermowell. | |||||||||
|
Model No. Example: MTH-I6.0K310-200-LA (Mineral Insulated Thermocouple with Head, 6.0mm diameter, Type K, Stainless Steel, 200mm sheath length, large aluminium head). |
|||||||||
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

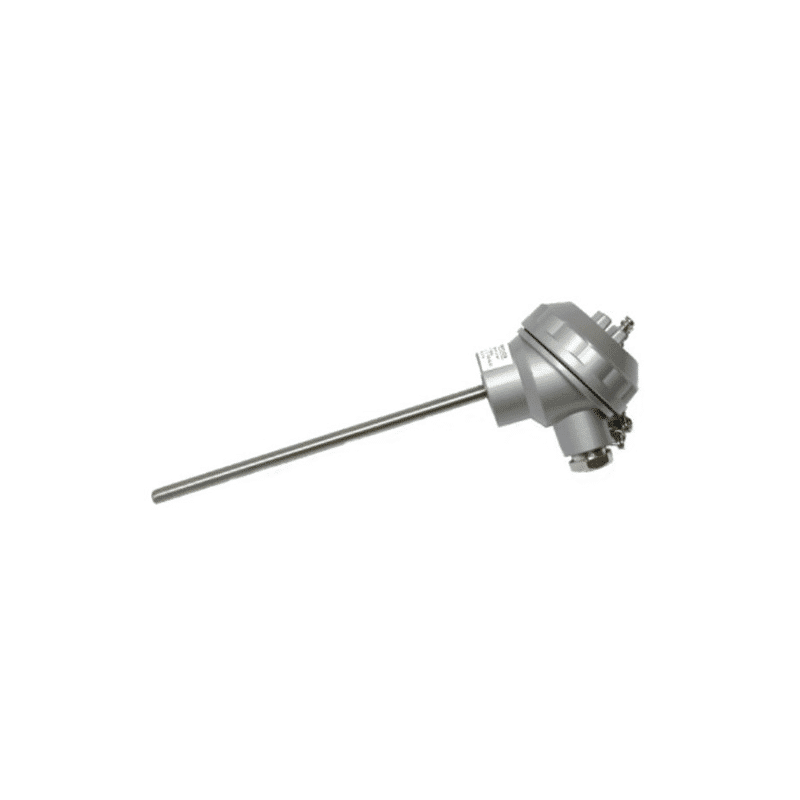

| MTH-I6.0K310-100-SA | 6mm x 100mm, SS, Type K, Small Aluminium Head Thermocouple Probe | $195.00 | |||||||||
| MTH-I6.0K310-150-SA | 6mm x 150mm, SS, Type K, Small Aluminium Head Thermocouple Probe | $195.00 | |||||||||
| MTH-I6.0K310-200-SA | 6mm x 200mm, SS, Type K, Small Aluminium Head Thermocouple Probe | $195.00 | |||||||||
| MTH-I6.0K310-250-SA | 6mm x 250mm, SS, Type K, Small Aluminium Head Thermocouple Probe | $195.00 | |||||||||
| MTH-I6.0K310-300-SA | 6mm x 300mm, SS, Type K, Small Aluminium Head Thermocouple Probe | $195.00 | |||||||||
| MTH-I6.0K310-350-SA | 6mm x 350mm, SS, Type K, Small Aluminium Head Thermocouple Probe | $195.00 | |||||||||
| MTH-I6.0K310-400-SA | 6mm x 400mm, SS, Type K, Small Aluminium Head Thermocouple Probe | $202.00 | |||||||||
| MTH-I6.0K310-500-SA | 6mm x 500mm, SS, Type K, Small Aluminium Head Thermocouple Probe | $207.00 | |||||||||

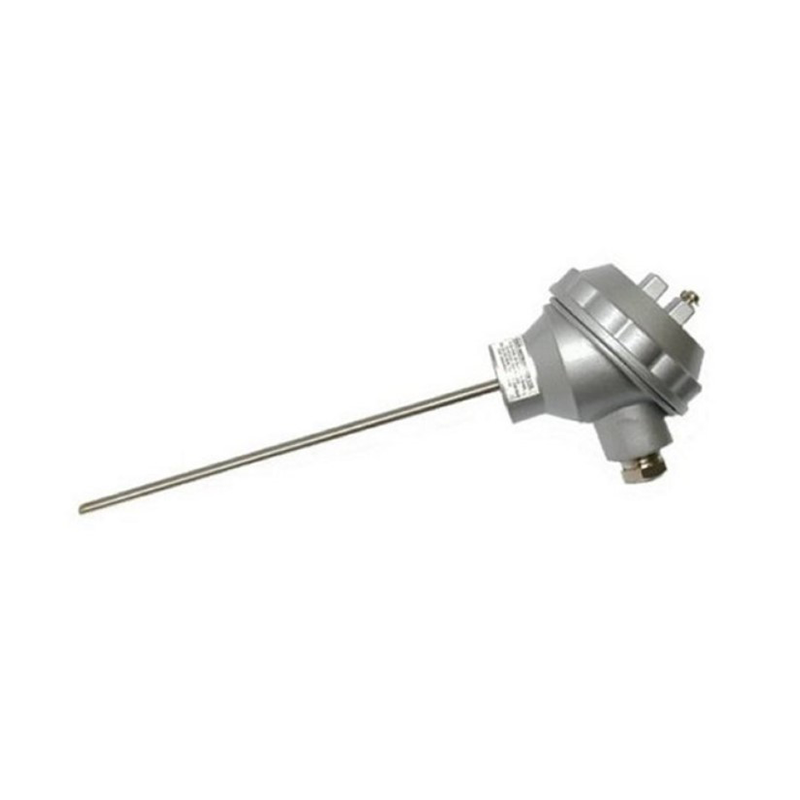

| MTH-I6.0K310-xxx-LA | 6mm SS, Type K, Large Aluminium Head Thermocouple Probe (100, 150, 200, 250 and 300mm lengths available) | $215.00 | |||||||||

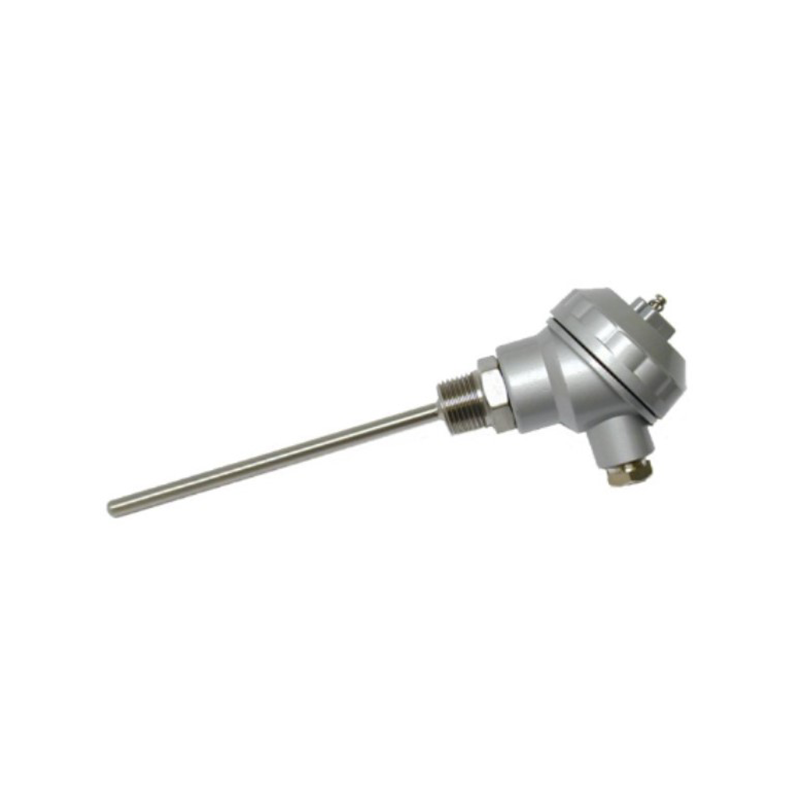

| MTHP-I6.0K310-100-SA | Thermocouple Probe with Protection Head, 6mm x 100mm, SS, Type K, Small Aluminium head, 1/2″ BSP | $206.00 | |||||||||

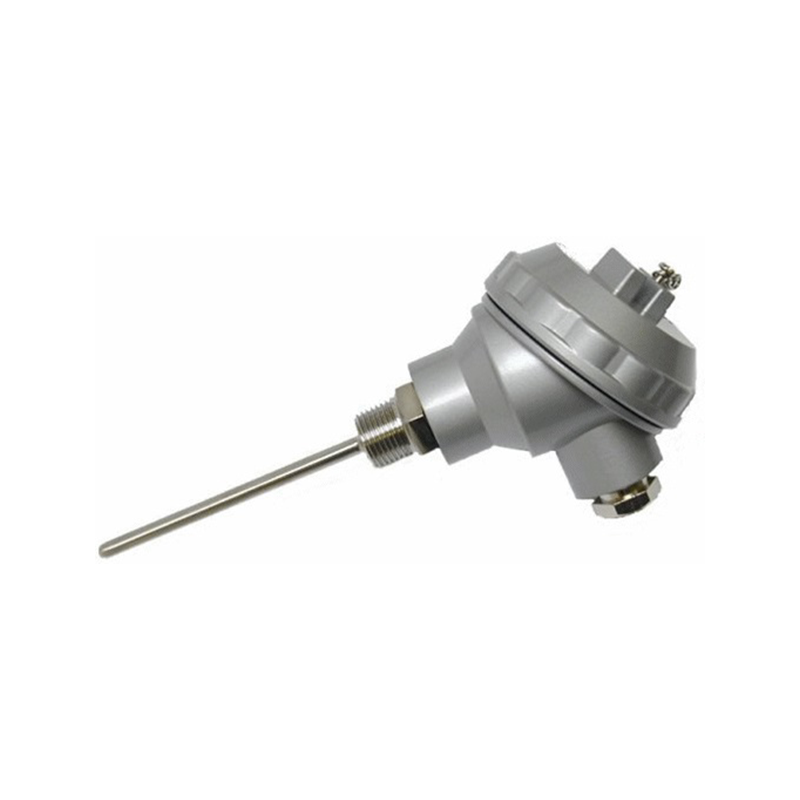

| MTHP-I6.0K310-100-LA | 6mm x 100mm, SS, Type K, Large Aluminium Head, 1/2″ BSP Thermocouple Probe | $216.00 | |||||||||
| MTHP-I6.0K310-150-SA | Thermocouple Probe with Protection Head, 6mm x 150mm, SS, Type K, Small Aluminium head, 1/2″ BSP | $206.00 | |||||||||
| MTHP-I6.0K310-150-LA | 6mm x 150mm, SS, Type K, Large Aluminium head, 1/2″ BSP Thermocouple Probe | $216.00 | |||||||||
| MTHP-I6.0K310-200-SA | Thermocouple Probe with Protection Head, 6mm x 200mm, SS, Type K, Small Aluminium head, 1/2″ BSP | $206.00 | |||||||||
| MTHP-I6.0K310-200-LA | 6mm x 200mm, SS, Type K, Large Aluminium head, 1/2″ BSP Thermocouple Probe | $216.00 | |||||||||
| MTHP-I6.0K310-250-SA | Thermocouple Probe with Protection Head, 6mm x 250mm, SS, Type K, Small Aluminium head, 1/2″ BSP | $206.00 | |||||||||
| MTHP-I6.0K310-250-LA | 6mm x 250mm, SS, Type K, Large Aluminium head, 1/2″ BSP Thermocouple Probe | $216.00 | |||||||||
| MTHP-I6.0K310-300-SA | Thermocouple Probe with Protection Head, 6mm x 300mm, SS, Type K, Small Aluminium head, 1/2″ BSP | $206.00 | |||||||||
| MTHP-I6.0K310-300-LA | 6mm x 300mm, SS, Type K, Large Aluminium head, 1/2″ BSP Thermocouple Probe | $216.00 | |||||||||
| MTHP-I6.0K310-350-SA | Thermocouple Probe with Protection Head, 6mm x 350mm, SS, Type K, Small Aluminium head, 1/2″ BSP | $206.00 | |||||||||
| MTH-I10.8K310-250-LA-S | 10.8mm x 250mm, Type K, Large Aluminium head, SS 1150°C Boiler Probe, complete with S13 Compression Gland | $272.00 | |||||||||
| MTH-I10.8K310-350-LA-S | 10.8mm x 350mm, Type K, Large Aluminium head, SS 1150°C Boiler Probe, complete with S13 Compression Gland | $288.00 | |||||||||
| MTH-I10.8K310-450-LA-S | 10.8mm x 450mm, Type K, Large Aluminium head, SS 1150°C Boiler Probe, complete with S13 Compression Gland | $318.00 | |||||||||
| MTH-I10.8K600-250-LA-S | 10.8mm x 250mm, Type K, Large Aluminium head, Inconel 1200°C Boiler Probe, complete with S13 Compression Gland | $332.00 | |||||||||
| MTH-I10.8K600-350-LA-S | 10.8mm x 350mm, Type K, Large Aluminium head, Inconel 1200°C Boiler Probe, complete with S13 Compression Gland | $363.00 | |||||||||
| MTH-I10.8K600-450-LA-S | 10.8mm x 450mm, Type K, Large Aluminium head, Inconel 1200°C Boiler Probe, complete with S13 Compression Gland | $388.00 | |||||||||
| MTH-I10.8KNCB-250-LA-S | 10.8mm x 250mm, Type K, Large Aluminium head, Nicrobell 1300°C Boiler Probe, complete with S13 Compression Gland | $442.00 | |||||||||
| MTH-I10.8KNCB-350-LA-S | 10.8mm x 350mm, Type K, Large Aluminium head, Nicrobell 1300°C Boiler Probe, complete with S13 Compression Gland | $462.00 | |||||||||
| MTH-I10.8KNCB-450-LA-S | 10.8mm x 450mm, Type K, Large Aluminium head, Nicrobell 1300°C Boiler Probe, complete with S13 Compression Gland | $540.00 | |||||||||
| MTH-MISC | MTH Custom Made Probe – If you need something that is not here. | $0.00 | |||||||||
* All Boiler Probes come complete with Stainless Compression Fitting.
Notes: – The above covers the more common Thermocouple probes. We can supply probes to your particular application.
– Probe Parts are also available – please enquire.
Intech is our own brand of products, for all aftersales and technically support please contact us.
