| TYPE | LPI-D | |
| Input | Voltage | 10mVdc to 150Vdc and Bipolar (LPI-D-P is Field Programmable) |
| Min Input Resistance = 200kΩ | ||
| Max Over-range = 170Vdc Continuous | ||
| Current | 200µAdc to 100mAdc and Bipolar (LPI-D-P is Field Programmable) | |
| Input Resistance = 25Ω | ||
| Max Overange = 120mAdc Continuous | ||
| Damping | 3 Second Selectable with H1 (LPI-D-P Only) | |
| Output | mA | 2 wire 4~20mA (Loop Powered) |
| mV Test | 40~200mV ±1% @ 4~20mA, Other Test Voltages Available e.g. 1~5V Note: mV Test Increases Power Supply & Decreases Load Resistance |
|
| Power Supply | 8~33Vdc | |
| Supply Voltage Sensitivity | <±0.005%/V FSO | |
| Output Load Resistance | 800Ω @ 24Vdc (50Ω/V Above 8Vdc) | |
| Maximum Output Current | Limited to <28mA | |
| Accurate to | <±0.1% FSO Typical | |
| Linearity & Repeatability | <±0.1% FSO Typical | |
| Ambient Drift | <±0.02%/C FSO Typical | |
| Noise Immunity | 125dB CMRR Average (2.0kVac RMS Limit) | |
| EMC Compliances | Emissions EN 55022-A, Immunity EN 50082-1, <1% Effect FSO Typical | |
| Isolation Test Voltages | 2000Vac/dc Input to Output for 1min | |
| Response Time | 200msec Typical (10 to 90% 50msec Typical) | |
| Operating Temperature | 0°C~70°C | |
| Storage Temperature | -20°C~80°C | |
| Operating Humidity | 5~85%RH Max, Non-Condensing | |
| Dimensions and Construction | L=79, W=22.5, H=85mm. Polyamide Thermoplastic Rail Mount Enclosure | |

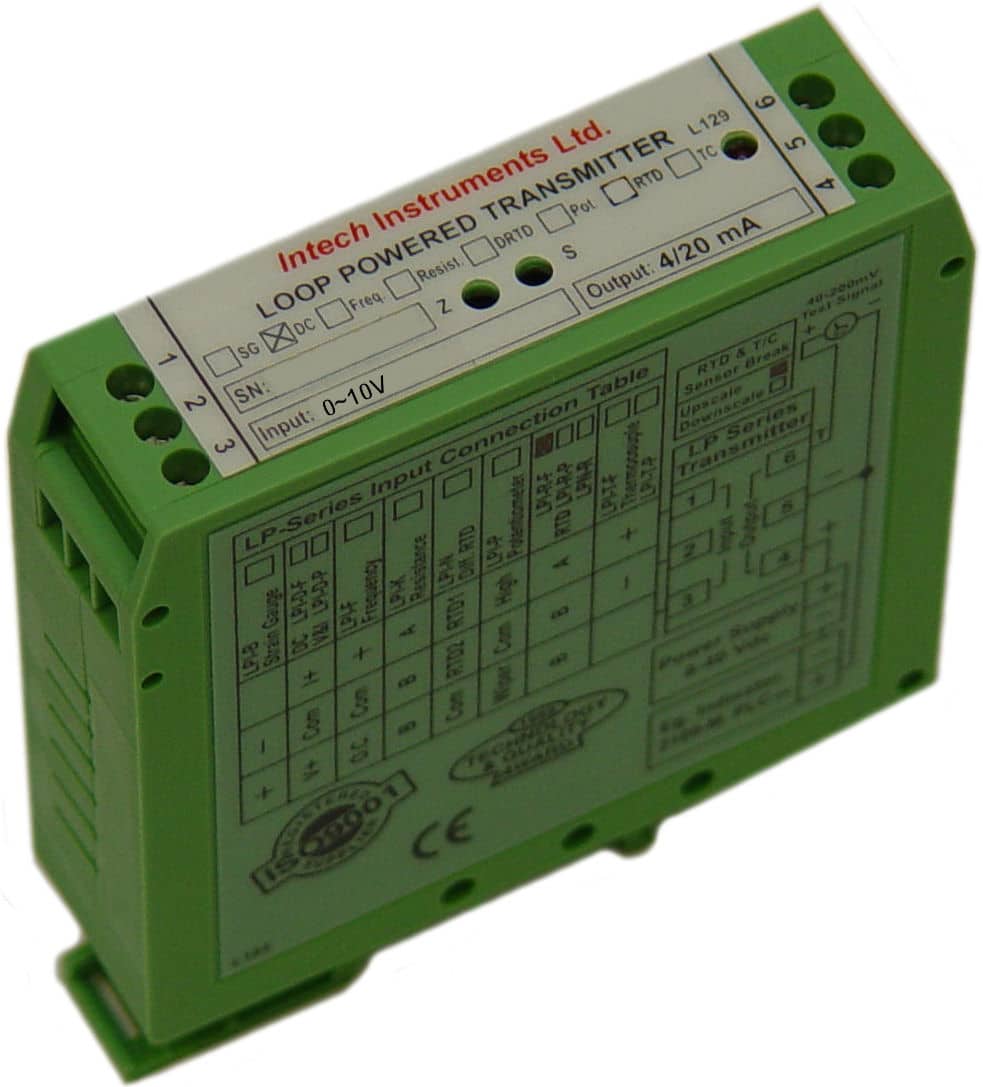

LPI-D – DC Transmitter
DC to DC Isolating Signal Transmitter
LPI-D Features
- Field programmable Bi-Polar input ranges (Model P)
- Isolated input to output 2.0kV
- High accuracy
- 40~200mV output test signal
- LED indication of loop current
- Easy to install
- Compact DIN rail mount enclosure
- Available standard or special calibration
- Reverse polarity protection
- LPI-D-F: Fixed input ranges available: 4~20mA, 0~20mA, 0~5Vdc, 1~5Vdc, 2~10Vdc, 0~10Vdc.
- LPI-D-P: Field Programmable input ranges from 0~10mV to 150V and from 0~200uA to 100mA.
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LPI-D-F-X | Standard 4~20mA Input; Fixed Input Range Calibration | $297.00 | |||||||||
| LPI-D-F-K | 0~10V Input, Fixed Input Range Calibration | $297.00 | |||||||||
| LPI-D-P-X | Standard 4~20mA Input; Programmable Input Range Calibration | $362.00 | |||||||||
Other ranges available on request
All prices are in NZ$, and GST exclusive and are subject to change without notice.Intech is our own brand of products, for all aftersales and technically support please contact us.
