Programmable digital counter H7K-52-5U
Click to enlarge

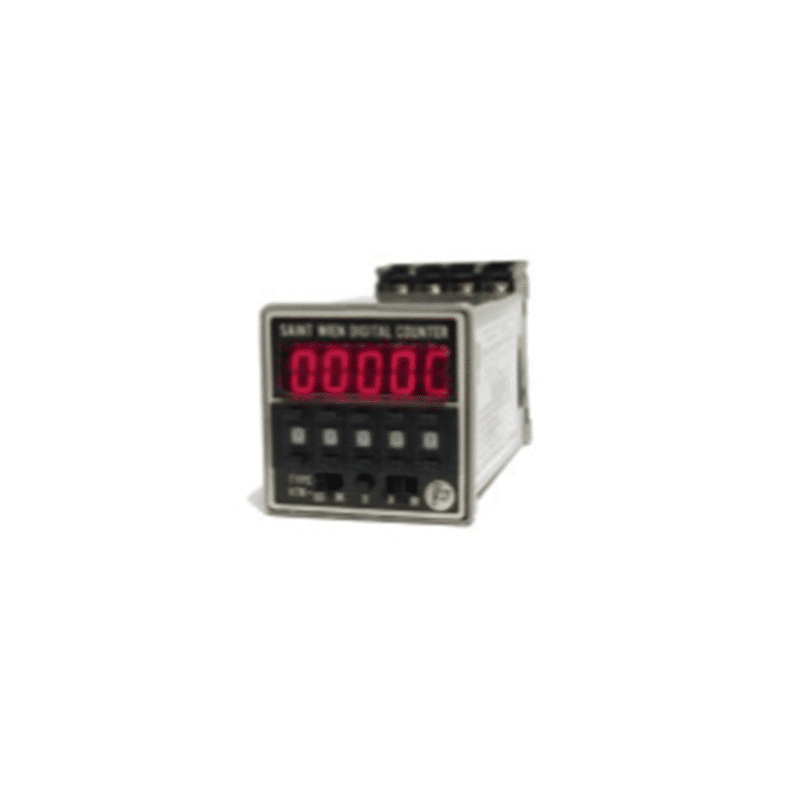

H7K-52-5U – Programmable Digital Counter.

Brand:

$250.00 Excl. GST

48 x 48mm, 5 digit LED.

Total: $250.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

H7K-52-5U is a microcomputer based miniature digital counter suitable for both surface and flush mounting.

Features:

  • One-chip microcomputer based Miniature Digital Counter.
  • Normal is Up count. Down count is available upon request.
  • Front panel with30 [30] or 3K [3K] cps counting speed select SW, Auto [A] or Manual [M] reset select SW. Auto reset time (one shot) adjustable 0.1-4S Manual reset [R] push button SW is also available.
  • Outstanding noise immunity with Schmitt trigger circuit applied to the input terminal. Software de-bouncing to 30 cps to SW or contact input.
  • Power off reset or with suffix of [M] is EEPROM backup memory available
  • Compact size DIN 48x48mm, for both surface & flush mounting

Technical Specs

TYPEH7K-52-5U
Digits:5 digit LED.                   1 presets.
Power supply:220Vac.
Output:Relay SPDT. 3A, 250Vac.
Sensor power:12Vdc, 20mA.
Counter………..
Mode:Up count.
Reset:Panel, Auto/man.
Input:Contact.                  30 Hz max.
Solid state.              3k Hz max.
